Wrangler TJ ARB Air Locker Install Part 2

With the lockers and gears installed into the axles the next step was to start putting everything together. Since this project included a 3″ lift from Teraflex it all happened at once. The control arms were installed and the axles lined up and mounted to them. From there the springs, shocks and other components were installed.

Get personalized content recommendations and answers drawn from our website. Simply type your question or topic of interest, and our AI assistant will help you find relevant articles, tips, and insights. You can also have a natural conversation to explore topics in more depth.

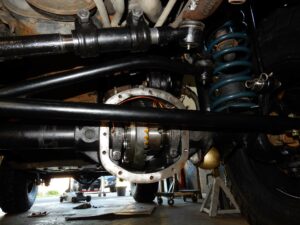

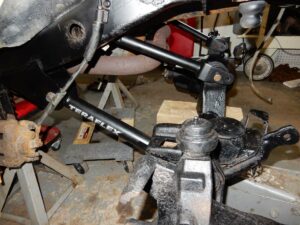

Axles mounted to the new control arms

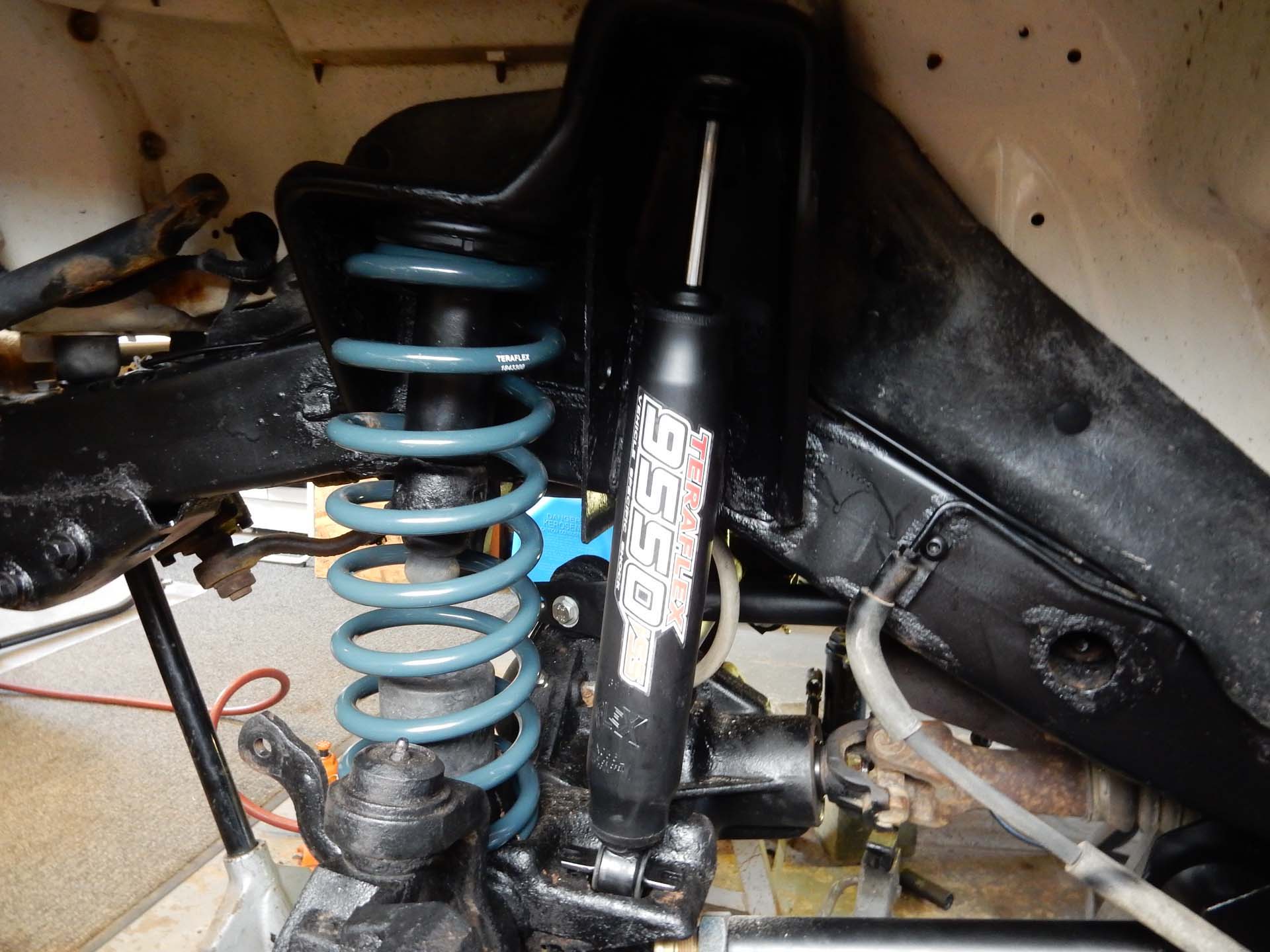

Springs and shocks installed

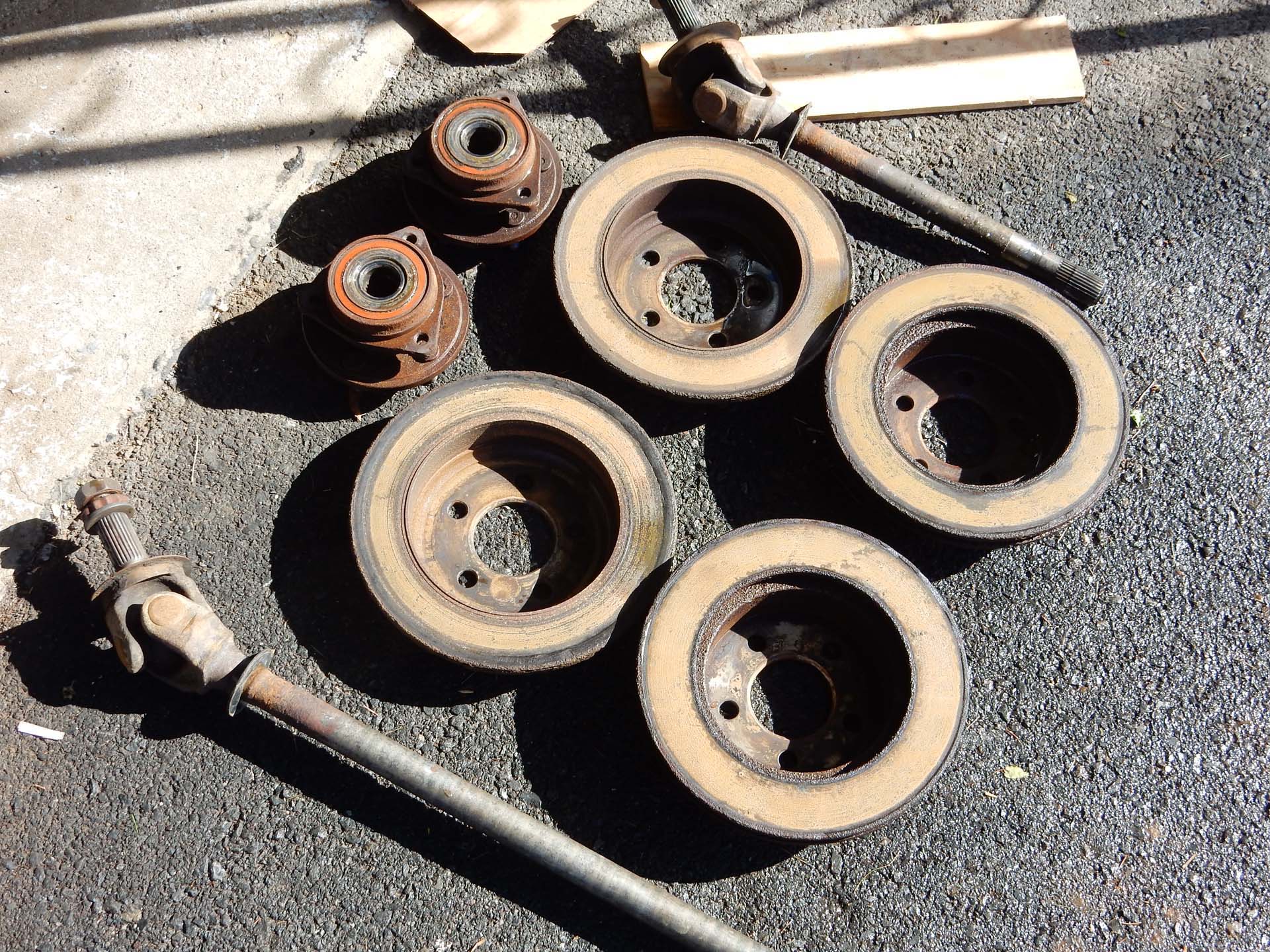

Front axleshafts, rotors, and bearings

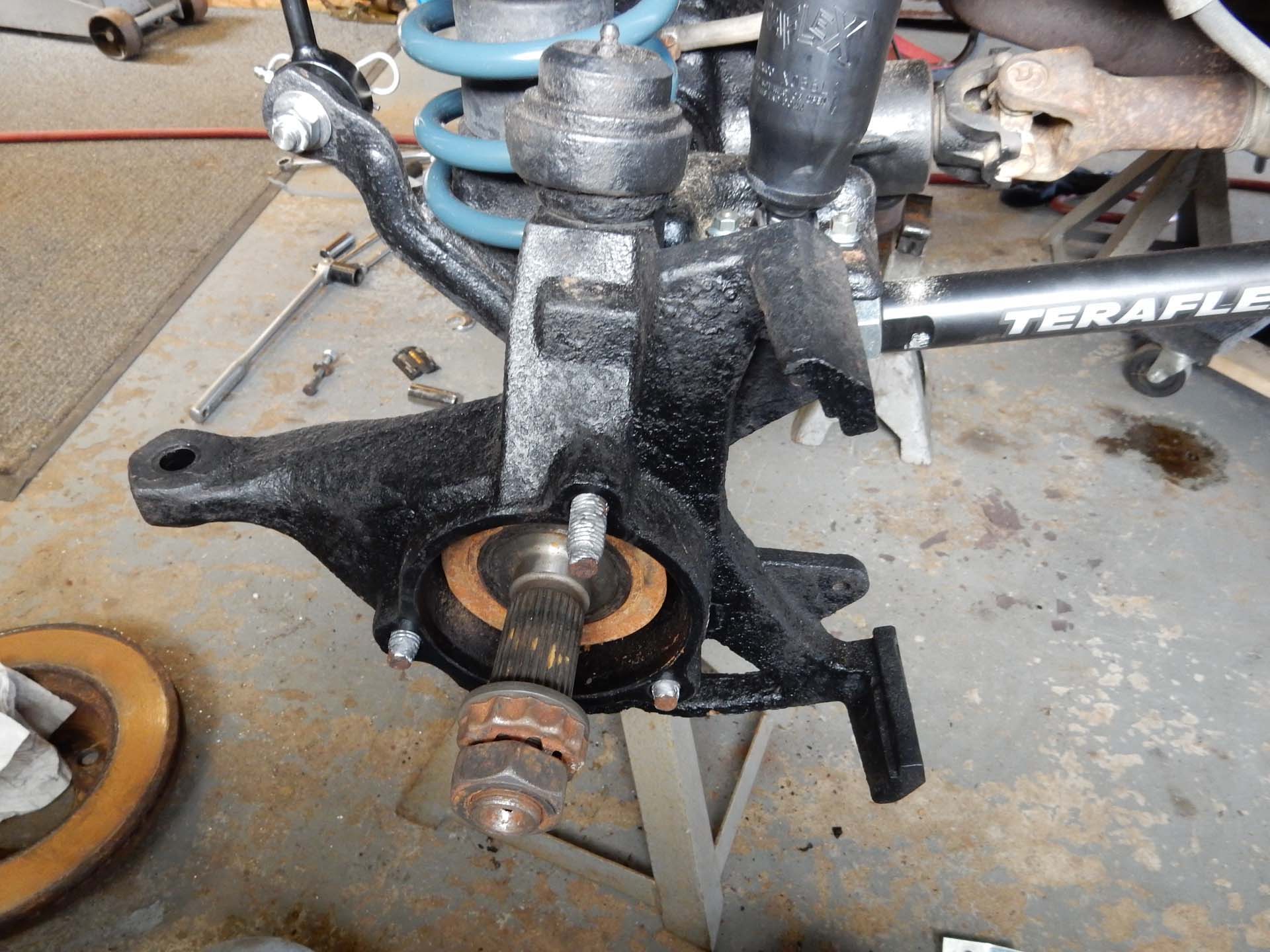

Front assembly

Steering gear installed

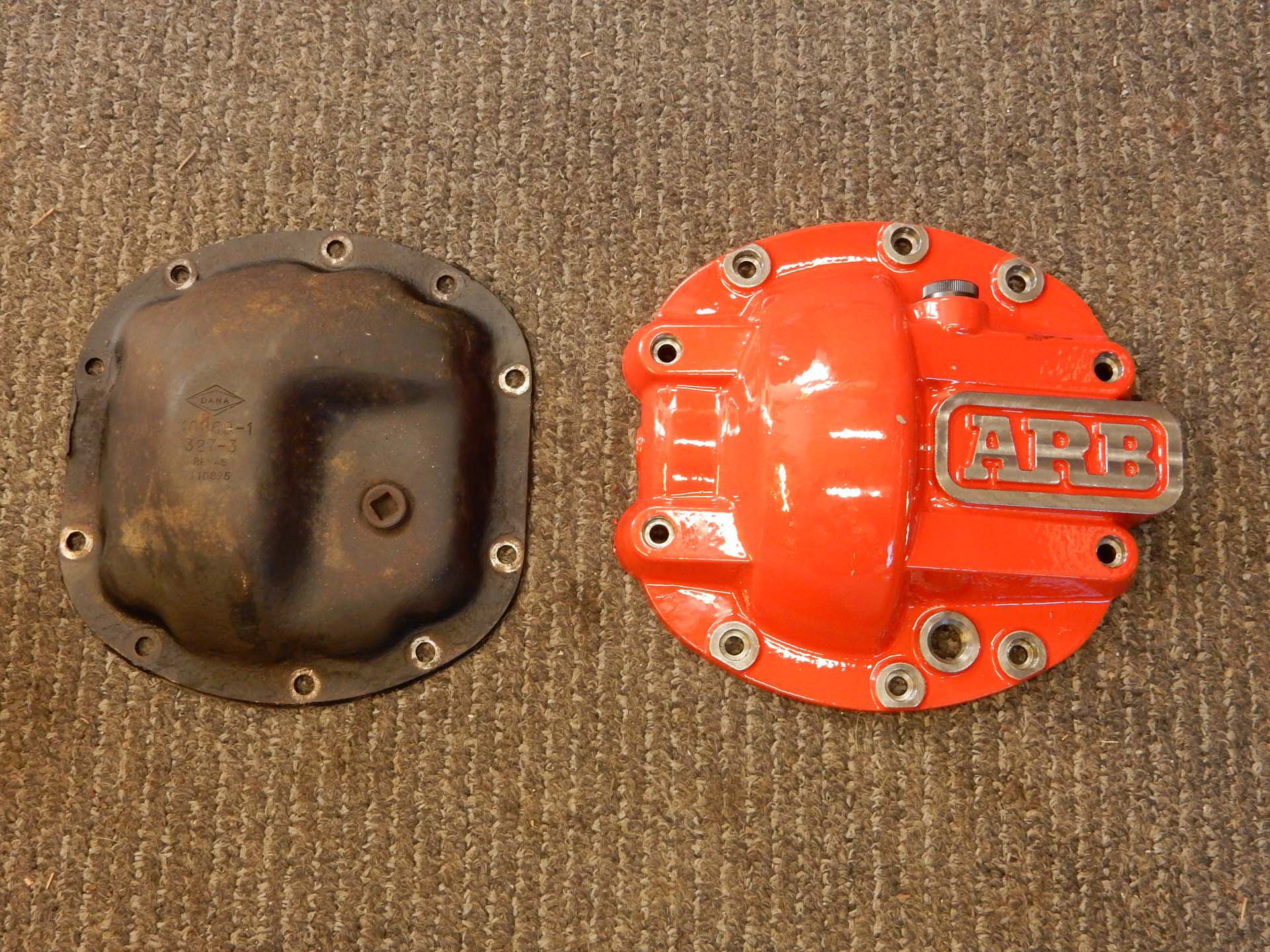

Heavy duty ARB differential cover

The Currie steering gear and Teraflex sway bar disconnects were installed followed by Heavy Duty ARB differential covers. These bright red covers stick out nice under the Jeep and the thick construction provides great protection to the gears and differential.

After all the components are back together gear oil is added to both differentials and this part of the job is complete.

At this point many hours of work has passed but we are far from finished. Some interesting things popped up along the way in this project, notably the rear parking brakes were a disaster and required a full rebuild (more on that coming up).

The next phase of the Air Locker install involves installing the Air Compressor, Air Lines and Switches. All of that coming up soon.

Wrangler TJ ARB Air Locker Install Part 1

jeepfan.com 2004 TJ Unlimited Project
