Driveline Angles – Part 2

CHECKING DRIVESHAFT ANGLES IN THE VERTICAL OR HORIZONTAL PLANE

WARNING:
Rotating shafts can be dangerous. You can snag clothes, skin, hair, hands, etc. This can cause serious injury or death. Do not work on a shaft (with or without a guard) when the engine is running

Use the following procedure to check driveshaft angles for proper u-joint operating angles.

  1. Inflate all tires to the pressure at which they are normally operated. Park the vehicle on a surface which is as level as possible both from front to rear and from side to side. Do not attempt to level the vehicle by jacking up the front or rear axles. Shift the transmission into neutral and block the front tires. Jack up a rear wheel.
  2. Rotate the wheel by hand until the output yoke on the transmission is vertical, and lower the jack. This simplifies measurement later. Check driveshaft angles in the same loaded or unloaded condition as when the vibrations or noise occurred. Always try to check driveline angles in both loaded and unloaded conditions.
  3. To determine driveshaft angles, a spirit level protractor or Spicer Anglemaster ® II Electronic Driveline AnglemasterInclinometer is required. On a protractor, when angles are read from 0 degree mark (horizontally – on the driveshaft) record and use the angle shown. When angles are read from either of the 90 degree marks (vertically – on the flange) do not record the angle shown on the protractor since the 90 degree marks must be understood to be the same as 0 degrees on the horizontal plane. Thus, if a vertical reading is 85 degrees, the angle being measured is 5 degrees (90 – 85 = 5 degrees). To use the Spicer Anglemaster ® II Electronic Driveline Inclinometer, simply place the sensor on the component to be measured. A display module will show what the angle is and in which direction it slopes. We offer Spicer Anglemaster ® II Electronic Driveline Inclinometer for $300.00. If using a protractor, all angles should be read within 0.25 degree and they should be measured with the protractor held plumb on a clean flat surface. The Spicer Anglemaster ® II Electronic Driveline Inclinometer is automatically accurate to within 1/10 of 1 degree. Always measure the slope of the drivetrain going from front to rear. A component slopes downward if it is lower at the rear than the front. A component slopes upward when it is higher at the rear than it is in front.
  4. Check and record the angle on the main transmission. This reading can be taken on the end yoke lug, with the bearing assembly removed or on a flat surface of the main transmission parallel or perpendicular to the output yoke lug plane. Record your readings on a sketch.
  5. Now check the drive shaft angle between the transmission and axle or forward axle. On short tube length driveshafts, check the angle of the driveshaft on either the tube or slip yoke lug with the bearing assembly removed. On long tube length driveshafts, measure the angle on the tube at least 3″ away from the circle welds or at least 1″ away from any balance weights. Be sure to remove any rust, scale or sound deadening compounds from the tube to obtain an accurate measurement.
  6. Check the forward axle input yoke angle by removing a bearing assembly and measuring the angle on the yoke lugs or on a flat surface of the angle housing parallel or perpendicular to the input yoke lug plane.
  7. If applicable, measure the output yoke angle of the forward axle, the angle of the tandem driveshaft between the forward axle and the rear axle, and the rear axle input yoke angle.

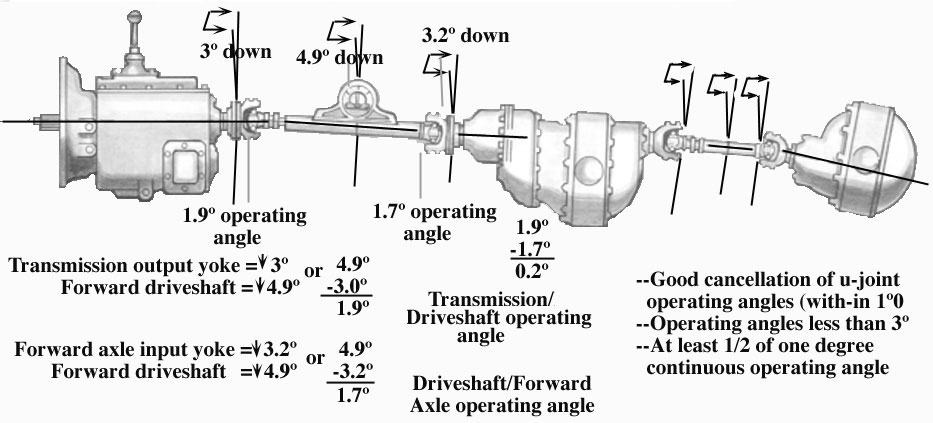

With all of the angles recorded, complete a drawing as shown below. There are no u-joint operating angles in your drawing at this time, jut the slope of the components and their direction. To determine u-joint operating angles, simply find the difference in the slopes of the components.

When the slopes are in the Same direction on two connected components, Subtract the smaller number from the larger to find the u-joint operating angle. When the slopes are in the Opposite direction on two connected components, Add the measurements to find the u-joint operating angle.

Now compare the u-joint operating angles on your drawing to the rules for ideal operating angles mentioned above.

Next Page – Part 3
