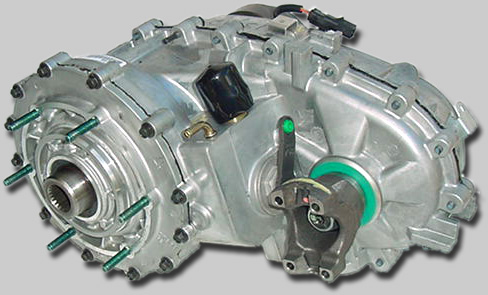

The Jeep NP231 transfer case, used in everything from YJs to TJs and XJs is a lightweight, reliable part of the 4WD puzzle. But when you start throwing serious tires, lockers, and steep trails at your Jeep, its limits can become obvious. Enter the NV241OR Rock-Trac transfer case, Jeep’s heavy-duty, gear-driven crawler that comes factory in Jeep Rubicon models since 2003 with the exception of Rubicons with a full time transfer case. With a 4:1 low range and stronger internals, it’s a serious upgrade over the 2.72:1 NP231. But dropping one into a Jeep that wasn’t born a Rubicon takes some planning. Here’s what’s involved in the swap and what you need to watch out for.
Why a NV241OR Swap?
The NV241OR is the real deal when it comes to off-road crawl capability. Its main advantages over the NP231 include:
- 4.0:1 Low Range (vs. 2.72:1 in the 231)
- 32-spline Output Shaft (stronger than the 27-spline on most NP231s)
- Factory Slip Yoke Eliminator Design (no additional SYE kit needed)
- Heavy-Duty Gearset and Case Housing
- Fixed Yoke Rear Output
Perfect for crawling, rock gardens, or tearing out a stump. To note, in the past a 4:1 kit for the NP231 was available from a few manufacturers. The most popular was the Teralow kit from Teraflex but that’s been discontinued. In present day the NV241OR swap is really the only option unless you want to go to a serious upgrade of an Atlas transfer case.
The Swap at a Glance

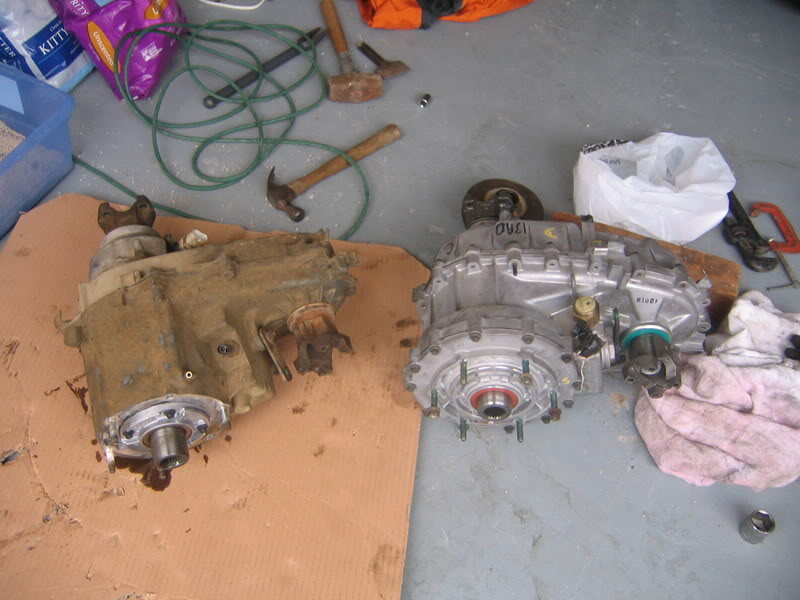

Swapping an NV241OR into a Jeep that originally had an NP231 (e.g., most TJs, YJs and XJs) is not plug-and-play, but it’s straightforward with the right planning. This article is a guide to get you started, details will vary from vehicle to vehicle. Here’s the main overview:
| Item | Notes |
|---|---|
| Transmission Input | Ensure correct spline count and length |
| Driveshafts | Rear shaft must be shortened or replaced |
| Shifter Linkage | Custom or adapted solution often needed |
| Speedometer Signal | NV241OR has no mechanical speedo drive |
| Crossmember Fitment | May need adjustment for mount alignment |
| Skid Plate Clearance | NV241OR is larger—check fitment closely |
Key Compatibility Concerns
1. Input Shaft
NP231s came with different input shaft spline counts and lengths depending on the transmission. Most commonly:
- 21-spline for AX-5 and older setups
- 23-spline short for AX-15, NV3550, and some autos
The NV241OR is 23-spline but comes with a short input. If your NP231 had a long input shaft, you’ll need to either:
- Swap the input gear from your old NP231 into the NV241OR (not ideal—limits strength)
- Confirm compatibility with your transmission or run a spacer
2. Driveshaft Modifications
The NV241OR has a fixed rear yoke and longer output housing, so your rear driveshaft will be too long. Most TJ owners swap to a shorter double-cardan rear shaft (same type you’d use with an SYE kit). Front driveshaft usually bolts up, but check for clearance and operating angle due to the case’s slightly different clocking.
3. Shifter Assembly
The factory NP231 shifter linkage often won’t work as-is. You can:
- Modify the stock shifter bracket

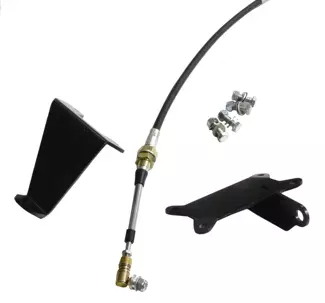

- Run a cable shifter kit (like Novak’s cable shifter)
- Fabricate your own setup
Cable shifters give the best feel and flexibility for positioning.
4. Speedometer Signal

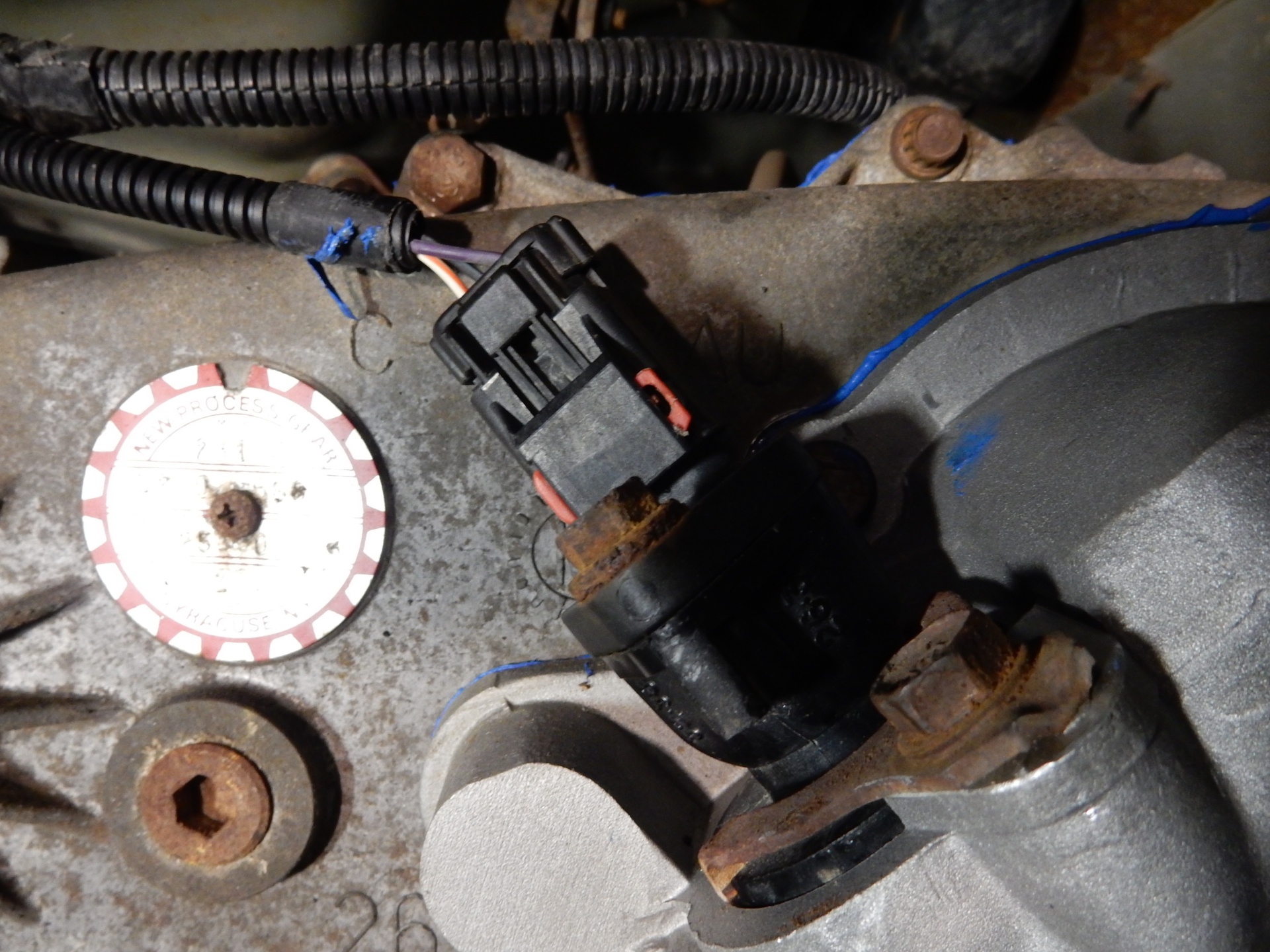

The NV241OR does not use a mechanical speedo gear like early NP231s. It uses a tone ring and VSS (Vehicle Speed Sensor) that outputs an electronic signal.
- TJs (2001–2006) and newer XJs can typically read this signal with no issues
- Earlier models with mechanical speedometers (YJ, early XJ) will need a signal converter or swap to an electric gauge setup
5. Clearance and Skid Plate Fit
The NV241OR is larger and beefier than the NP231. Most TJs can fit it with stock or aftermarket skid plates, but:
- You may need to grind or notch the skid plate
- Check shifter linkage clearance
- May require moving the transmission mount location slightly
Potential Problems During the Swap
Even with the right parts, a few trouble spots come up regularly:
- Mismatch in input shaft spline count or length – always check before bolting it up
- Driveshaft binding – especially in short wheelbase Jeeps with lifts
- Interference with skid or exhaust – depending on exhaust routing or aftermarket tummy tuck skid plates
- Sensor plug incompatibility – NV241OR sensors may need to be wired into your harness manually
- Shifter alignment issues – especially if using a body lift or aftermarket console
Tips for a Cleaner Install
- Pre-measure driveshaft lengths and have them modified or replaced before reinstall
- If running a 1” body lift, this helps shifter clearance considerably unless you swap to a cable setup
- Use thread locker on transfer case mounting bolts—there’s a lot of torque down there
- Test your 4WD engagement before buttoning everything up
Final Thoughts
Swapping a Rock-Trac NV241OR into your non-Rubicon Jeep is a solid upgrade if you’re into serious crawling or just want the gearing edge. It adds some extra weight and bulk, but it brings reliability, beef, and real-world trail advantage. Just make sure to plan ahead for the shifter, driveshaft, and input shaft details. If you take your time and check your measurements twice, this swap will transform your Jeep’s low-speed capability without breaking the rest of your drivetrain.
Want better gearing, less wheel hop, and a near-bulletproof transfer case? The NV241OR swap delivers.
