Barricade 9500 Winch Install

We needed a winch for the jeepfan.com 2004 TJ Unlimited so we looked to Extreme Terrain for a reasonably priced winch that will fill the needs of the Jeep.  They recommended the Barricade 9500lb winch which includes a 94 foot orange synthetic rope to keep the weight down and stand out.  It’s standard mounting pattern made installing it on the Barricade HD front bumper we recently installed a snap.

Get personalized content recommendations and answers drawn from our website. Simply type your question or topic of interest, and our AI assistant will help you find relevant articles, tips, and insights. You can also have a natural conversation to explore topics in more depth.

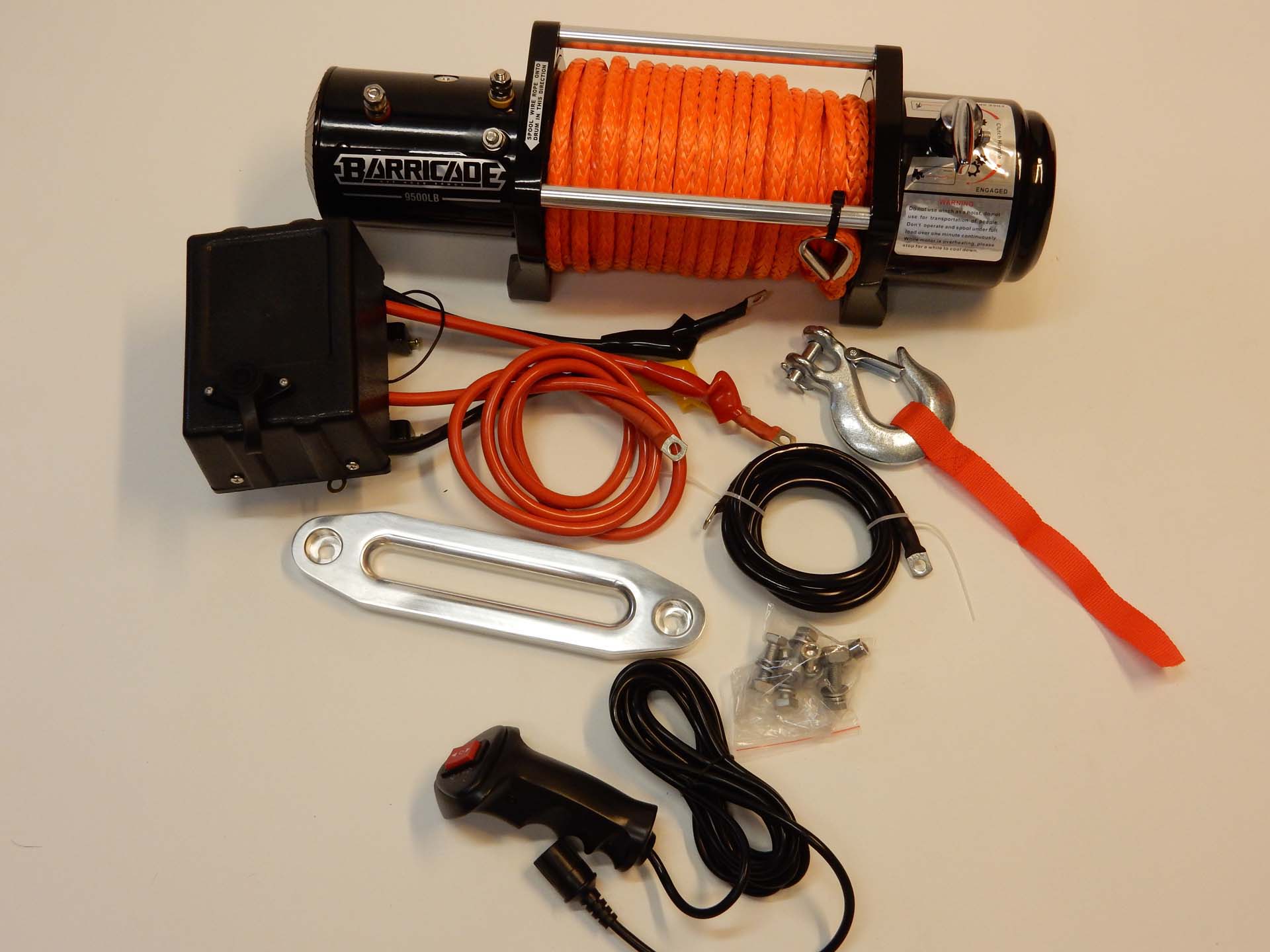

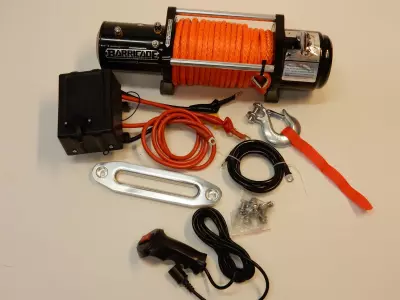

Barricade 9500 Winch and Accessories

Technical details about the winch.

  • 9,500 lb. Single-Line Pulling Rating
  • 5.5 HP 12-Volt Series Wound Electric Motor
  • 3 Stage Planetary Gear with 195.4:1 Gear Ratio
  • 94ft Bright Orange Synthetic Rope Included
  • Wired Remote Switch with 12 Foot Lead
  • Durable Black Powder Coat Finish
  • Hook, Hawse Fairlead and Cover are Included
  • Overall Dimensions: 21.1″ x 6.3″ x 8.6″
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Weight: 44 lbs.
  • Limited Lifetime Manufactures Warranty
  • Fits standard winch mounts

Installation

The Barricade bumper features an integrated winch mount along with a fairlead mount.  Your installation may vary depending on the mounting style on your Jeep.

The winch uses four mounting bolts and four nut inserts.  The nut inserts are installed before the winch is placed.  Install the nut inserts and mount the fairlead to the bumper.  Place the winch in place.

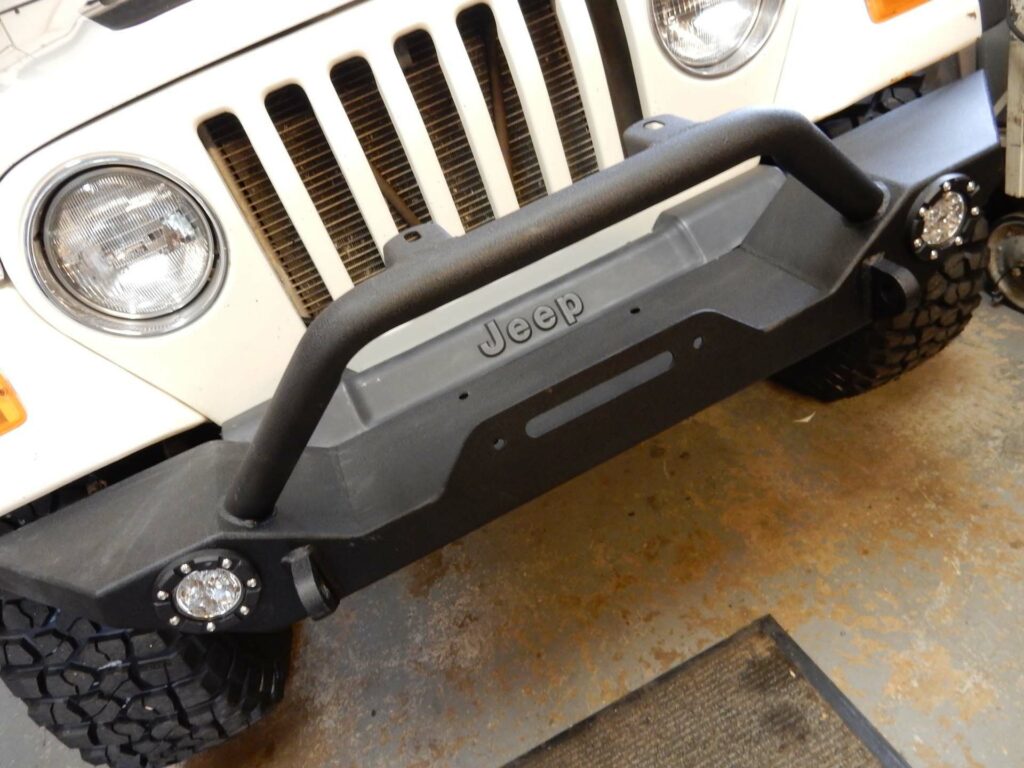

  • bumper ready for the winch

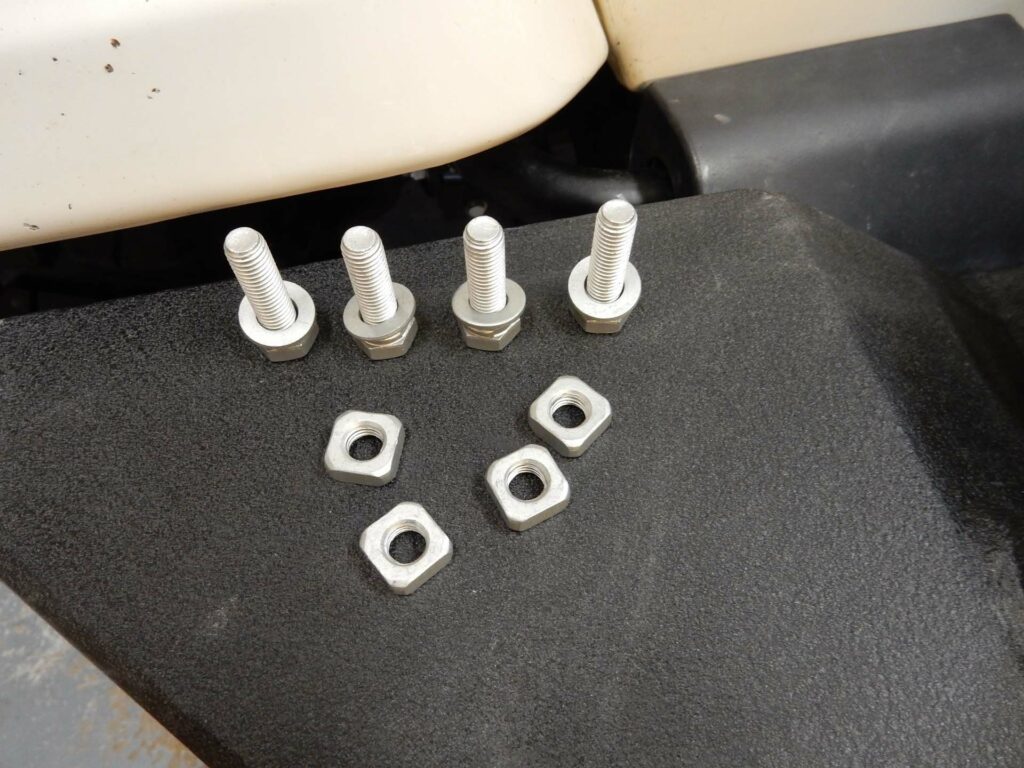

  • nut inserts and bolts

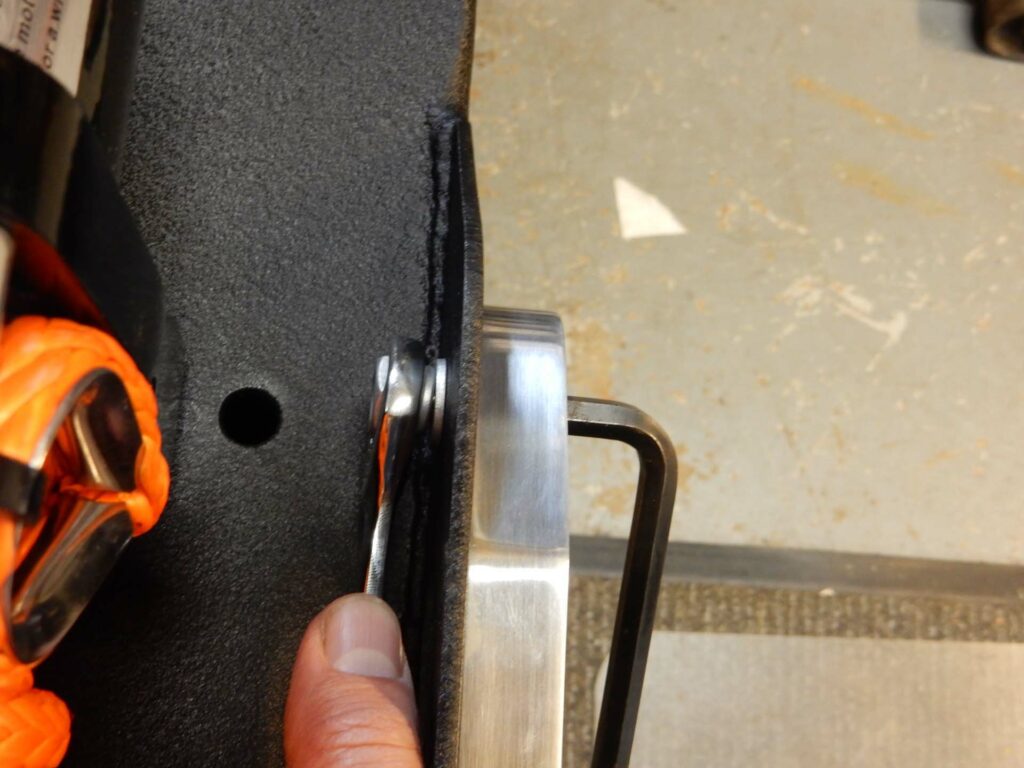

  • installing the nut inserts

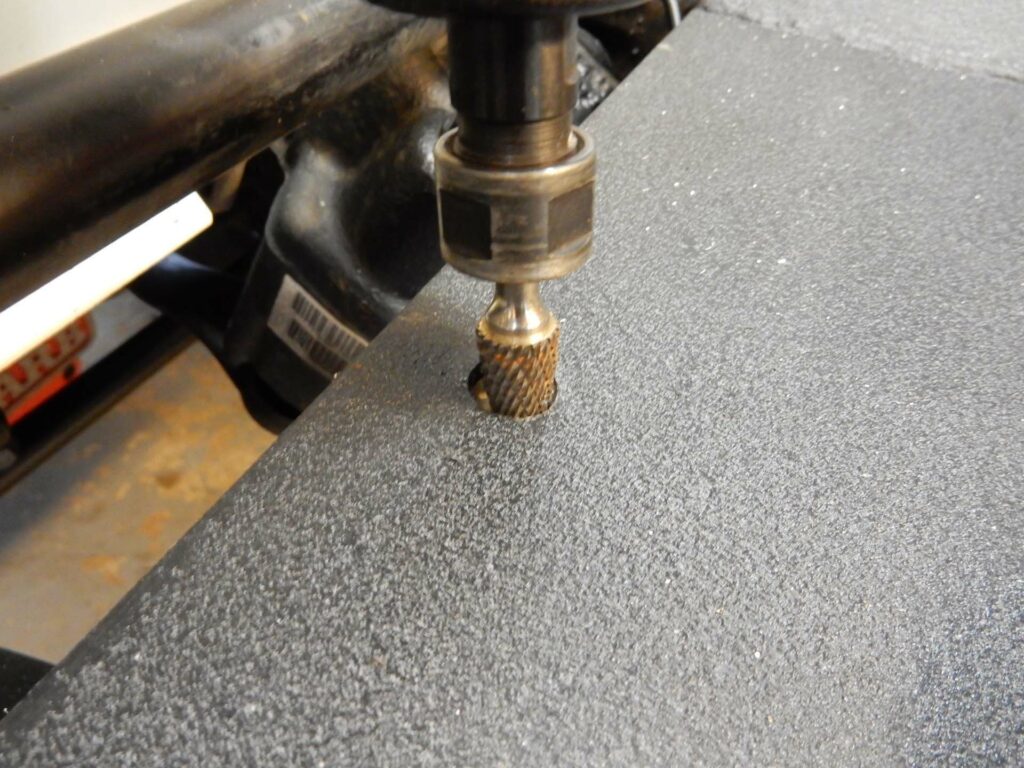

  • hole elongation

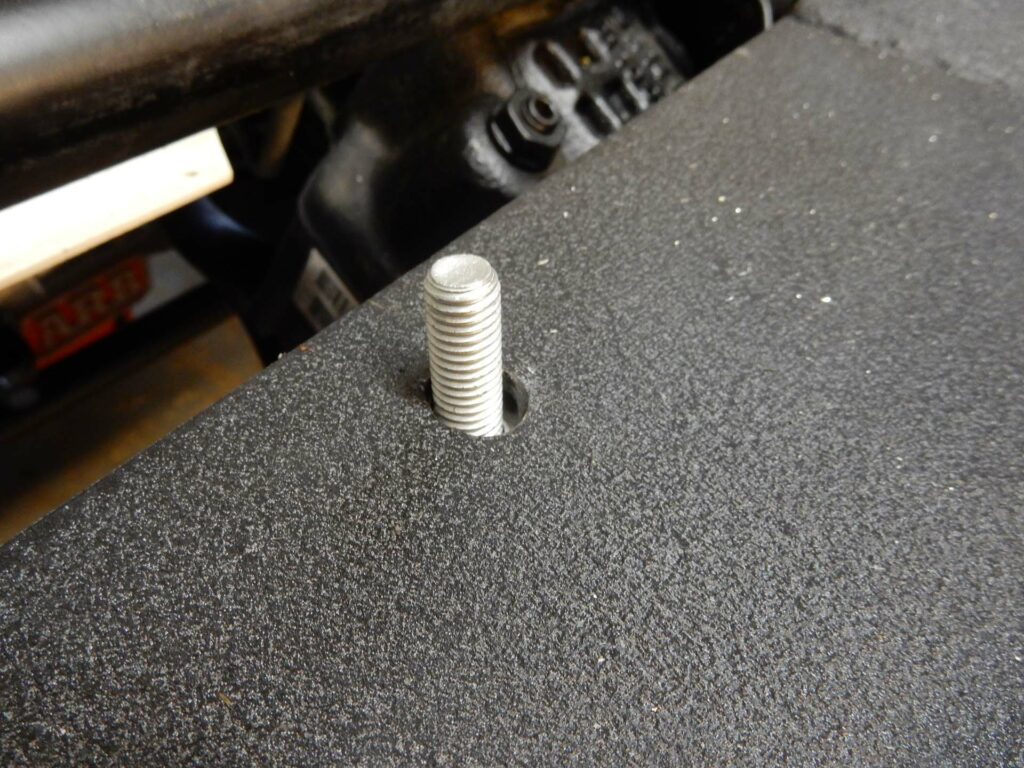

  • bolt installed

We got stopped here by the rear bolts that wouldn’t go through the bumper mount holes due to hitting the tubular crossmember located below.  It may be best to install the winch with this bumper off but we decided to oval the rear bumper winch mount holes just slightly to allow the bolt through.  After a quick grind job the bolts were in and the winch was ready for the bolts.

With the winch bolted in place the fairlead was mounted onto the bumper.

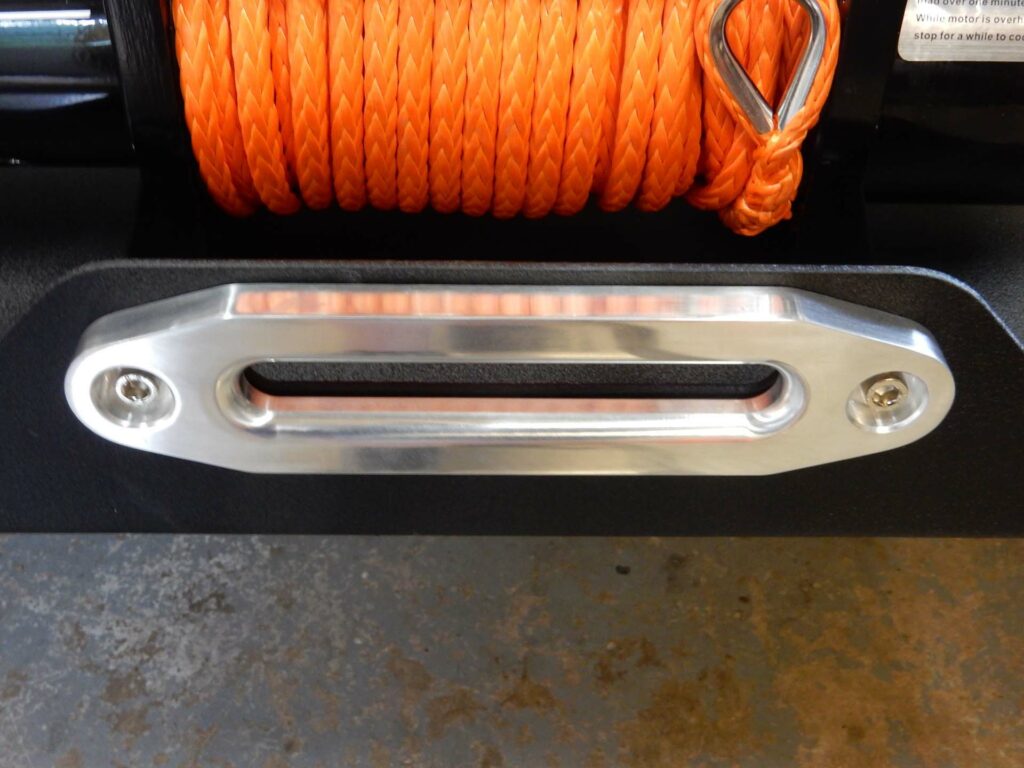

  • fairlead install

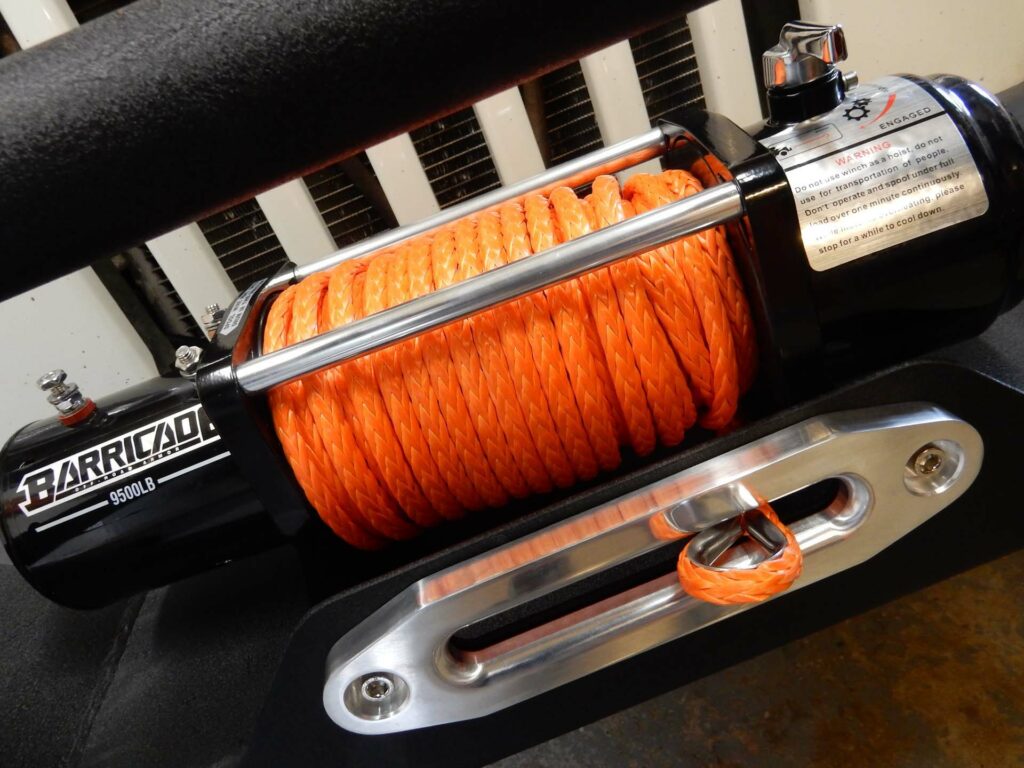

  • completed mounting

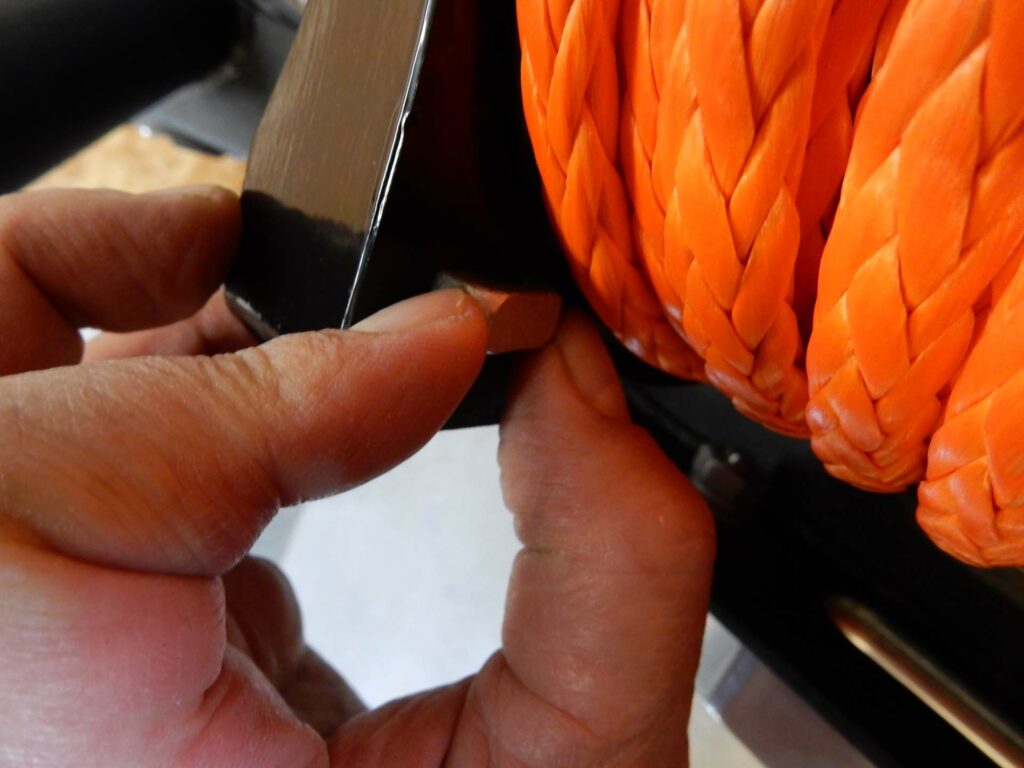

  • rope threaded through the fairlead

Next Page – Barricade 9500 Winch Install – Wiring
