2007 Jeep Wrangler Unlimited 4 Door

PRESS RELEASE: April 12, New York – Not afraid to get dirty, Jeep® today revealed the all-new 2007 Wrangler Unlimited from underneath six tons of mud.

Outside of the Javits Center, the beginning of the Jeep press conference featured only a simple mound of mud on stage, but quickly became one of the dirtiest vehicle reveals in New York International Auto Show history. Within minutes, a fire truck roared in with sirens blaring. Several individuals emerged from the truck and blasted mud off the first-ever four-door Wrangler. When uncovered, Jeep’s classic American icon debuted with a radical four-door open-air design — the all-new 2007 Jeep Wrangler Unlimited.

The mudslinging didn’t stop there. Jeep also made a splash with the world debut of the all-new 2007 Jeep Patriot. Executives christened the newest, most capable and most affordable compact SUV into the Jeep lineup. But forget champagne. Jeep Patriot wants to get dirty, so the crowd got into the mix, dumping barrels and balloons full of mud onto Patriot to give it a proper welcome to the Jeep brand.

“In true Jeep fashion, we decided to get outside and play in the mud to introduce the all-new 2007 Jeep Wrangler Unlimited and 2007 Jeep Patriot,” said Joe Eberhardt, Executive Vice President – Global Sales, Marketing and Service, Chrysler Group. “No other vehicle in the world can replicate the Wrangler Unlimited’s unique combination of four-door convenience, open-air driving experience and unmatched off-road capability. And no other vehicle in the compact SUV class can match Patriot’s price or capability.”

World’s most capable SUV offers even more Jeep

* Even More Passenger Room and Comfort – Five-passenger seating includes 56.7 inches of rear-seat hip room, 37.2 inches of rear-seat legroom
* Even More Interior Cargo Space – 46.4 cu. ft. behind second-row seat and 83 cu. ft. with second-row seats folded flat; more cargo space than 2007 Toyota FJ Cruiser, 2006 Hummer H3 and 2006 Nissan Xterra
* Even More Open-air Fun – Only four-door convertible on the market features Jeep’s all-new, three-piece Freedom Top™ and the innovative Sunrider™ soft top; open-air driving in less than 30 seconds
* Even More Legendary Off-road Capability – Best-in-class ground clearance, approach and departure angles; enhanced Dana front and rear solid axles, available next-generation Command-Trac® and Rock-Trac™ transfer cases, new electric axle lockers, and electronic-disconnecting front sway bar
* Even More On-road Refinement – 116-inch wheelbase, 100-percent stiffer frame, advanced shock tuning and new cross-car steering linkage
* Even More Power and Fuel Efficiency – 3.8-liter V-6 engine features 205 horsepower and 240 lb.-ft. of torque with improved fuel economy
* Even More Convenience – Standard 60/40-split fold-flat rear seat, available power windows and door locks with remote keyless entry, full-screen navigation system, MP3 capability and SIRIUS Satellite Radio
* Even More Safety – Standard Electronic Stability Program (ESP), electronic roll mitigation and Occupant Classification System (OCS); optional seat-mounted side air bag

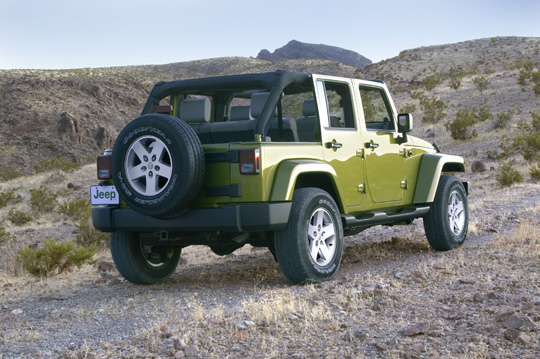

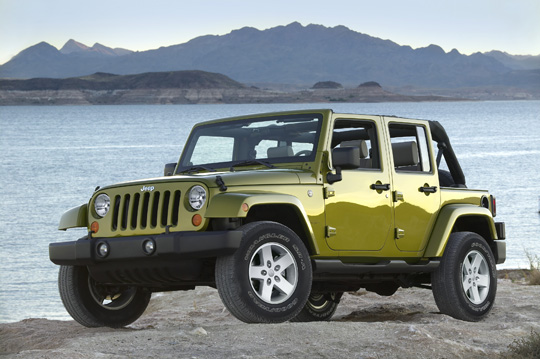

Featuring a one-of-a-kind, four-door open-air design, the all-new 2007 Jeep® Wrangler Unlimited expands the Jeep experience to new dimensions. With room for five adult passengers – a Wrangler first – and the most cargo space ever offered in a Wrangler, the Unlimited combines class-leading off-road capability with everyday practicality.

The all-new 2007 Jeep Wrangler Unlimited grows to mid-size SUV proportions, offering even more comfort and space, even more versatility, even more open-air options, even more off-road capability, even more on-road refinement, even more convenience and safety features, and even more power and fuel efficiency.

“Combining four-door convenience with Wrangler’s unique open-air design and unmatched off-road capability, the all-new 2007 Jeep Wrangler Unlimited is the only four-door convertible on the market,” said George Murphy, Senior Vice President – Global Brand Marketing, Chrysler Group. “Wrangler Unlimited expands the Jeep experience and core values – freedom, adventure, mastery and authenticity – to a broader range of customers who always wanted a Wrangler, but also more space and versatility.”

The all-new 2007 Jeep Wrangler Unlimited features a 116-inch wheelbase, achieved by adding 20.6 inches to the standard all-new 2007 Wrangler’s 95.4-inch wheelbase. The additional length allows for a larger rear seat that features three seating positions, as well as more hip, leg and shoulder room. In addition, Wrangler Unlimited offers nearly triple the rear cargo space.

Offered in two-wheel drive and four-wheel drive, Jeep Wrangler Unlimited utilizes the same five-link solid-axle suspension configuration as the standard 2007 Jeep Wrangler. The all-new 2007 Jeep Wrangler Unlimited also retains Wrangler’s coveted removable full-framed or half doors, exposed hinges, fold-down windshield and innovative removable and convertible tops.

The all-new 2007 Jeep Wrangler Unlimited will be offered in three models: Wrangler Unlimited X, Sahara and Rubicon, and will feature hundreds of different top, door and windshield combinations. In addition, nine exterior colors and available 16-, 17-, or 18-inch wheels will be offered.

Even More Space, Comfort and Versatility
While maintaining its legendary off-road capability, the all-new 2007 Jeep Wrangler Unlimited features a spacious interior that takes comfort and convenience to new lengths. Its 102.9 cu. ft. of total interior space provides room for five adult passengers and delivers more cargo storage and seating configurations than ever before.

“No other vehicle in the world can replicate the all-new 2007 Jeep Wrangler Unlimited’s unique combination of best-in-class off-road capability, open-air fun and everyday convenience and versatility,” said Mike Donoughe, Vice President – Body-on-frame Product Team. “Whether it’s used as a daily driver or for extreme rock crawling, Jeep Wrangler Unlimited has the ability to turn mountains into mole hills, while comfortably carrying passengers and gear.”

The 2007 Jeep Wrangler Unlimited should hit Jeep dealer showrooms in fall 2006.

2007 JEEP WRANGLER UNLIMITED SPECIFICATIONS
Dimensions are in inches (millimeters) unless otherwise noted.
Provided by Jeep

GENERAL INFORMATION
Body Style…………………………………………………………………………………………………………4-Door Sport Utility
Assembly Plant ……………………………………………………………………………………………………………Toledo, Ohio
EPA Vehicle Class……………………………………………………………………………………………..Multi-purpose vehicle

ENGINE: 3.8-LITER, OHV, 12-VALVE SMPI V-6
Availability…………………………………………………………………………………………………………………………….Std.
Type and Description………………………………………………………………….Six-cylinder, 60° V-type, liquid-cooled
Displacement…………………………………………………………………………………………..230.5 cu. in. (3778 cu. cm)
Bore x Stroke………………………………………………………………………………………………….. 3.78 x 3.43 (96 x 87)
Valve System………………………………………………………………OHV, 12 valves, roller followers, hydraulic lifters
Fuel Injection…………………………………………………………………………………. Sequential, multi-port, electronic
Construction……………………………………………………………………………. Cast-iron block, aluminum alloy heads
Compression Ratio………………………………………………………………………………………………………………… 9.6:1
Power (SAE net)………………………………………………………………… 205 hp (153 kW) @ 5,200 rpm (53.9 hp/L)
Torque (SAE net)………………………………………………………………………….. 240 lb.-ft. (325 N•m) @ 4,000 rpm
Fuel Recommendation………………………………………………………………..Unleaded regular, 87 octane (R+M)/2
Oil Capacity……………………………………………………………………………………………………..6 qt. (5.7L) plus filter
Coolant Capacity………………………………………………………………………………………….. 13.36 qt. (12.64L) Std.
Emission Controls………………………………………………………………………Three-way catalytic converter, heated
oxygen sensors, electronic EGR and internal engine features
Manual Transmission Meets Tier 2 Bin 5 (federal) and LEV II (CA) emission requirements
Automatic Transmission Meets Tier 2 Bin 5 (federal) and ULEV II (CA) emission requirements

ELECTRICAL SYSTEM
Alternator……………………………………………………………………………………………………………………………..160A
Battery……………………………………………………………………………………………………..600 CCA, maintenance-free

TRANSMISSION: NSG 370—MANUAL, SIX-SPEED OVERDRIVE
Availability………………………………………………………………………………………………………………Std.—All models
Description………………………………………………………………….. Synchronized in all forward gears and reverse,
multi-rail shift system with top-mounted shift lever
Clutch…………………………………………………………………………Hydraulic actuation
Gear Ratios
1st………………………………………………………………………………………………………………………………………… 4.46
2nd………………………………………………………………………………………………………………………………………… 2.61
3rd………………………………………………………………………………………………………………………………………… 1.72
4th………………………………………………………………………………………………………………………………………… 1.25
5th………………………………………………………………………………………………………………………………………… 1.00
6th…………………………………………………………………………………………………………………………………………. 0.84
Reverse…………………………………………………………………………………………………………………………………. 4.06

Axle Ratio…………………………………………………………………………………3.21 Std., 4.10 Opt. (Std. on Rubicon)
Overall Top Gear………………………………………………………………………..2.69 Std., 3.44 Opt. (Std. on Rubicon)

TRANSMISSION: 42RLE—AUTOMATIC, FOUR-SPEED OVERDRIVE WITH VARIABLE LINE PRESSURE
Availability…………………………………………………………………………………………………………………………Optional Description……………………………………………..Electronic governor, electronically controlled converter clutch

Gear Ratios
1st….. ……………………………………………………………………………………………………………………………………. 2.84
2nd………………………………………………………………………………………………………………………………………… 1.57
3rd……………………………………………………………………………………………………………………………………………1.0
4th…………………………………………………………………………………………………………………………………………. 0.69
Reverse…………………………………………………………………………………………………………………………………. 2.21

Axle Ratio………………………………………………………………………………………………………………………………. 4.10
Overall Top Gear…………………………………………………………………………………………………………………….. 2.83

TRANSFER CASE: NV241 COMMAND-TRAC
Type………………………………………………………………………………………………………………………………….Part-time
Operating Modes ……………………………………………………………………………………………2WD High; 4WD High; Neutral; 4WD Low
Low Range Ratio………………………………………………………………………………………………………………….. 2.72:1
Center Differential Type……………………………………………………………………………………………………………None

TRANSFER CASE: NV241OR ROCK-TRAC
Type………………………………………………………………………………………………………………. Part-time, heavy-duty
Operating Modes ……………………………………………………………………………………………2WD High; 4WD High; Neutral; 4WD Low
Low Range Ratio………………………………………………………………………………………………………………………4.0:1
Center Differential Type……………………………………………………………………………………………………………………………………….None

DIMENSIONS AND CAPACITIES
General Overall Length……………………………………………………………………………………………….173.4 (4404.4)
Overall Width (without mirrors)………………………………………………………………………………………73.9 (1877.1) Height……………………………………………………………………………………………………………………….70.9 (1800.9) Wheelbase………………………………………………………………………………………………………………..116.0 (2946.4)
Track, Front ……………………………………………………………………………………………………………….61.9 (1572.3)
Overhang, Front…………………………………………………………………………………………………………..26.7 ( 678.2)
Overhang, Rear……………………………………………………………………………………………………………30.6 ( 777.2)

Maximum Payload (includes occupants and cargo)…………………………………………………… 1000 lbs. (454 kg)

CLEARANCES

P225/75R16 Tire P245/75R16 Tire P255/75/R17 Tire P255/70R18 Tire LT255/75R17 Tire
Approach Angle Deg. 40.6 42.1 43.6 44.4 44.4
Breakover Angle Deg. 17.8 19 20.3 20.9 20.8
Departure Angle Deg. 37.5 38.8 40.3 40.7 40.5
Front Axle to ground 9.0 (228.6) 9.6 (243.8) 10.2 (259.1) 10.5 (266.7) 10.5 (266.7)
Rear Axle to ground 8.7 (221.0) 9.3 (236.2) 10.0 (254.0) 10.2 (259.1) 10.1 (256.5)




CURB WEIGHT
Wrangler Unlimited X, Man. Trans………………………………………………………………………………..4075 lbs. (1848 kg)
Wrangler Unlimited X Auto. Trans………………………………………………………………………………..4100 lbs. (1860 kg)
Wrangler Unlimited Sahara, Man. Trans……………………………………………………………………….4269 lbs. (1936 kg)
Wrangler Unlimited Sahara, Auto. Trans……………………………………………………………………….4294 lbs. (1948 kg)
Wrangler Unlimited Rubicon, Man. Trans………………………………………………………………………4315 lbs. (1957 kg)
Wrangler Unlimited Rubicon, Auto. Trans………………………………………………………………………4340 lbs. (1969 kg)

ACCOMMODATIONS
Seating Capacity, F/R……………………………………………………………………………………………………………… 2/3
Front
Headroom……………………………………………………………………………………………………………..41.3 (1049.0 mm)
Legroom……………………………………………………………………………………………………………..41.0 (1041.4 mm)
Shoulder Room……………………………………………………………………………………………………55.8 (1417.3 mm)
Hip Room……………………………………………………………………………………………………………55.6 (1412.2 mm)
Seat Travel…………………………………………………..Driver – 9.055 (230.0mm), passenger – 9.055 (230.0mm)
Front Volume Index, cubic ft. (cu. m)……………………………………………………………………… 54.6 (1.55 cu. m)
Rear
Headroom……………………………………………………………………………………………………………..40.4 (1026.2 mm)
Legroom……………………………………………………………………………………………………………..37.2 ( 944.9 mm)
Shoulder Room……………………………………………………………………………………………………56.8 (1442.7 mm)
Hip Room…………………………………………………………………………………………………………. .56.7 (1440.2 mm)
Rear Seat Volume Index, cubic ft. (cu. m) ………………………………………………………………..49.4 (1.40 cu. m)

Cargo Liftover Height …………………………………………………………………………………………..31.4 ( 797.6 mm)
Maximum Cargo Width at Swing Gate Opening………………………………………………………..58.7 (1491.0 mm)
Minimum Cargo Width at Swing Gate Opening ………………………………………………………..41.2 (1046.5 mm)
Maximum Cargo Height at Swing Gate Opening……………………………………………………….37.1 ( 942.3 mm)
Minimum Cargo Height at Swing Gate Opening………………………………………………………..37.0 ( 939.8 mm)
Distance between wheelhouses…………………………………………………………………………… 44.7 (1135.4 mm)

Cargo Volume cubic ft. (cu. m)
Rear seat folded….……………………………………………………………………………………………….86.75 (2.46 cu. m)
Rear Seat Upright………………………………………………………………………………………………….46.43 (1.31 cu. m)

BODY AND CHASSIS
Layout……………………………………………………. Longitudinal front engine, four-wheel drive & two-wheel drive
Construction…………………………………………………………………………………Ladder-type frame, open steel body

SUSPENSION
Front…………………………………………………..Live axle, leading arms, track bar, coil springs, stabilizer bar,
low-pressure (on 16-inch wheel packages) gas-charged shock absorbers—std.;
Monotube high-pressure (on 17- and 18-inch wheel packages)
gas-charged shock absorbers—std.;
Electronic Sway Bar Disconnect System (ASDS) opt.

Rear ………………………………………………………..Live axle, trailing arms, track bar, coil springs, stabilizer bar,
low-pressure (on 16-inch wheel packages) gas-charged shock absorbers—std.;
Monotube high-pressure (on 17- and 18-inch wheel packages)
gas-charged shock absorbers—std.
STEERING
Type………………………………………………………………………………………….Power, recirculating ball with damper
Overall Ratio ……………………………………………………………………………………………………………..14.7:1 overall
Turning Diameter (curb-to-curb)…. …………………………………………. 41.2 ft. (12.56 m) with 225/75R16 tires
Steering Turns (lock-to-lock) ………………………………………………………………………………………………..3.5

BRAKES
Availability…………………………………………………………………………………………………………………………..Std. All
Power Assist Type……………………………………………………………………………….. 8 x 9 dual-diaphragm vacuum
Four-Wheel Anti-Lock with on- and off-road calibrations………………………………………………………………….Std.
Electronic Stability Program (ESP) ……………………………………………………………………………………………….Std.
Parking Brake Type ……………………………………………………………………………………………………….Drum-in-hat

Front Size and Type………………………………………………………………………………..11.9 x 1.1 (302 x 28) vented rotor
with 2.6 (66) single-piston floating caliper
Swept Area (total front)………………………………………………………………………….220.6 inches/caliper
Rear Size and Type……………………………………………………………………….. 12.44 x 0.47 (316 x 12) solid rotor
with 1.9 (48) single-piston floating caliper
Swept Area (total rear)……………………………………………………………………………… 207.7 inches/caliper

WHEELS
Availability……………………………………………………………………………………………………………………X Standard
Type and Material ……………………………………………………………………………………………………….Painted Steel
Size………………………………………………………………………………………………………………………………….16 x 7.0

Availability…………………………………………………………………………………………………………………….X Optional
Type and Material………………………………………………………………………………………….Painted Cast Aluminum
Size …………………………………………………………………………………………………………………………………16 x 7.0

Availability…………………………………………………………………………………………..Sahara Standard
Type and Material………………………………………………………………………………………….Painted Cast Aluminum
Size…………………………………………………………………………………………………………………………………..17 x 7.5

Availability…………………………………………………………………………………………..Rubicon Standard
Type and Material………………………………………………………………………………………Machined Cast Aluminum
Size…………………………………………………………………………………………………………………………………..17 x 7.5

Availability…………………………………………………………………………………………………………..Sahara Optional
Type and Material………………………………………………………………………………………….Painted Cast Aluminum
Size…………………………………………………………………………………………………………………………………..18 x 7.5

TIRES
Availability……………………………………………………………………………………………………………………………..X Std.
Size and Type …………………………………………………………………. P225/75R16, On/Off-road, Black Side Wall
Mfr. and Model……………………………………………………………………………………………….Goodyear Wrangler ST
Revs per Mile (km)………………………………………………………………………………………………………….712 (1146)

Availability………………………………………………………………………………………………………………………X Optional
Size and Type………………………………………………………………….. P245/75R16, On/Off-road, Black Side Wall
Mfr. and Mode……………………………………………………………………………………………..Goodyear Wrangler SRA
Revs per Mile (km)………………………………………………………………………………………………………….687 (1106)

Availability…………………………………………………………………………………………………………….Sahara Standard
Size and type……………………………………………………….P255/75R17, On/Off-road, Outlined White Lettered
Mfr. and Model……………………………………………………………………………………………Goodyear Wrangler SRA
Revs per Mile (km)………………………………………………………………………………………………………….661 (1064)
Availability……………………………………………………………………………………………………………..Sahara Optional
Size and Type……………………………………………………….P255/70R18, On/Off-road, Outlined White Lettered
Mfr. and Model……………………………………………………………………………………………Bridgestone Dueler 693
Revs per Mile (km)…………………………………………………………………………………………………………653 (1051)

Availability……………………………………………………………………………………………………………Rubicon Standard
Size and Type……………………………………………………………………… LT255/75R17, Off-Road, Black Side Wall
Mfr. and Model………………………………………………………………………………………….B.F. Goodrich Mud Terrain
Revs per Mile (km)………………………………………………………………………………………………………….650 (1046)
