Barricade Trail Force HD Rear Bumper Install

After installing the Barricade Trail Force HD Front bumper on the jeepfan.com JK we knew the rear would be in the Jeep’s future.  We chose the Barricade Trail Force HD Rear Bumper to match and the bumper didn’t disappoint.

The bumper comes in two versions one with a tire carrier and one without.  Since we have kept the jeepfan.com JK in the weekend Jeeper category the one without will suit our Jeep fine.

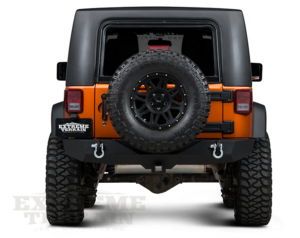

BarricadeBumperDetails

  • Rock Crawler rear bumper (83 lbs)
  • Heavy duty 3/16″ steel construction
  • 2″ standard hitch receiver
  • Can accommodate up to a 37″ tire
  • High strength D-Ring mounts w/ D-Rings included
  • Two stage textured black powder coat finish
  • Fits 2007-2015 Jeep Wrangler JK
  • 3 Year Limited Warranty

Installation

The installation is pretty simple and should only take an hour.

First Look

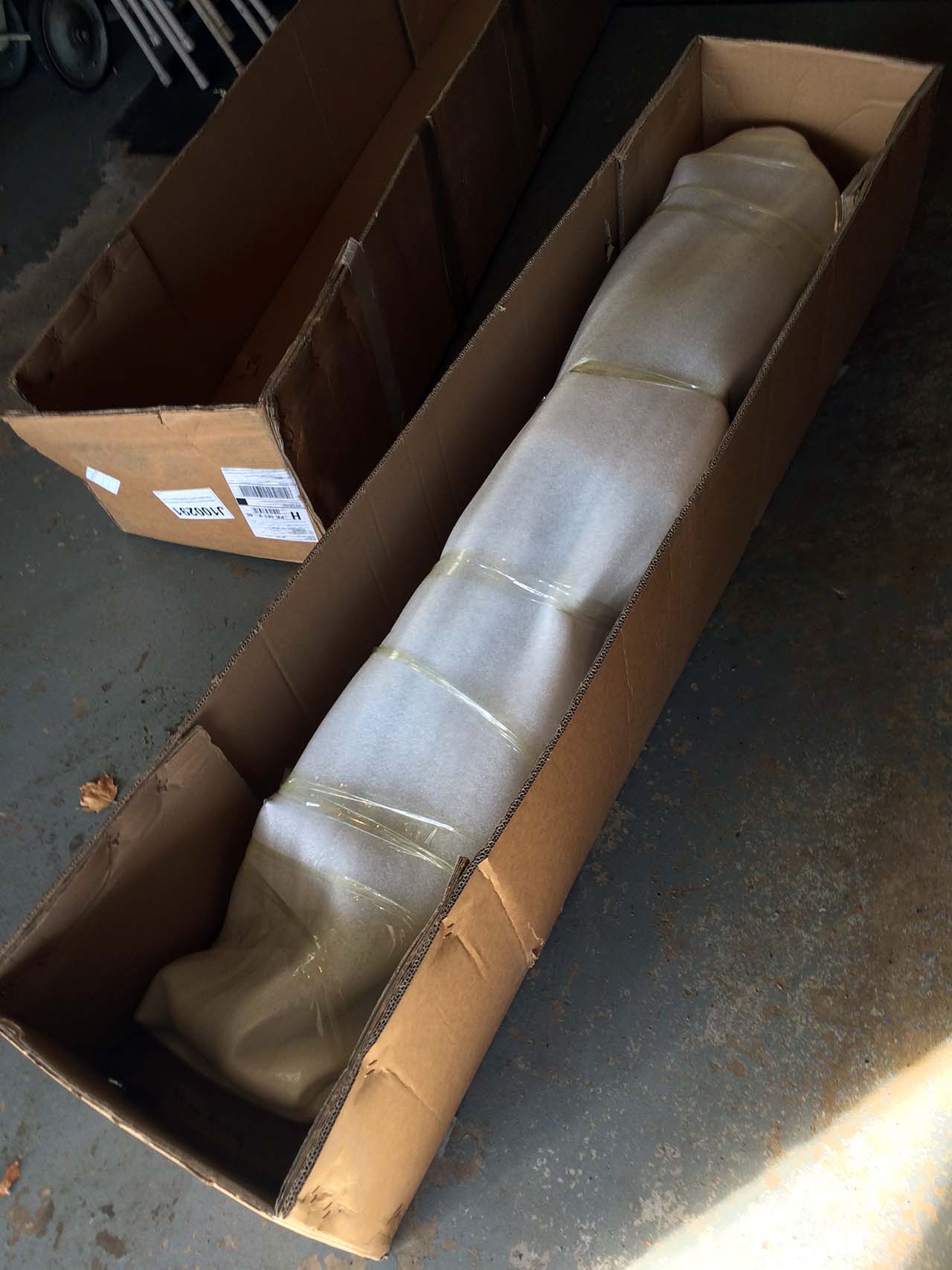

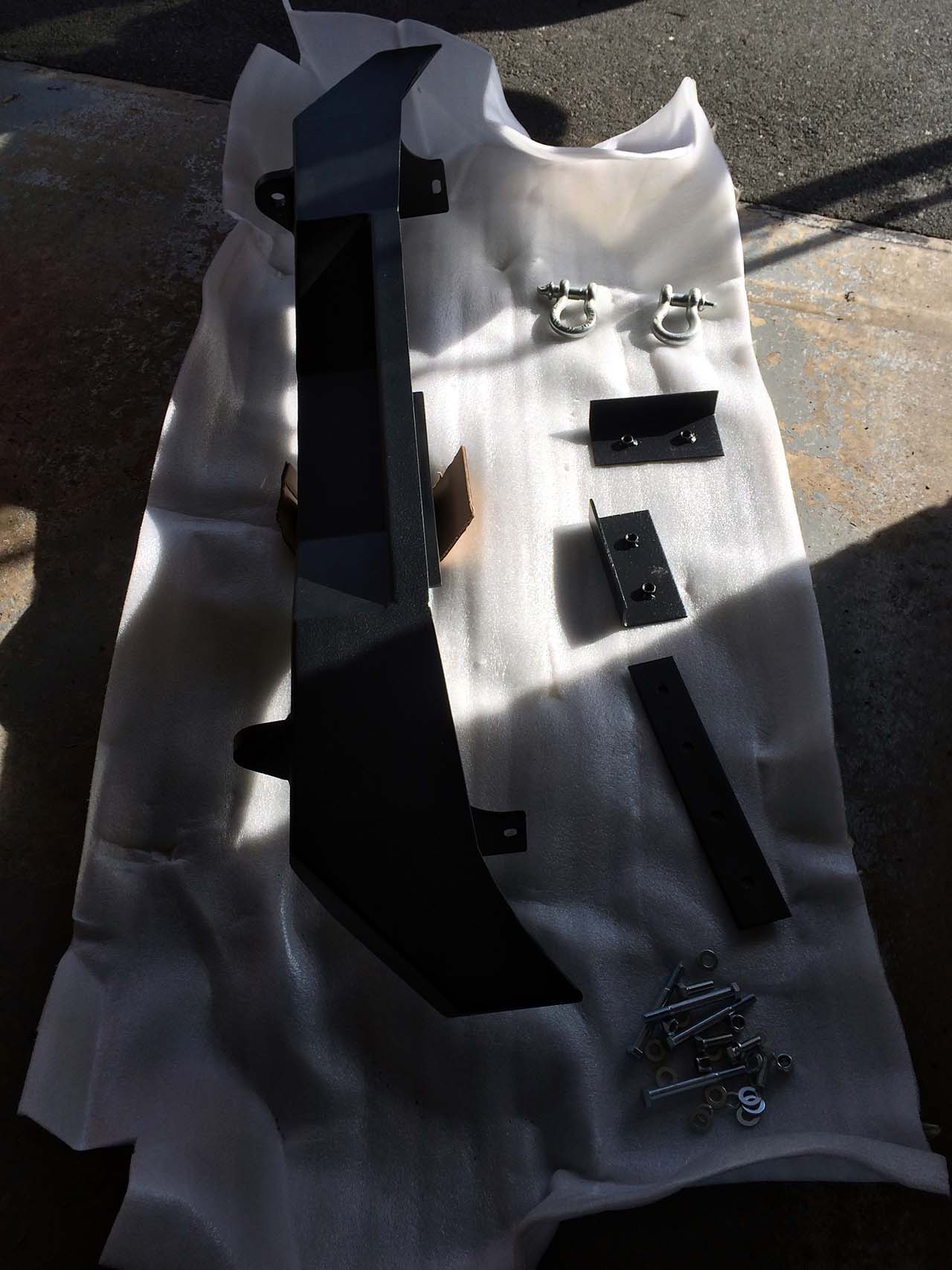

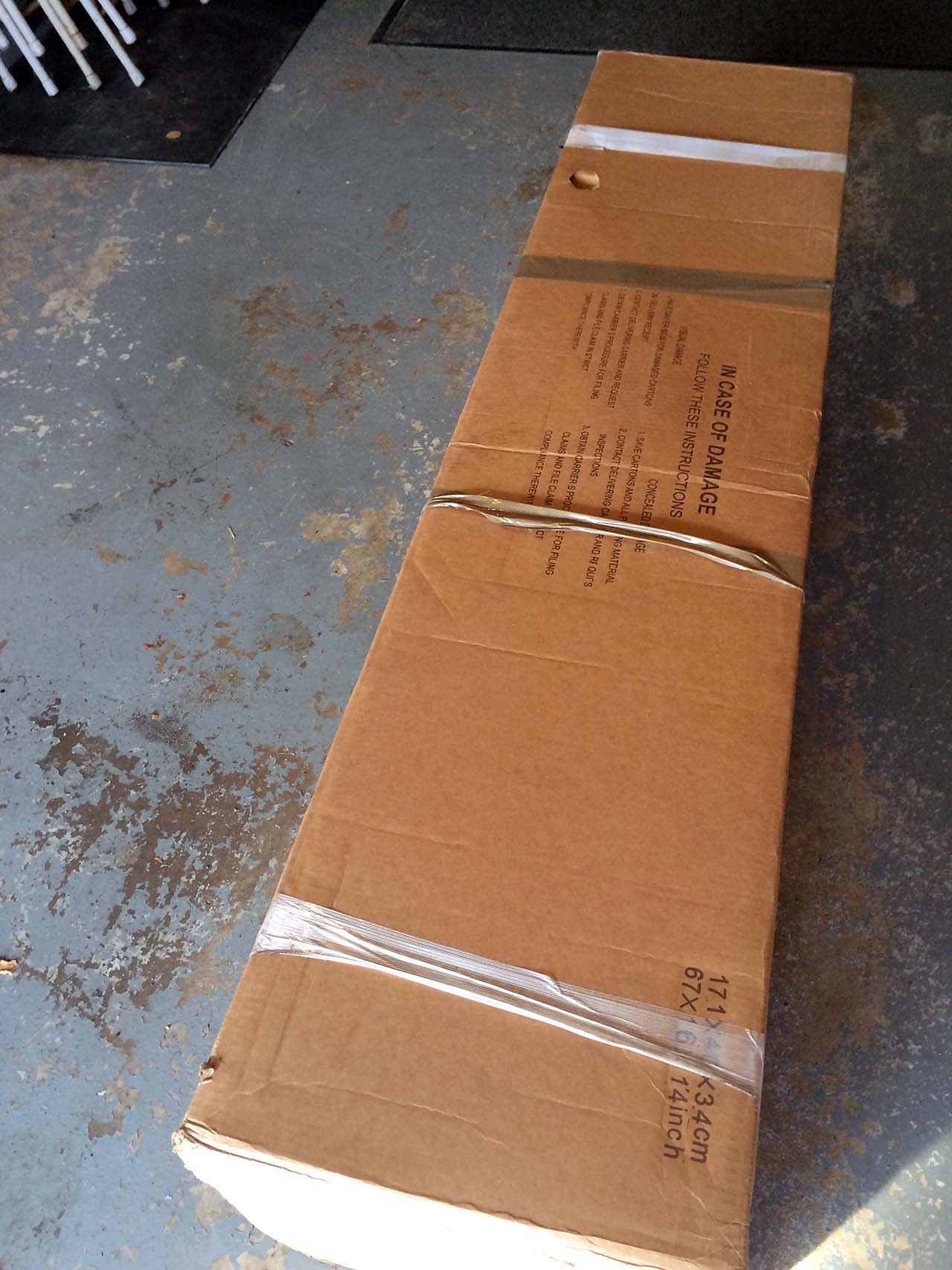

The bumper came in a huge box and was well wrapped with all the parts.

BarricadeRearBumperInstall-004 BarricadeRearBumperInstall-005 BarricadeRearBumperInstall-007

Getting Started

Remove the factory bumper, tow hook, and receiver (if equipped)

Bumper removal is pretty simple, there are 8 bolts.  2 on each side and 4 underneath.  Remove both underside bolts, the bumper will not come off with the brackets still attached.

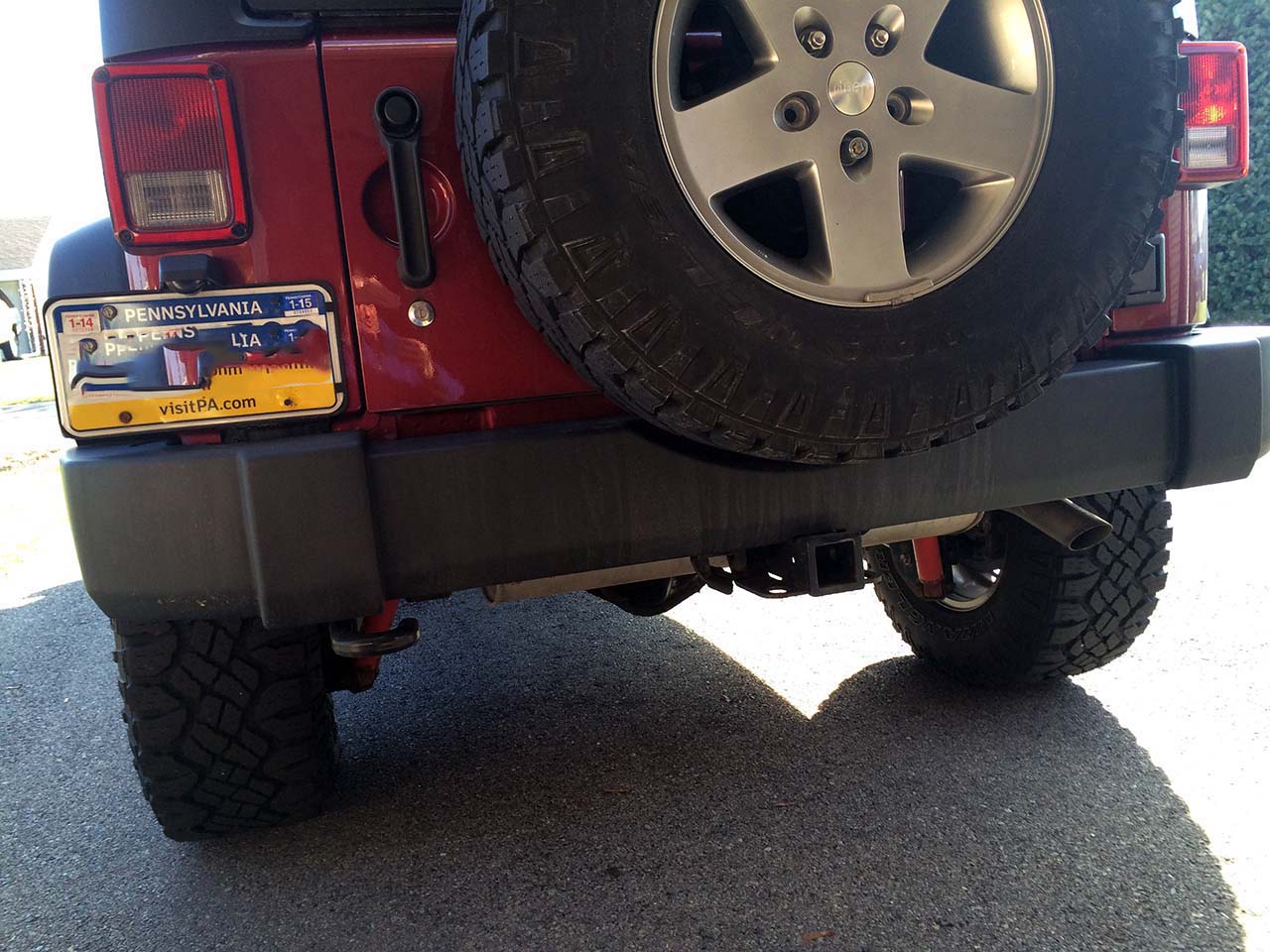

BarricadeRearBumperInstall-001

rear bumper

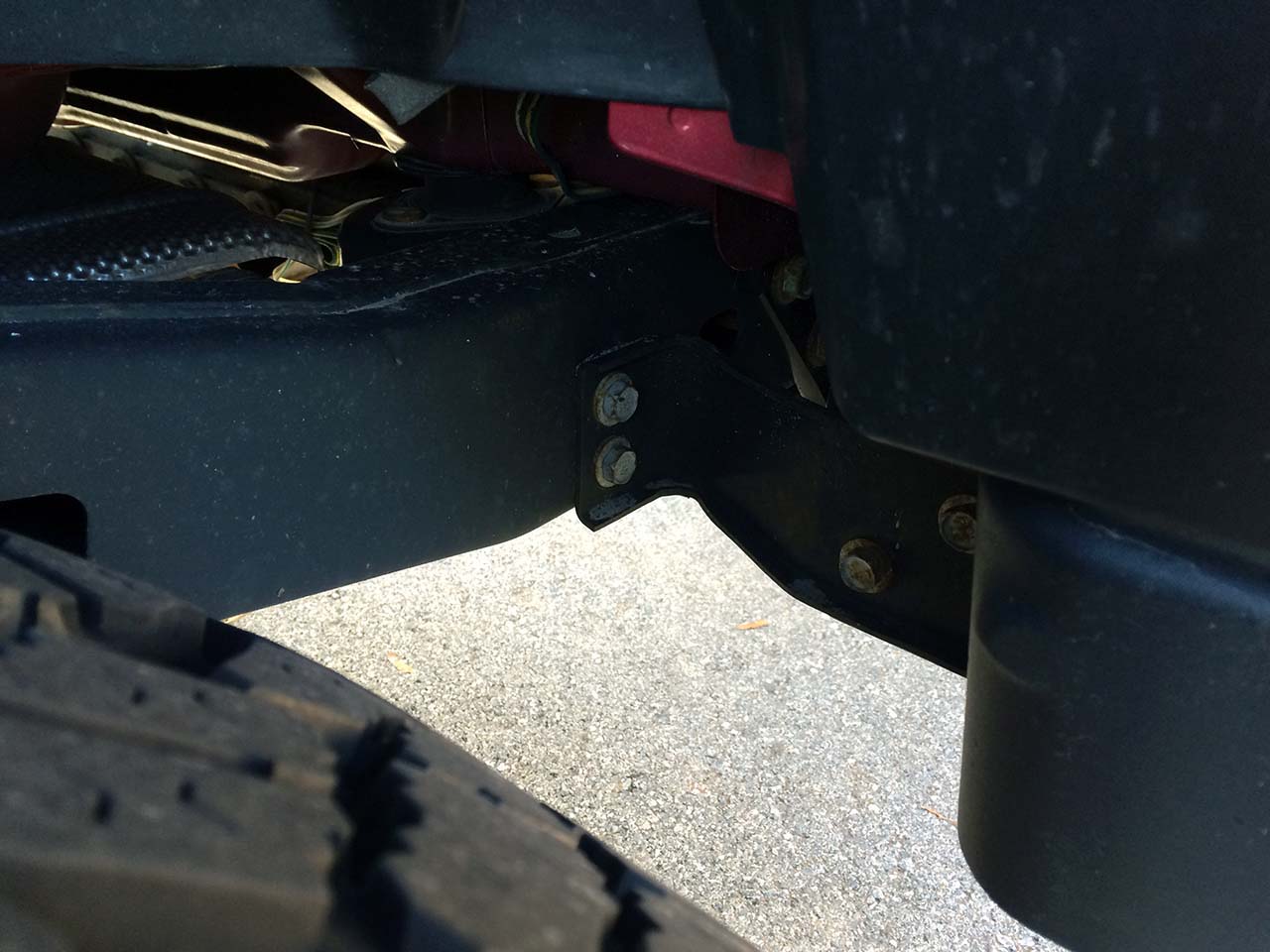

BarricadeRearBumperInstall-002

side bolts

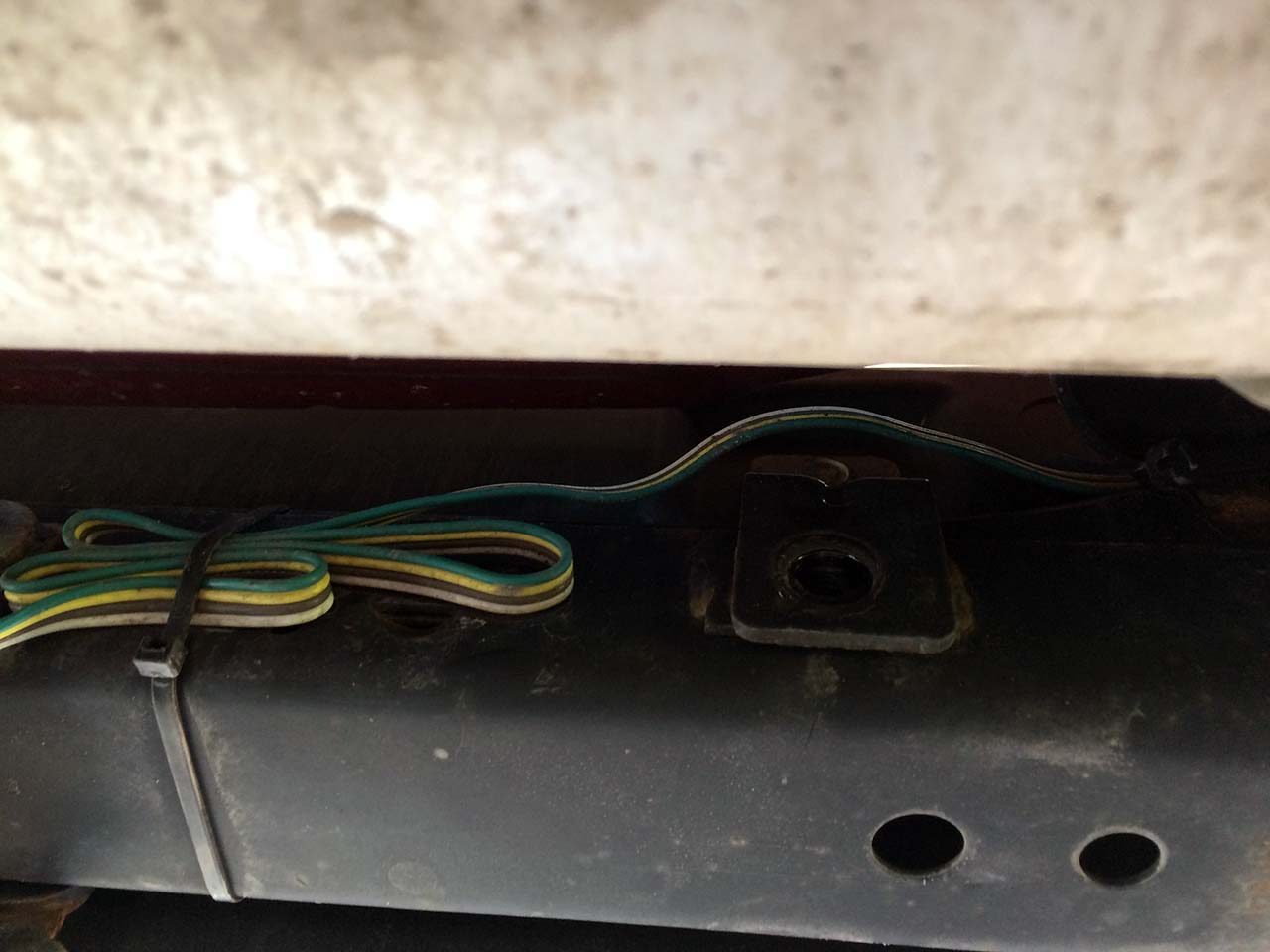

BarricadeRearBumperInstall-009

underside bolts and bracket

Remove the bumper. Since we had a 2 inch receiver on the Jeep that needed to be removed along with the factory tow hook.  Earlier JK’s may have the tow hook in the center.

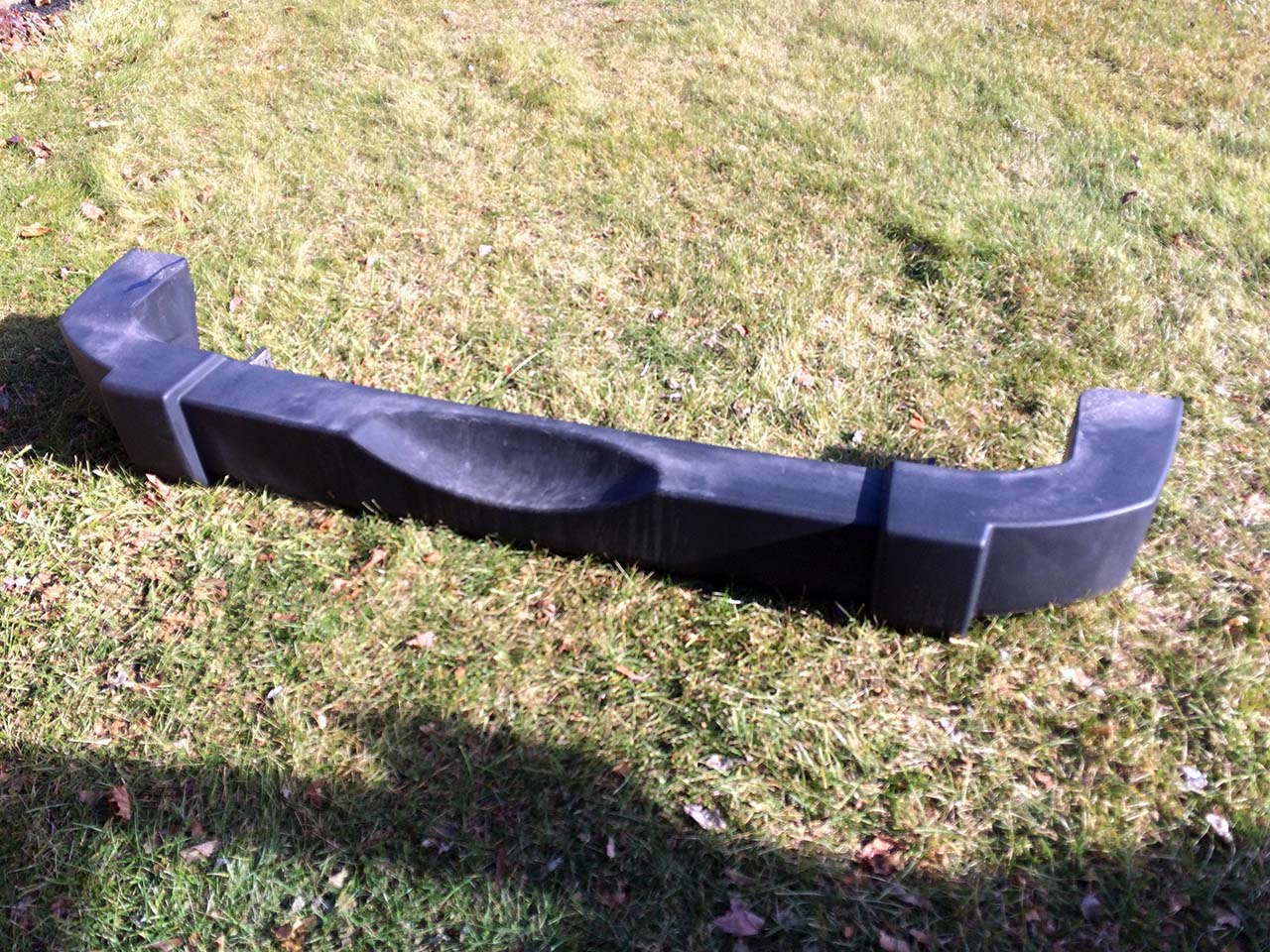

BarricadeRearBumperInstall-012

bumper removed

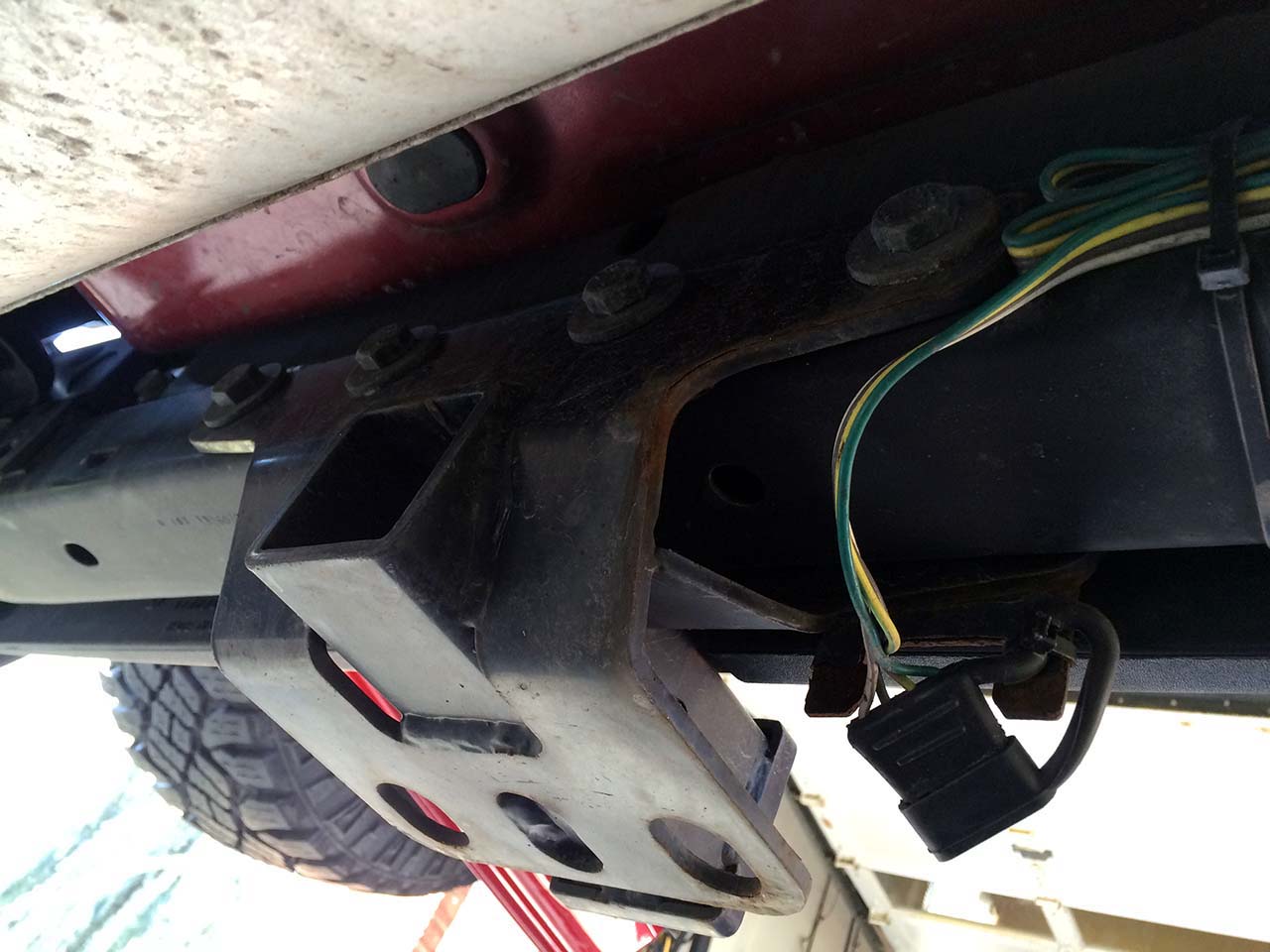

BarricadeRearBumperInstall-010

receiver underneath

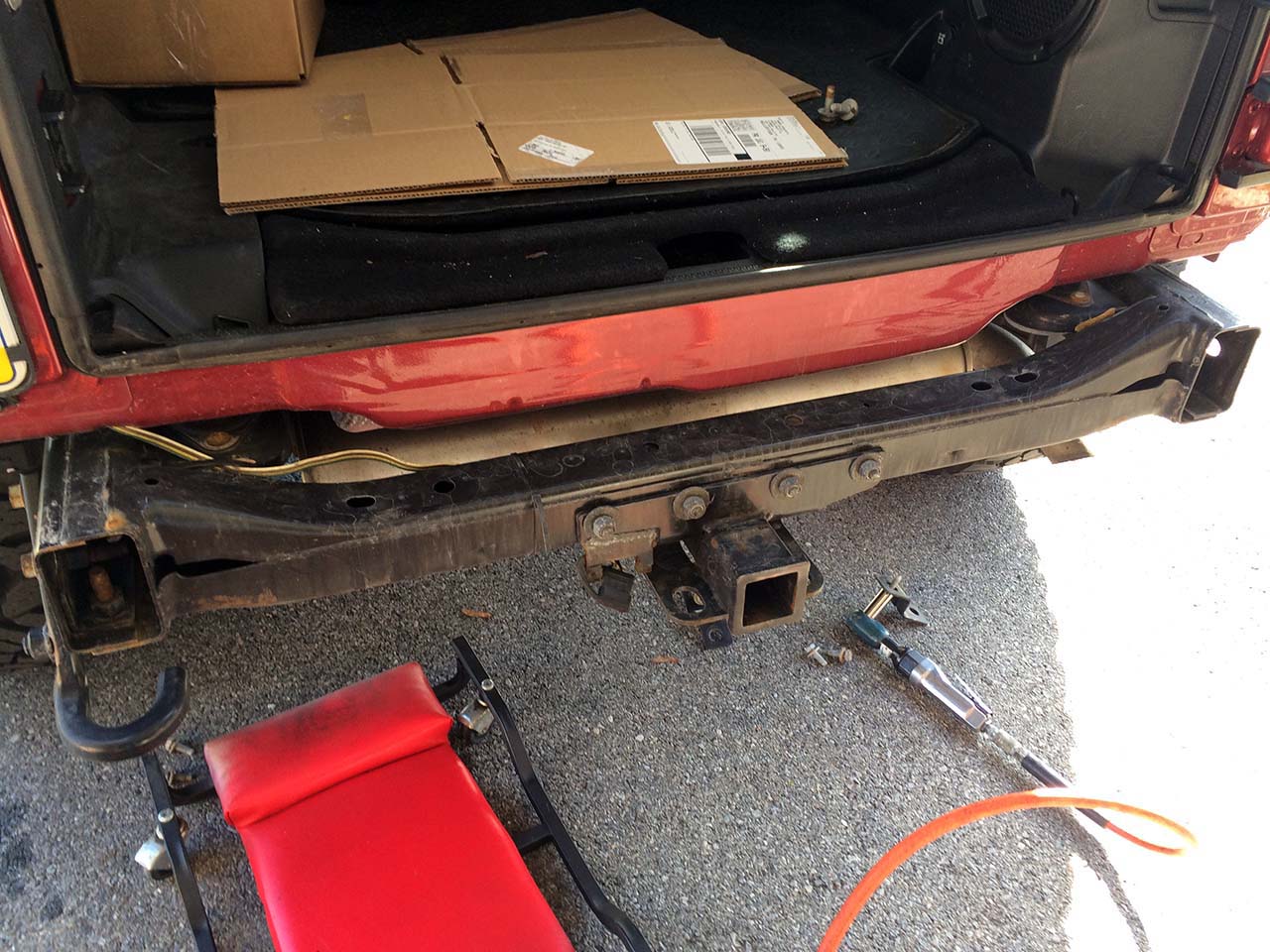

BarricadeRearBumperInstall-011

receiver

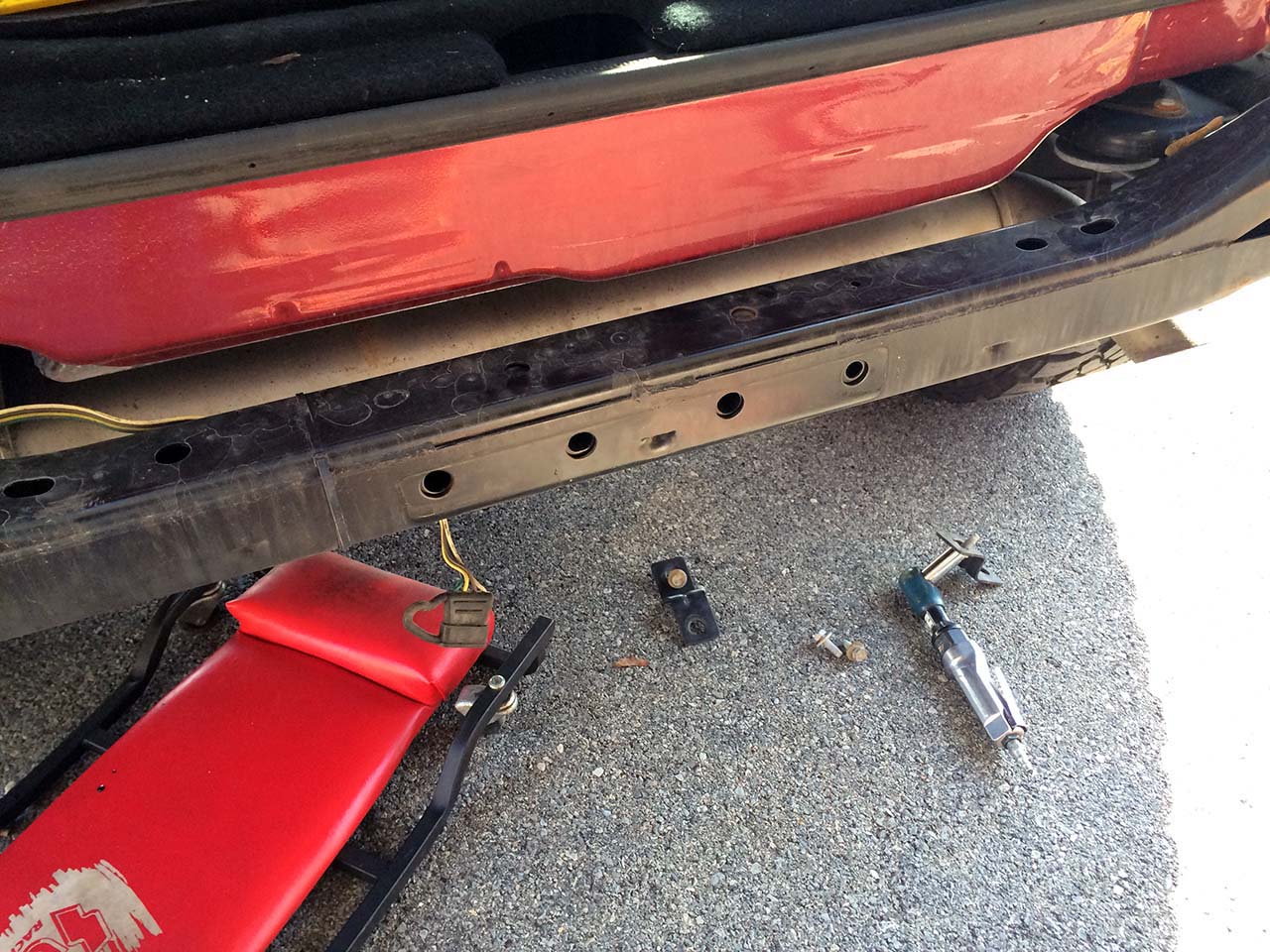

BarricadeRearBumperInstall-013

receiver removed

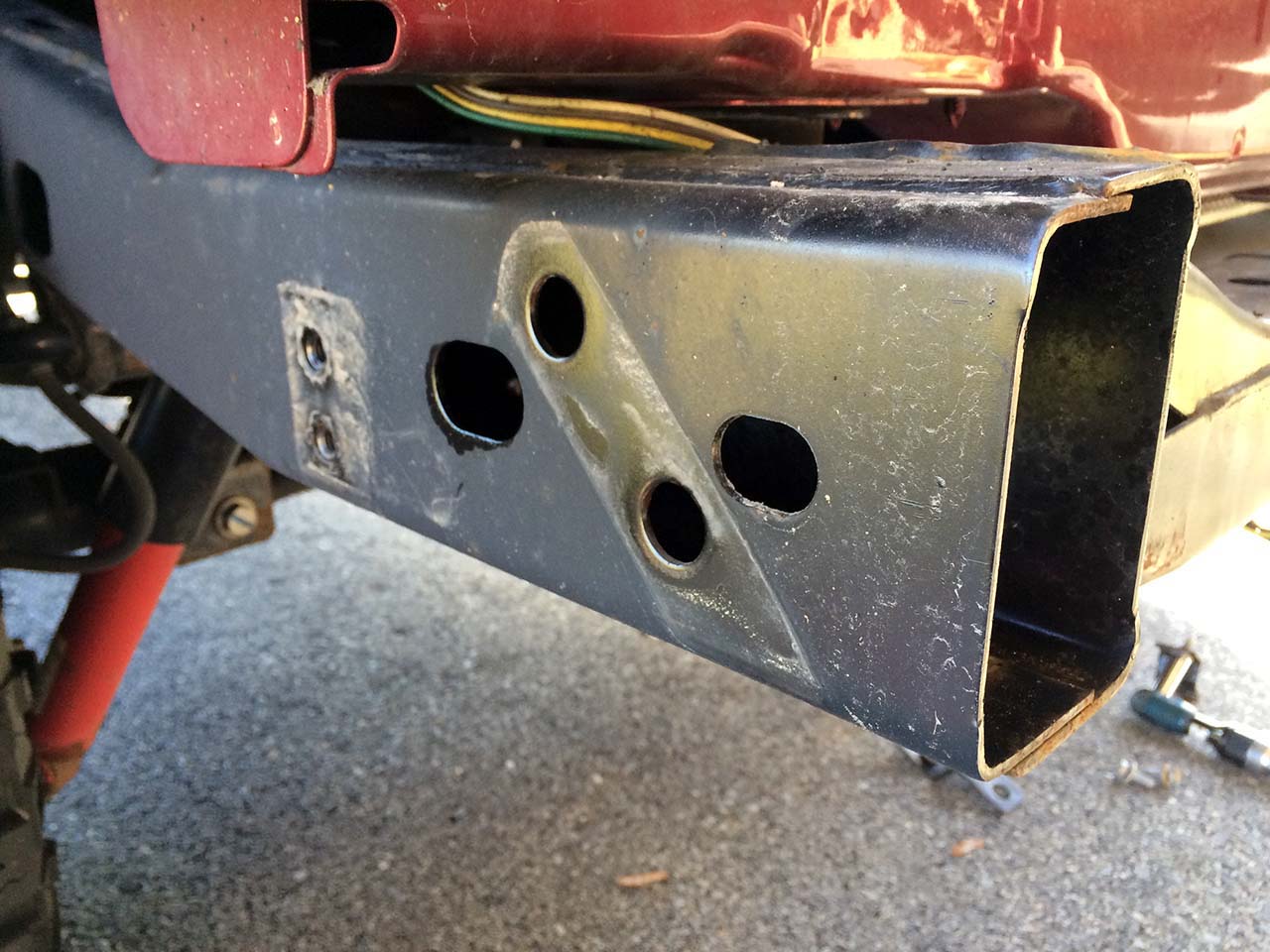

BarricadeRearBumperInstall-014

tow hook mount location

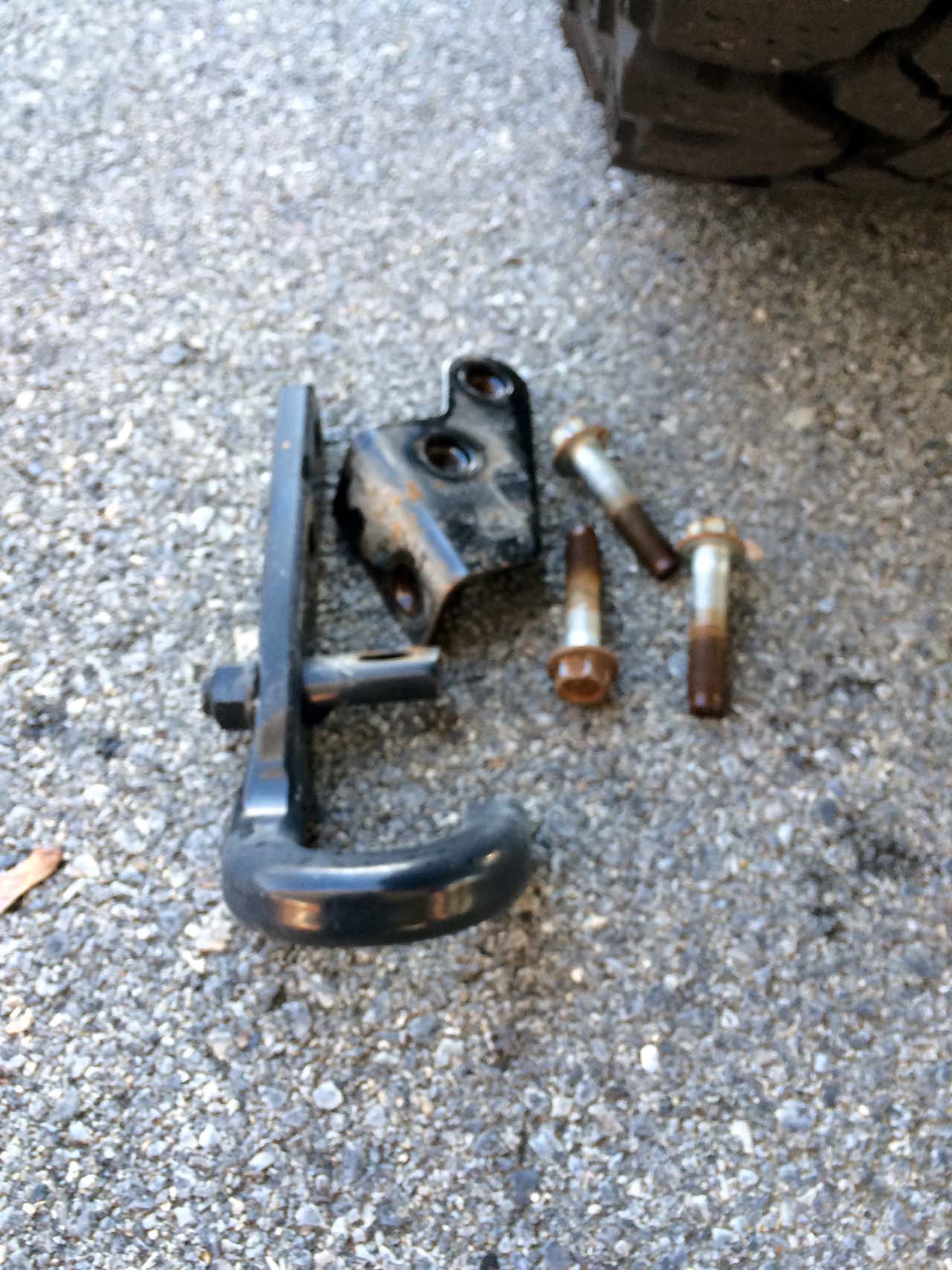

BarricadeRearBumperInstall-015

tow hook removed

Before installing the Barricade bumper insert the bolt plates into the frame rails to line up with the pre drilled holes.  Then place the Barricade bumper up to the rear of the frame.  It helps to have a helper hold the bumper until some bolts are installed.

Place the rear reinforcing plate to the back of the frame over the receiver and insert the 4 provided bolts through the frame and bumper mounts.  Install the 4 provided lock nuts and washers.  Don’t tighten yet.

Install the 4 provided bolts with lock and flat washers into the side mounts.  We found it easier to tighten the 4 center bolts then the outer bolts.  Make sure all bolts are tight.

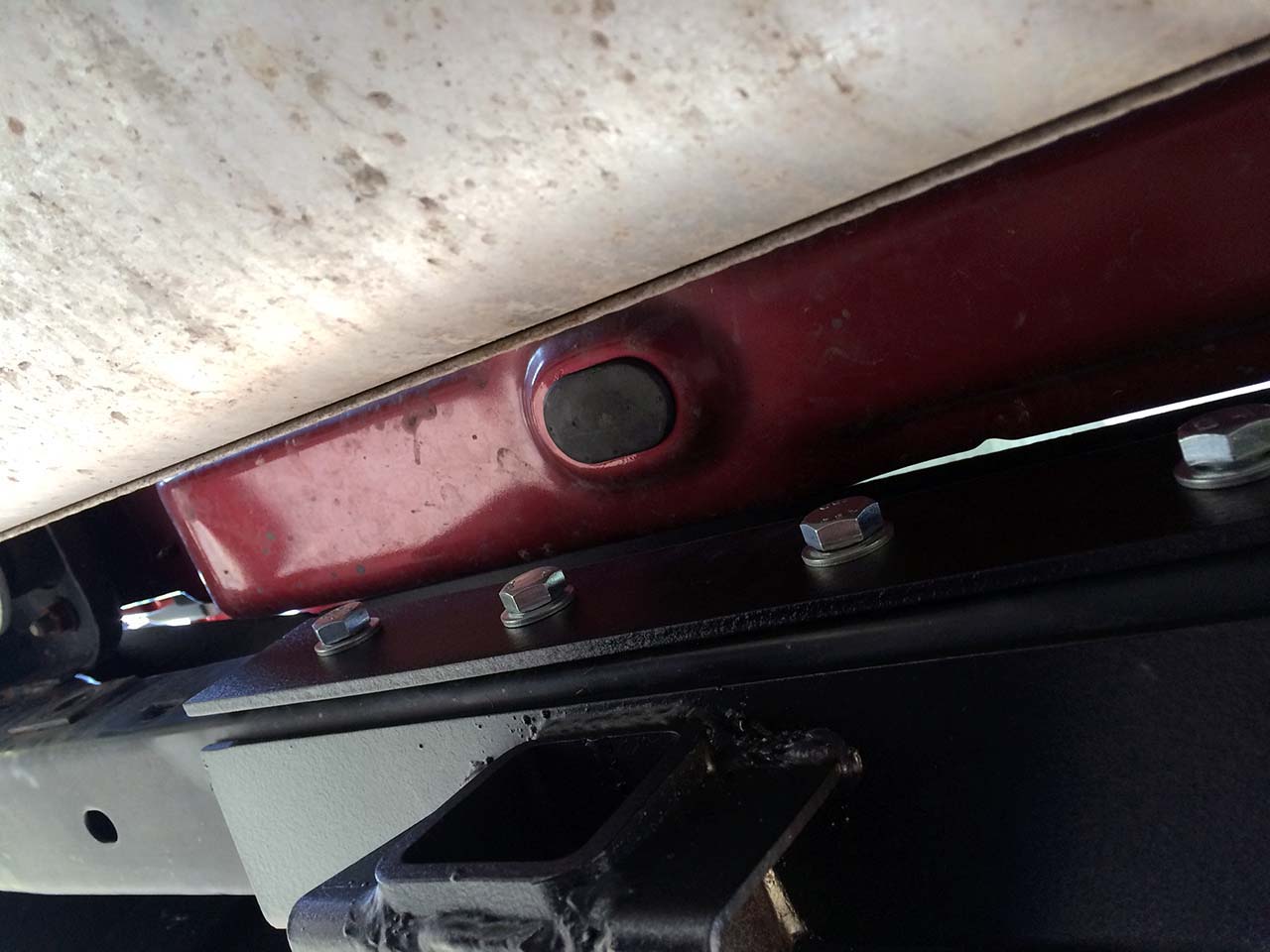

BarricadeRearBumperInstall-016

center bolts

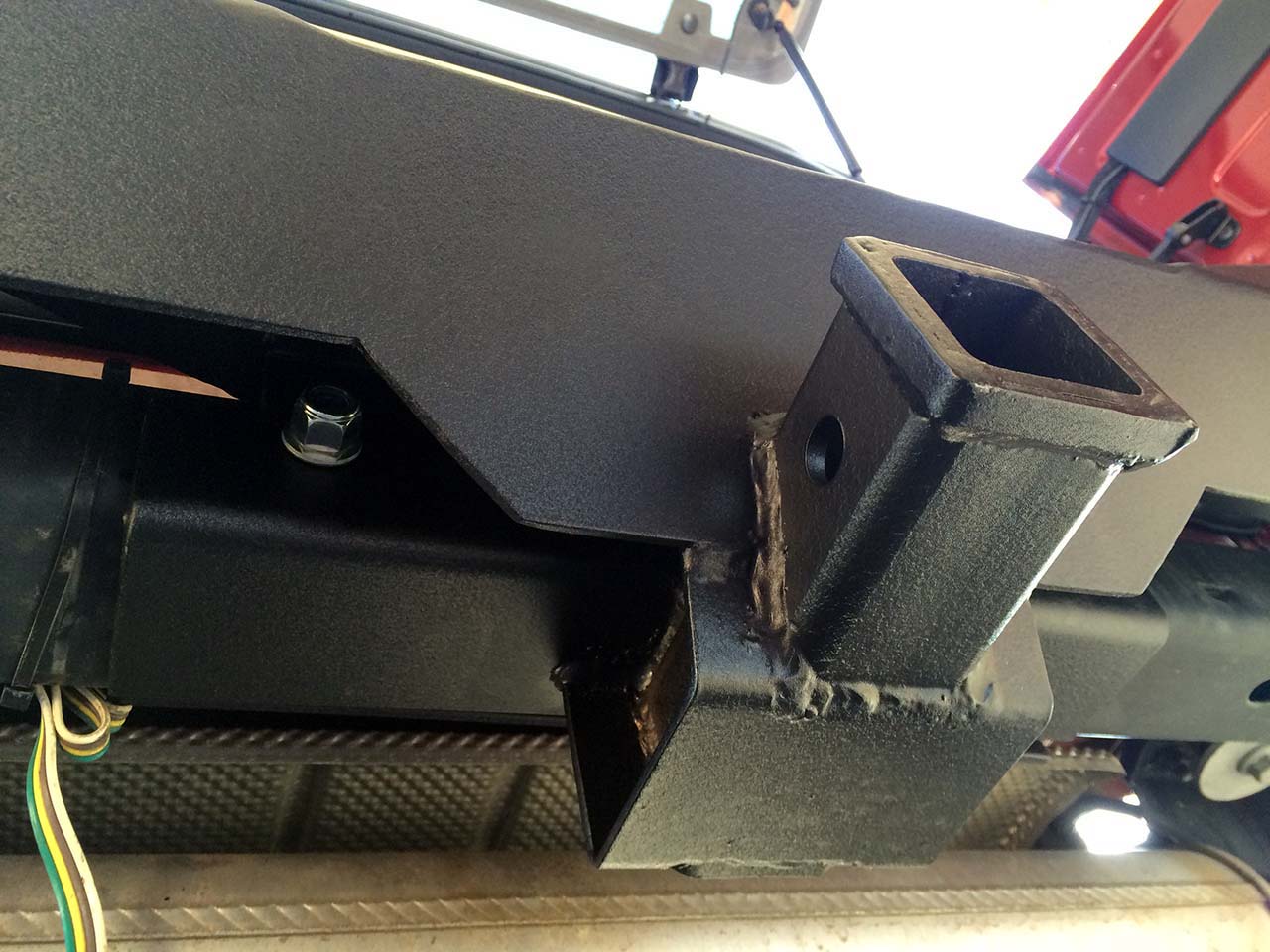

BarricadeRearBumperInstall-017

center locking nuts

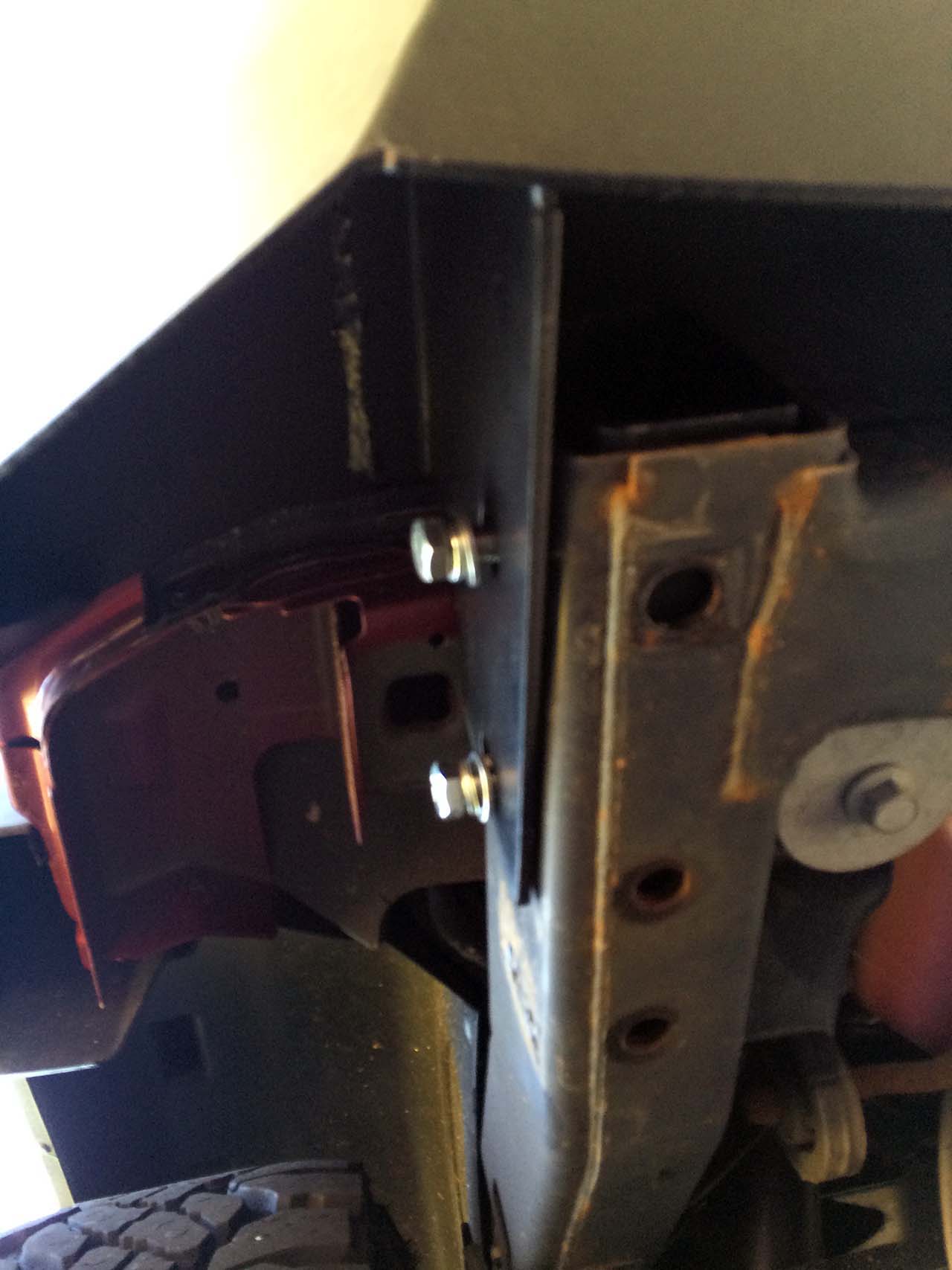

BarricadeRearBumperInstall-018

outer bolts

At this point the bumper is installed.  The final thing we did was secure the trailer light plug to the frame crossmember.

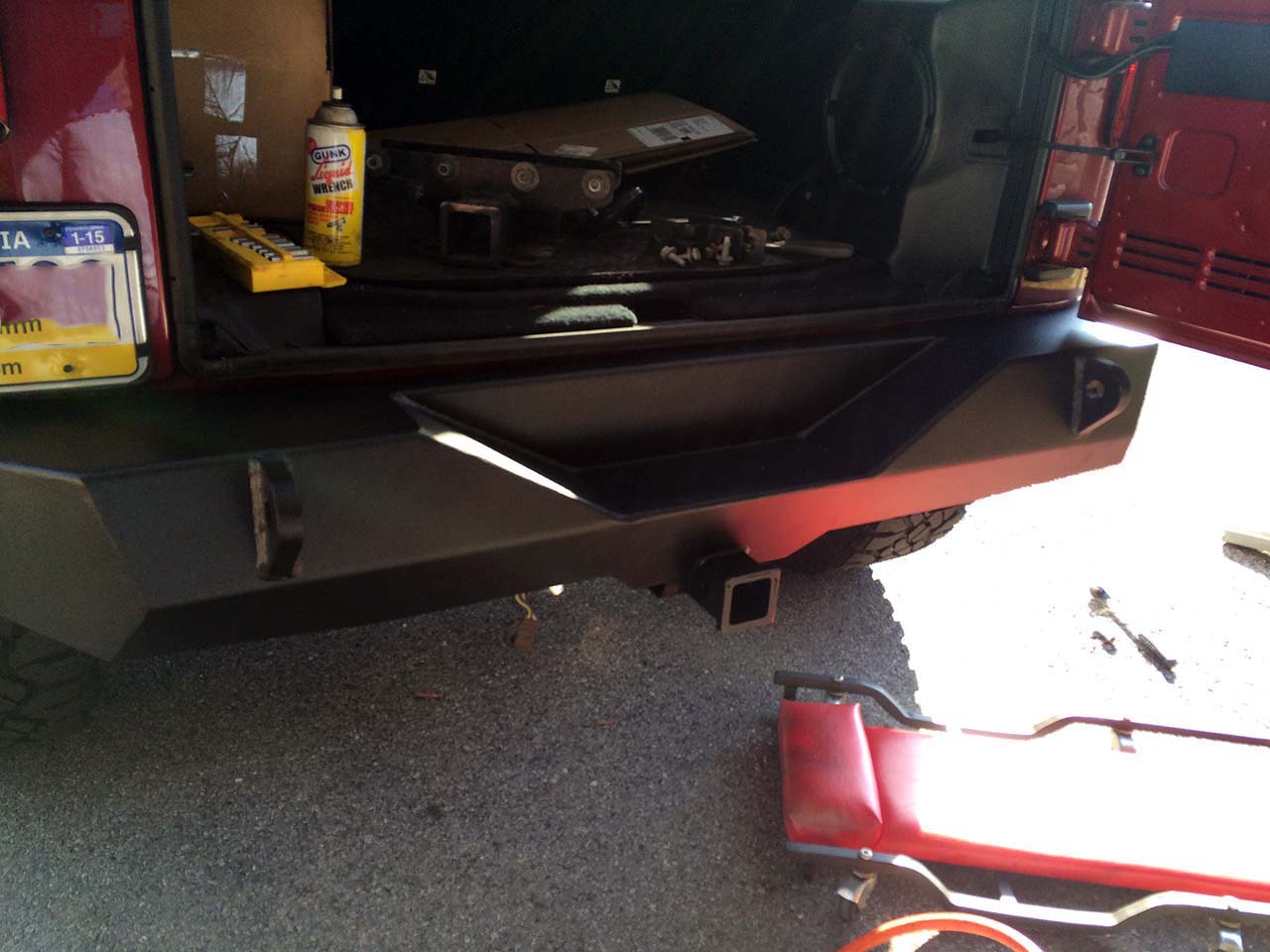

BarricadeRearBumperInstall-019

completed install

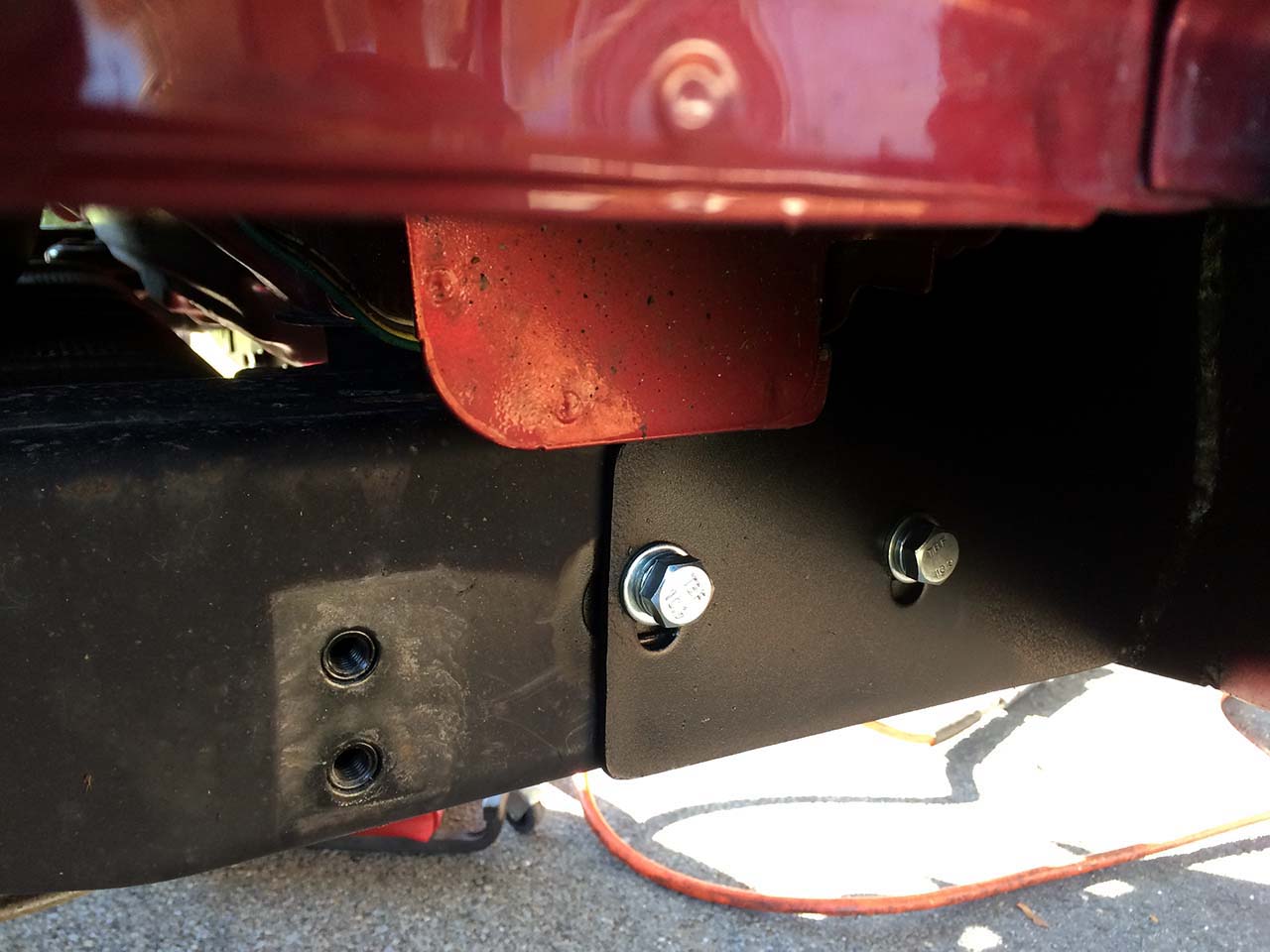

BarricadeRearBumperInstall-020

side mount bolts tight

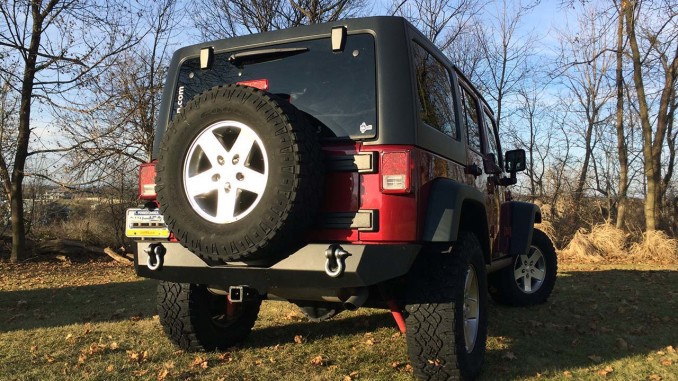

The bumper is much more formidable compared to the plastic factory bumper.  We removed the D-Rings when not in use since they will clank around and wear the finish from the bumper.

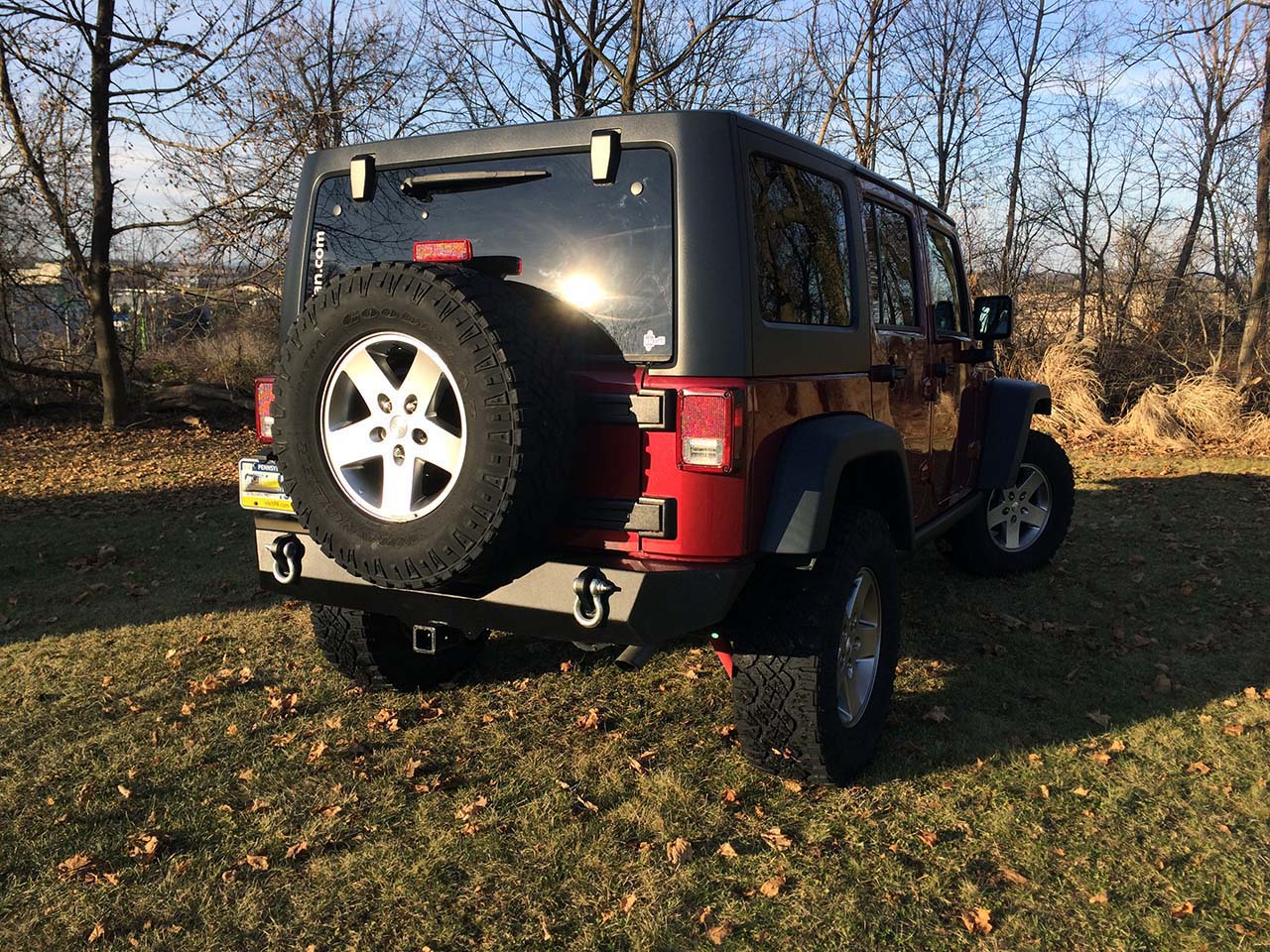

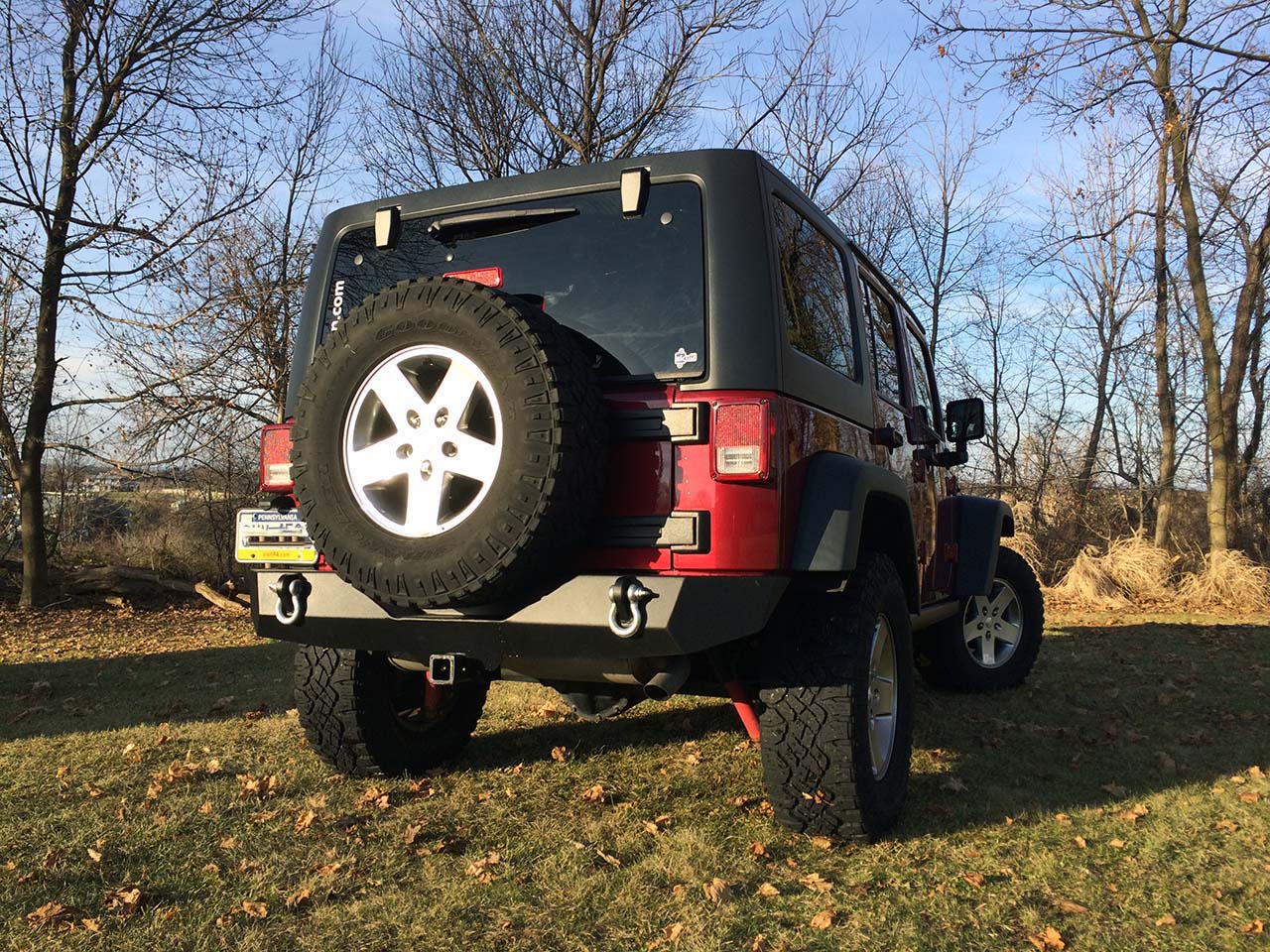

BarricadeRearBumperInstall-021 BarricadeRearBumperInstall-022 BarricadeRearBumperInstall-023

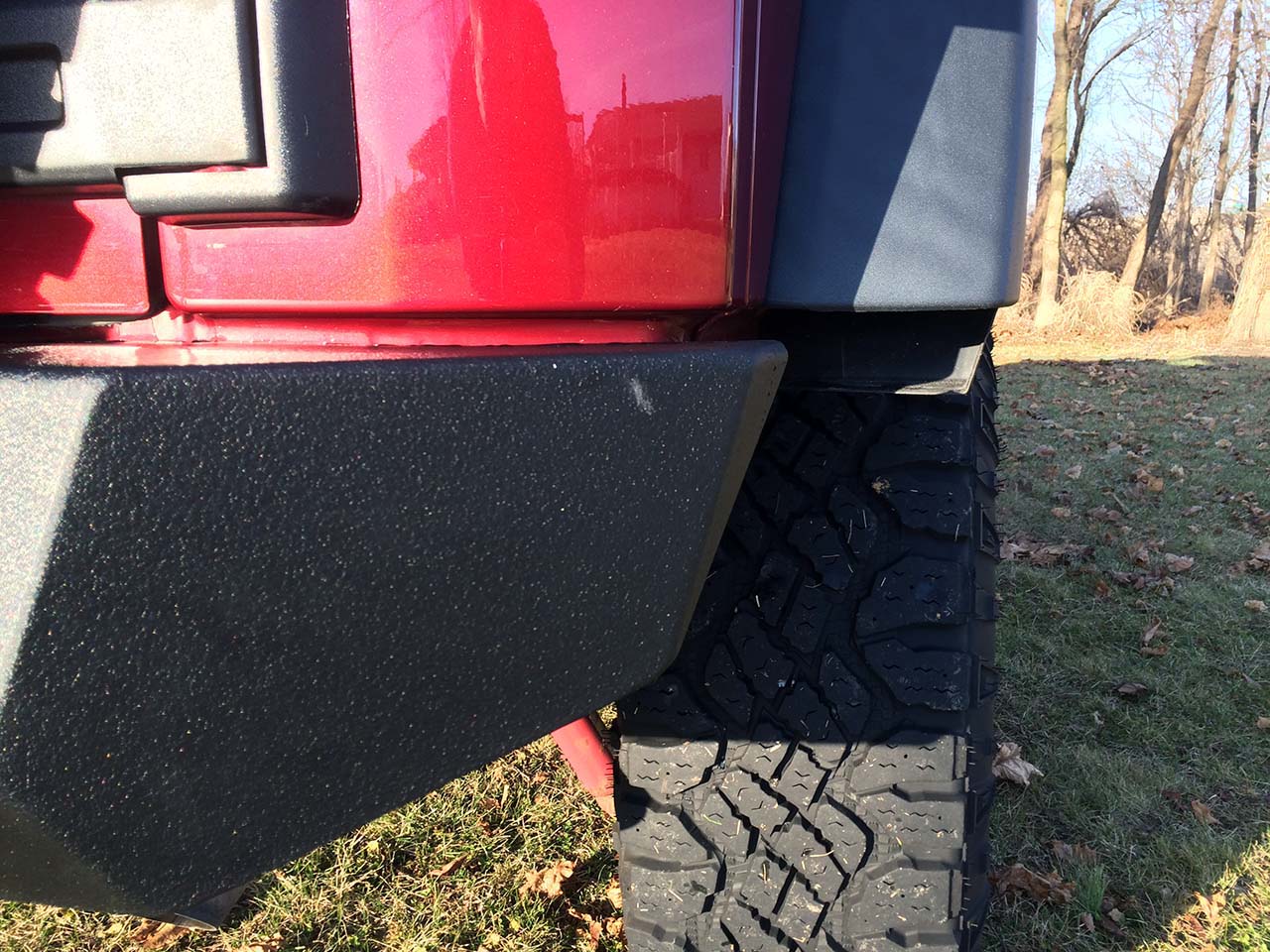

The bumper offers much more clearance to the rear tires.  Optionally you may want to consider trimming the piece of the rear fender lining that originally merged into the factory bumper to clean up the install.
