Barricade 9500lb Winch Install

After installing the Barricade Trail Force HD Bumper on the jeepfan.com JK we knew a winch needed to go on to fill the spot in the center of the bumper.  We knew we wanted a 9500lb winch but didn’t want to break the bank, after some research and comparing we decided to go with the winch that matches the bumper.

barricade-jeep-wrangler-winches-24Winch Specs

  • 9,500 lb., (4310 kgs.) single-line pulling capacity
  • 5.5 hp, 12 volt, series wound motor
  • 3 stage planetary gear with a 195.4:1 ratio
  • 94 feet of 21/64 inch steel winch rope with replaceable hook
  • Line speed under full load is 6.4 feet per minute
  • Weighs 58 lbs and is 21.1 inches by 6.3 inches by 8.6 inches with a mounting footprint of 10 inches by 4.5 inches
  • Black powder coat finish
  • Limited lifetime warranty
  • Heavy duty rubberized remote control with a 12 foot lead
  • Roller fairlead
  • Universal application

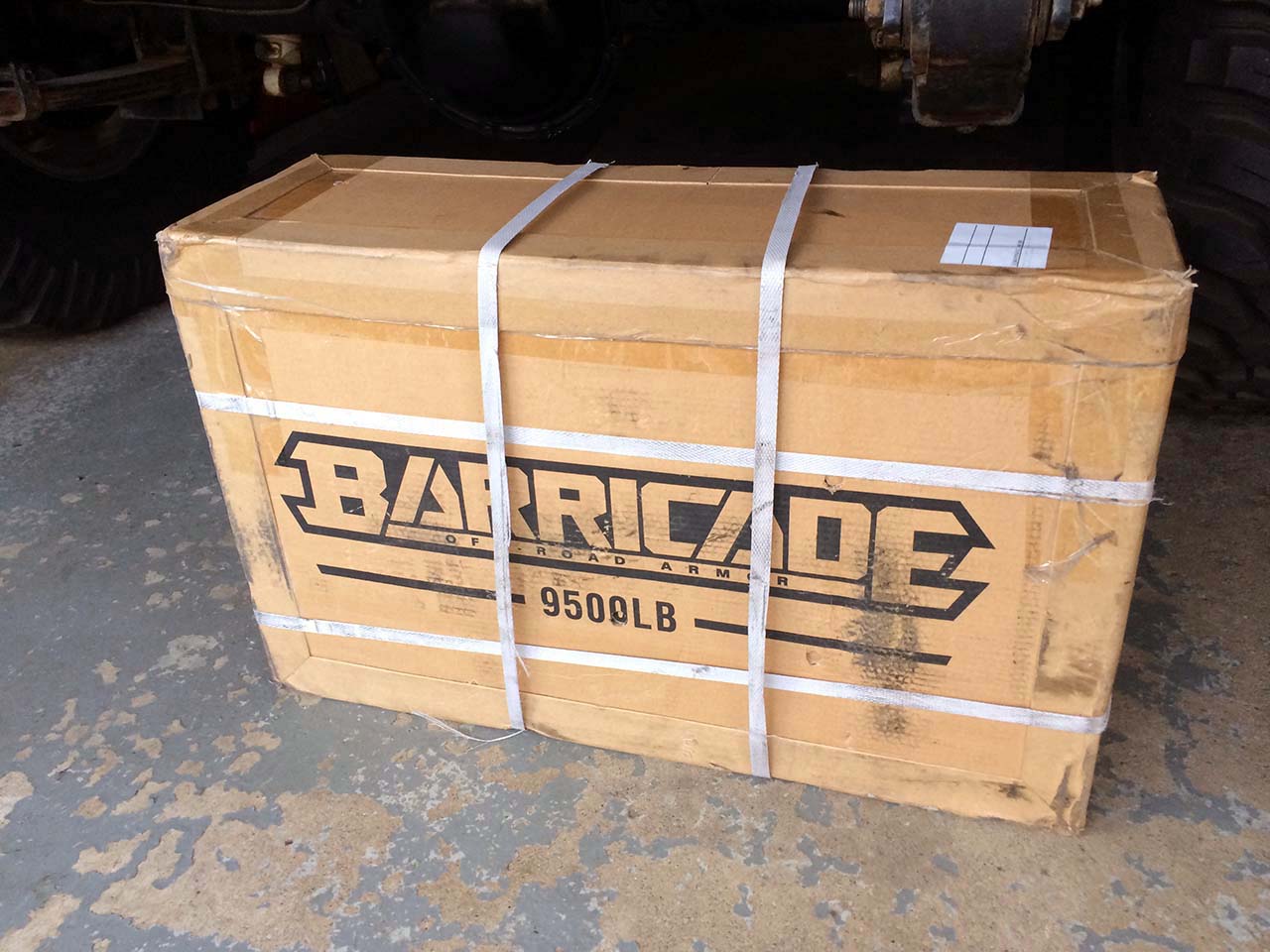

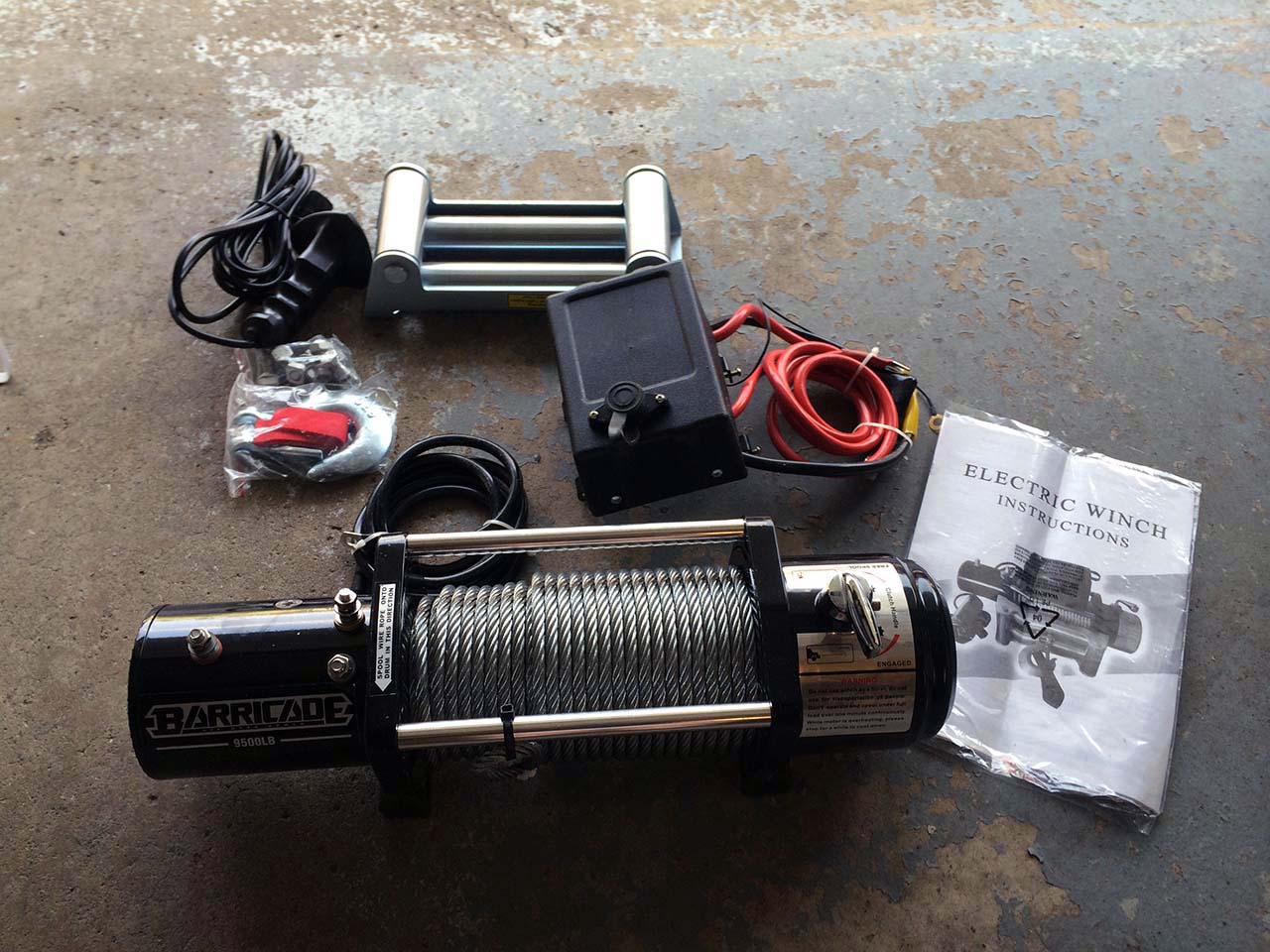

The winch comes with all the parts you need and depending on your bumper or mount installation can take about an hour to two hours.

Barricade_Winch_Install_JK_001a Barricade_Winch_Install_JK_002a

 Installation

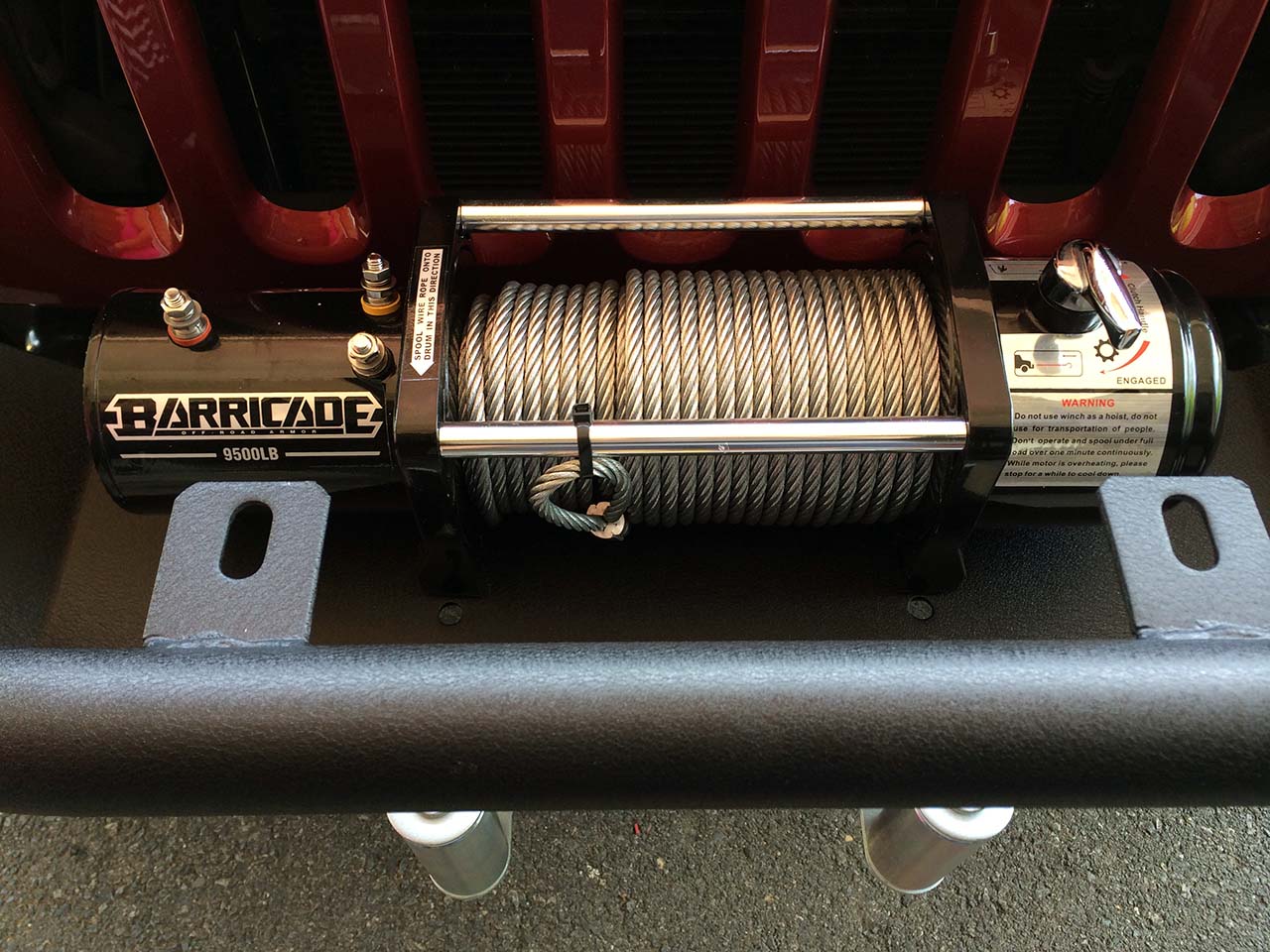

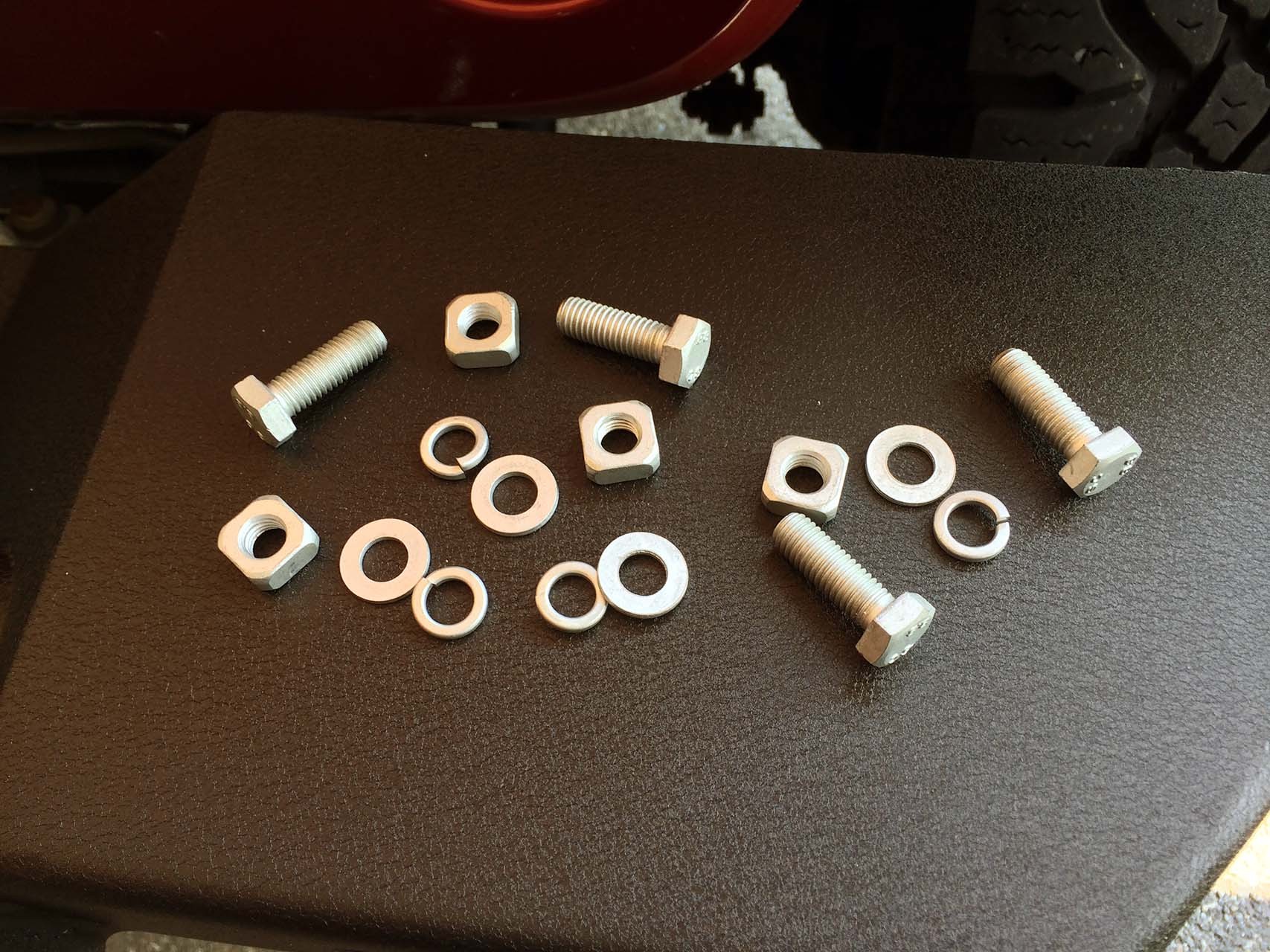

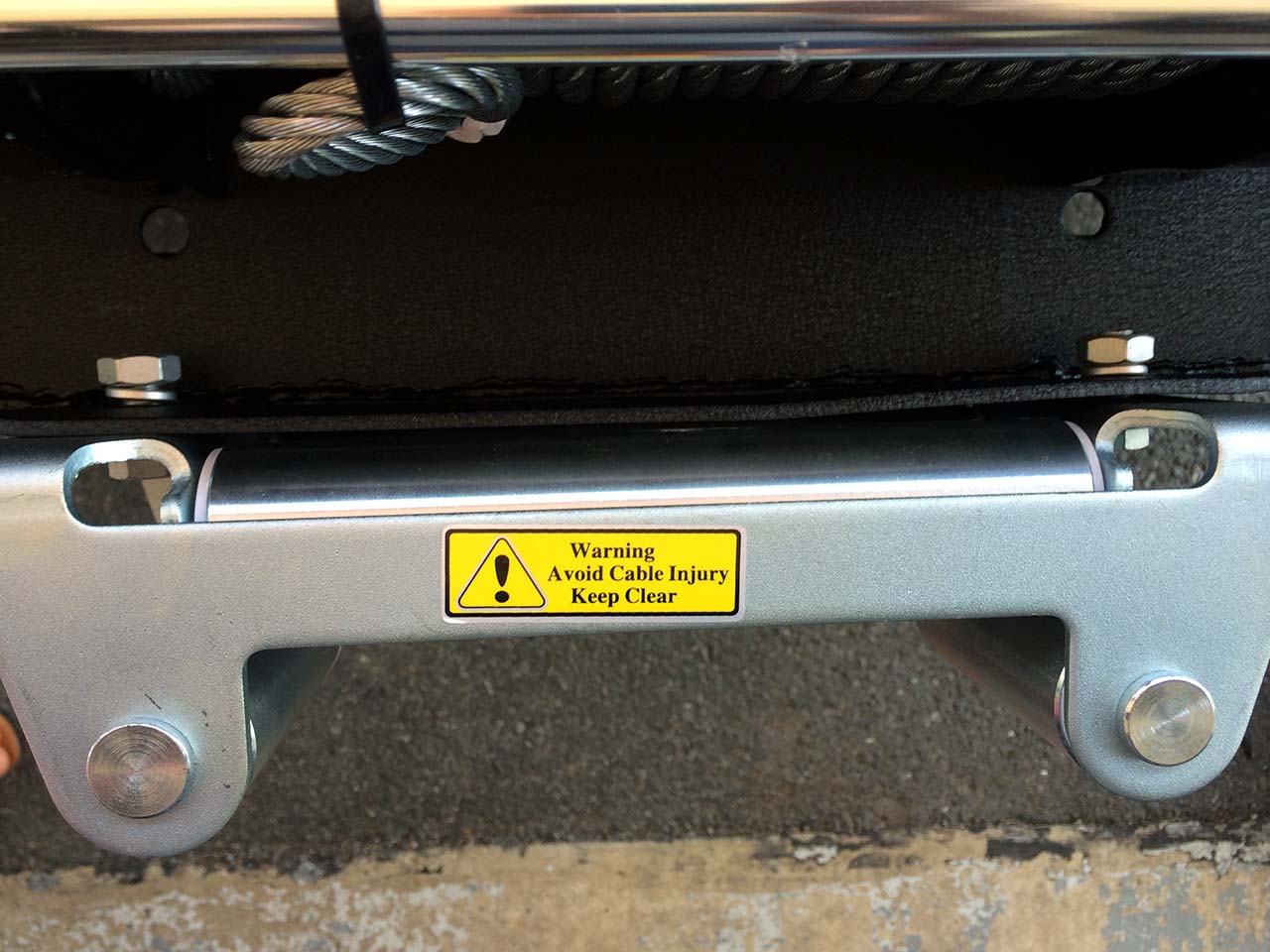

Since our Jeep’s bumper has an integrated winch mount that can be accessed without removing anything this installation is simple.  The first step is to mount the roller fairlead to the front of the bumper using the bolts provided.

Barricade_Winch_Install_JK_003 Barricade_Winch_Install_JK_001 Barricade_Winch_Install_JK_002

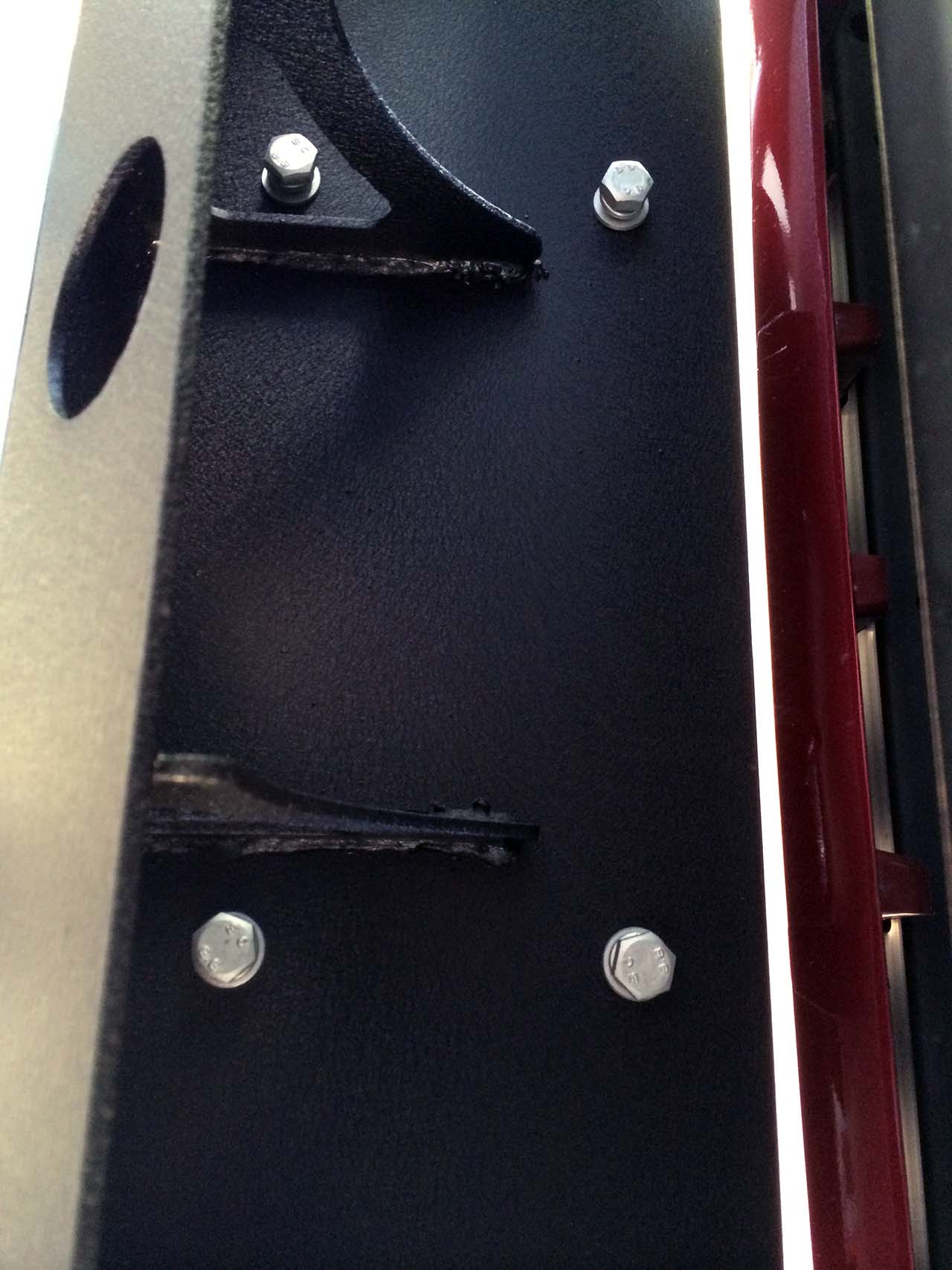

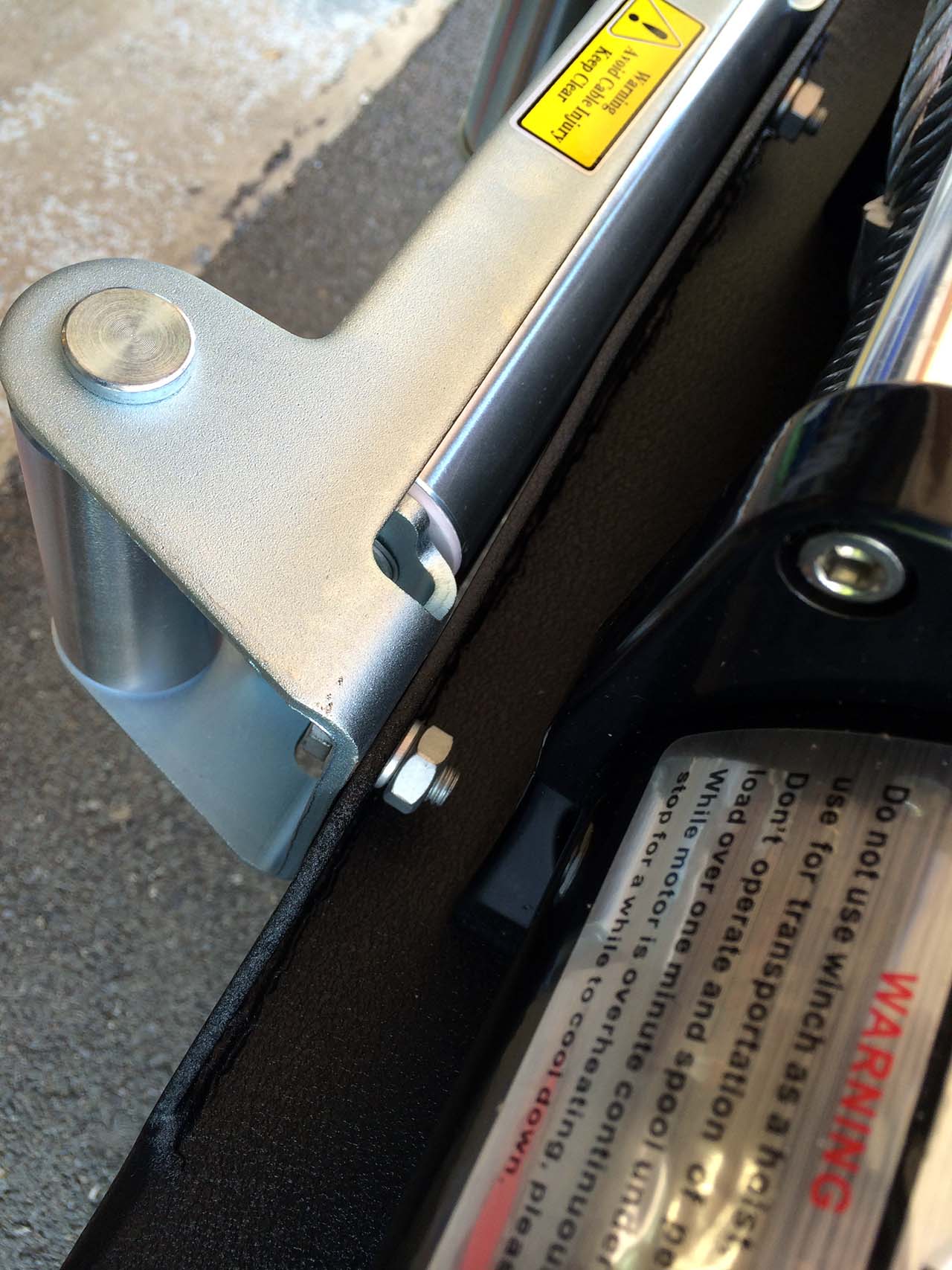

With the fairlead secured locate the winch to the 4 holes in the mount and install/tighten the bolts.

Barricade_Winch_Install_JK_005 Barricade_Winch_Install_JK_006 Barricade_Winch_Install_JK_007

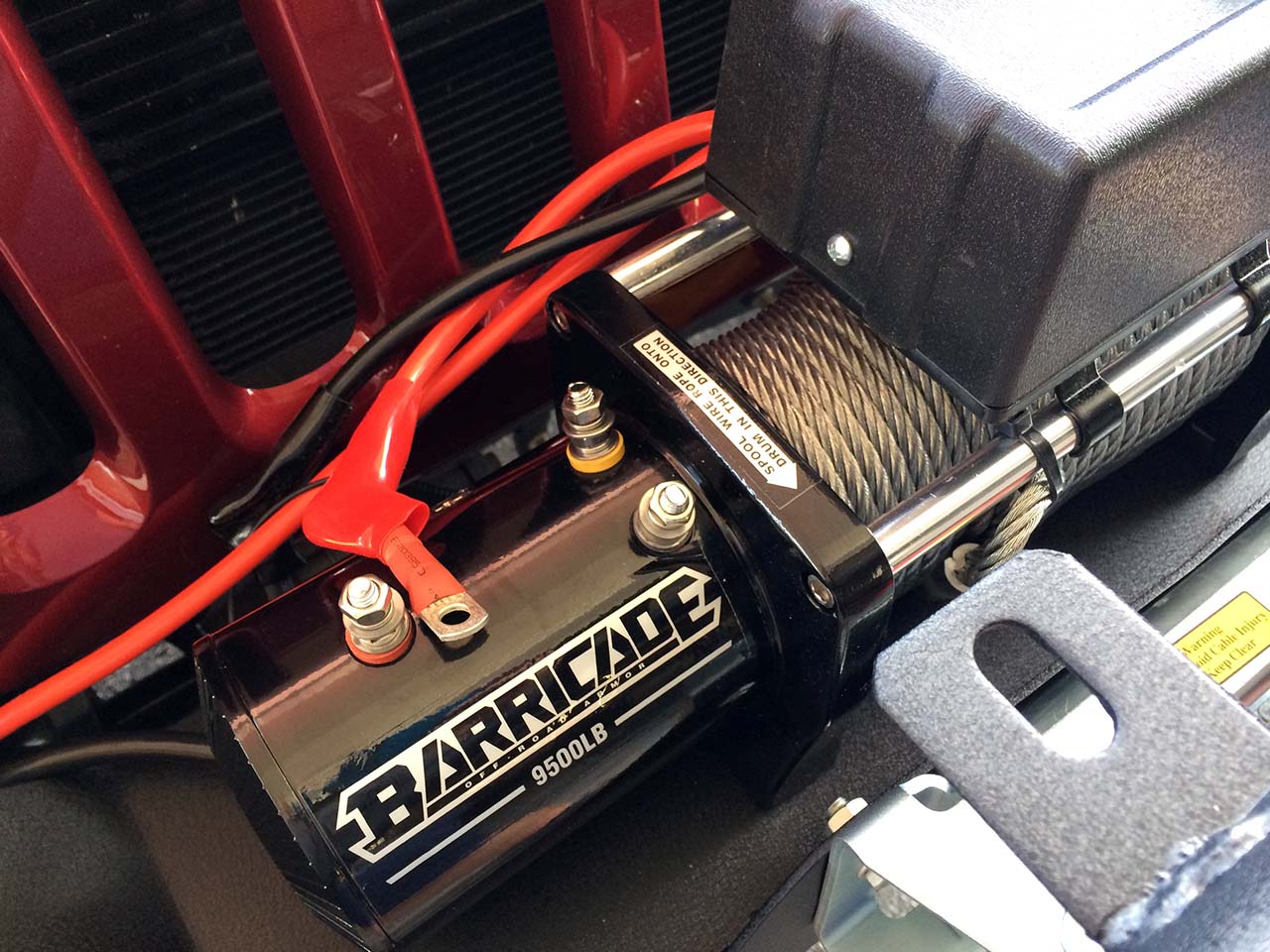

Install the solenoid to the top rails on the winch, secure using the screws.

Barricade_Winch_Install_JK_008

Next page – Wiring it Up
