Main >>  Transmission >>  Factory >> T-5

From JeepTech and JeepTech Publishing LLC, the Jeep knowledge base.

All text is available under the terms of the GNU Free Documentation License.


The T-5 is a light duty transmissions five speed transmission that looks very similar to the SR-4 and T-4, except for the bulge the shift lever housing for the overdrive. The T-5 also looks about 10% bigger all around than the 4 speeds. This transmission was manufactured by Borg-Warner and may say Ford on the top cover. The case is aluminum and has a casting numbers on the drivers side of 13-52. The T-5 has a 1 1/8" 10 spline input shaft and a 23 spine output shaft.



The T-5 was used in CJs from 1982 until 1986.


Transmission 1st 2nd 3rd 4th 5th Rev
T-5 4.03 2.37 1.50 1.00 0.8 3.76

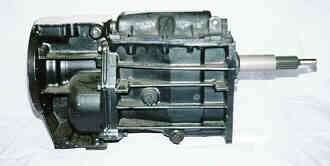

Side view of T-5 transmission.


Front view of T-5 transmission.

Back view of T-5 transmission.

Drivers side view of T-5 transmission.

Passenger side view of T-5 transmission.
