The BA 10/5 is a light duty five speed transmission. It is smaller
than the AX-15 and it is manufactured by Peugeot in France. The case
splits lengthwise along the top and bottom, while the AX-15 splits
open around its circumference. The input shaft is 1 1/8" 10 spline and
the output shaft is 21 spline.
Usage
The BA 10/5 was used in all 4.2L equipped Wranglers from 1987 to
mid-1989. It was also used in 4.0L Cherokees (XJ) and Comanches (MJ)
over the same years.
| Transmission |
1st |
2nd |
3rd |
4th |
5th |
Rev |
| BA 10/5 |
3.39 |
2.33 |
1.44 |
1.00 |
0.79 |
N/A |
A
driver's side shot of a BA 10/5 for comparison. Notice how the BA
10/5 doesn't have the regular ribbing on the driver's side
compared to the AX-5. The passenger side of the BA 10/5 does have
regular ribbing. The main case of the BA 10/5 is made of two
pieces bolted together, where as the AX-5 main case is one solid
piece of cast aluminum.

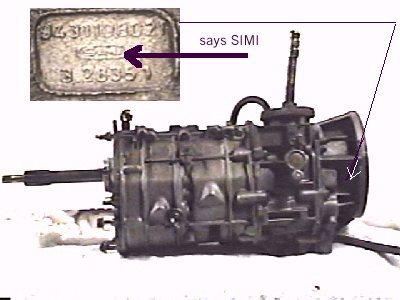

Drivers side. Note "SIMI" and the number 3.28351 cast in the side.

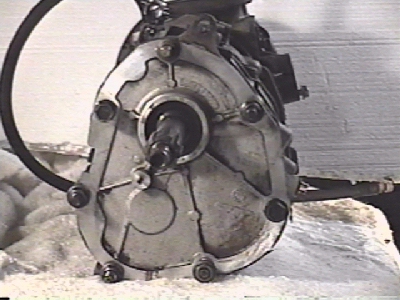

From the front with the bell housing removed.

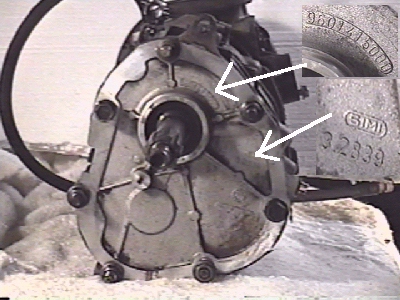

From the front with the bell housing removed. Note "SIMI" and the
number 3.2839 cast in the front.

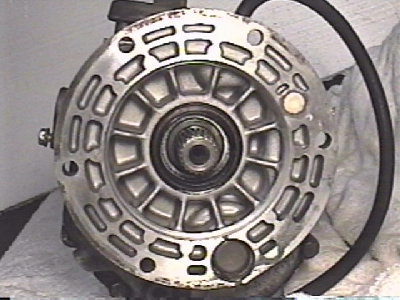

Back view of the BA 10/5

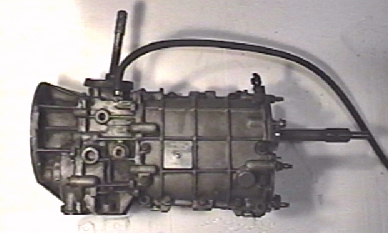

Passenger side view of the BA 10/5

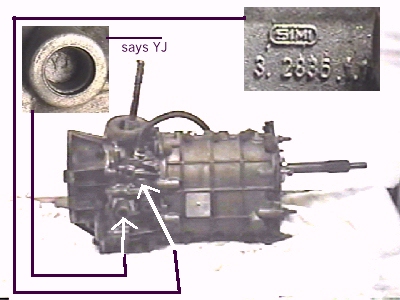

The passenger side. Note the cool detail shots David got. The "YJ"
in the plug and "SIMI" and 3.2835 cast on the side. The light
square area is the build date tag riveted to the side.

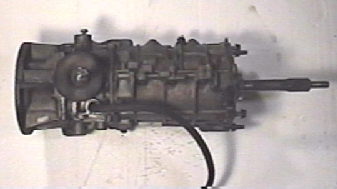

Top
view of the BA 10/5
