Wrangler JK Brake Extension Brackets

Pro Comp Bracket Diagram

If you have a 2011 to 2016 Jeep Wrangler JK and plan on lifting it you will need to deal with the front brake lines.  In 2011 Jeep added a bracket that attaches to the bottom of the spring perch just in front of the bottom shock mount.

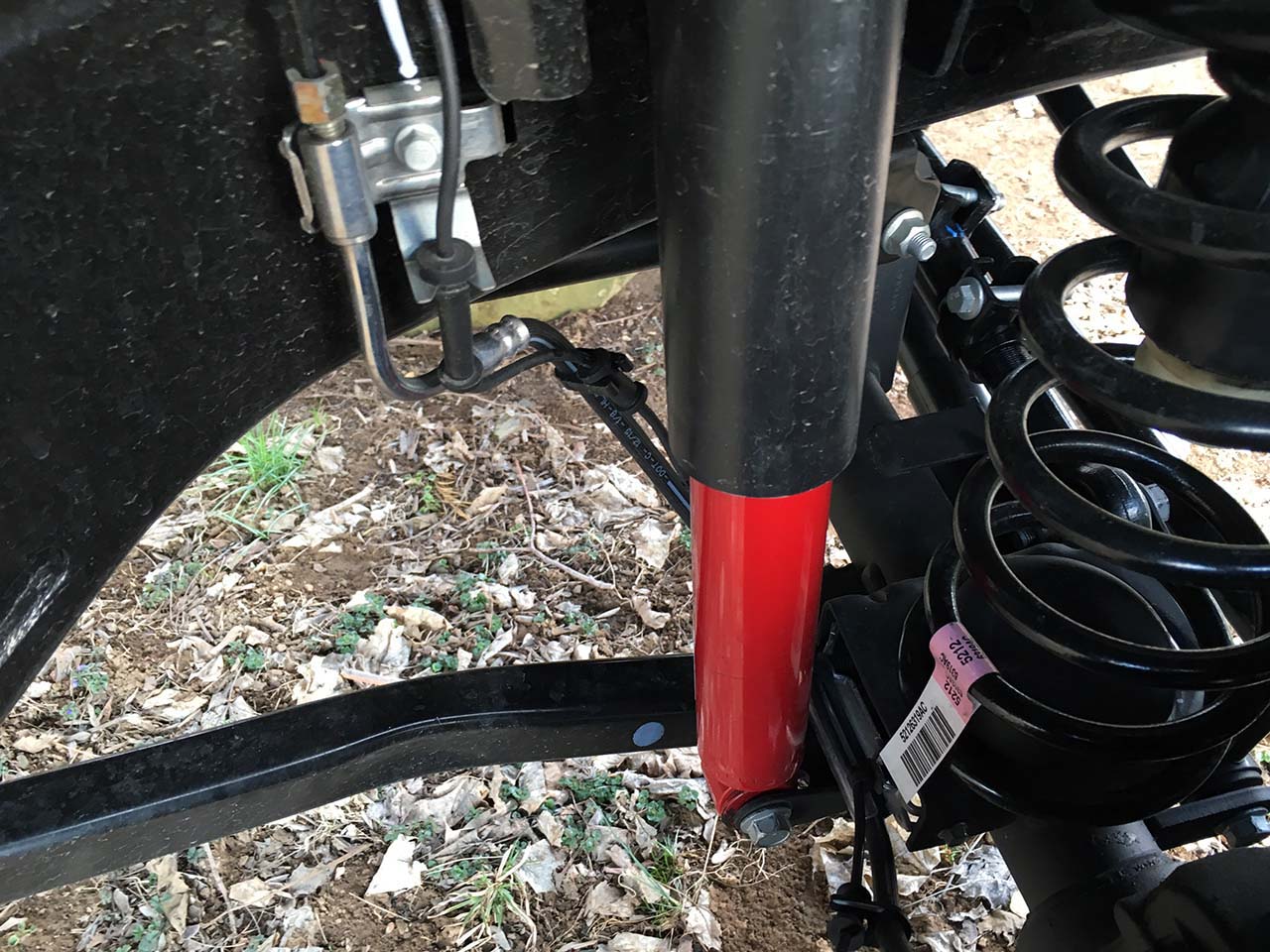

Stock Bracket Location

Stock Bracket Location

This bracket is useful to keep the brake lines from getting caught up in the coil springs when they are compressed but will cause the line to pull tight when the suspension extends after a lift is installed.

Many lift systems seem to ignore this issue or offer a messy solution.

One solution is to pry open the bracket to free the brake line and cut the clips for the ABS lines.  Usually many kits will tell you to do this as well as loosely attach the lines to the shocks.  This setup works but isn’t the best.

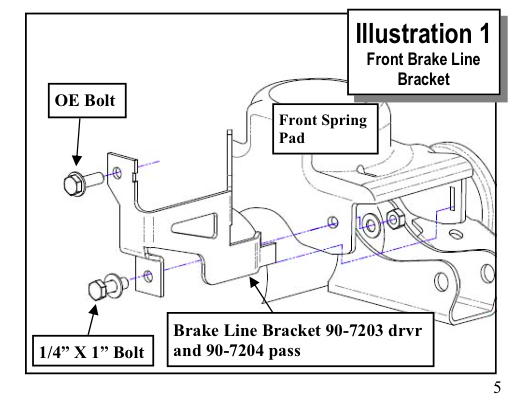

Pro Comp Bracket Diagram

Pro Comp Bracket Diagram

Doing a little research we came across a nice bracket made by Pro Comp that solves this problem.  Luckily the bracket is available to buy loose from the kit from Summit Racing.

The part numbers with Summit Racing links are…

Driver Side – 90-7203, Passenger Side 90-7204

We ordered a set of these for the jeepfan.com 2016 JKU RHR after we installed a Teraflex 2.5″ Budget Boost Lift as part of our $3K JK Project.

Installation

We painted the brackets to keep the job neat.  Remove the tire and unbolt the bottom shock mount.  Unbolt the brake bracket and pivot the bracket to free it from the mount.

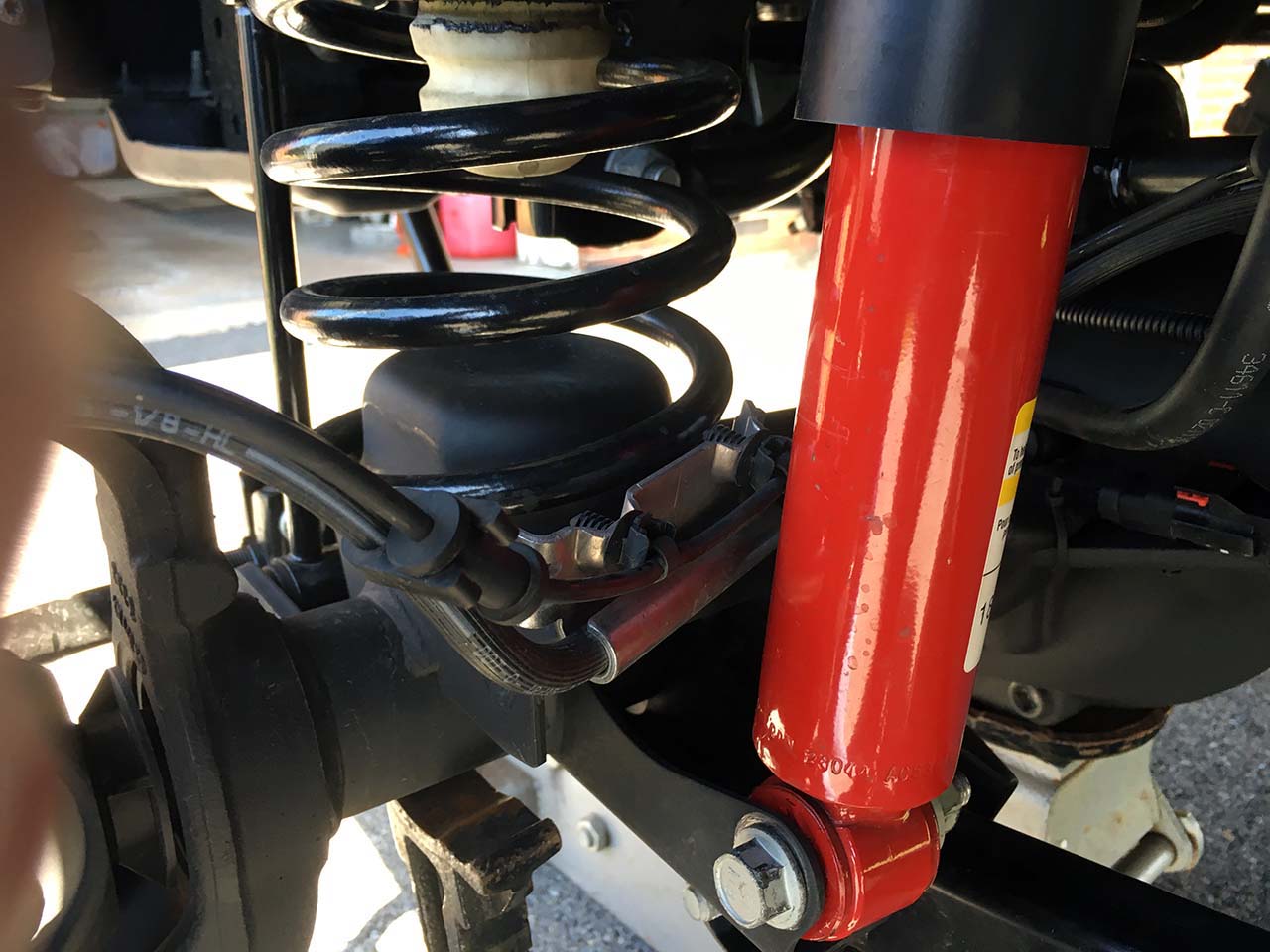

Line Stretched

Line Stretched

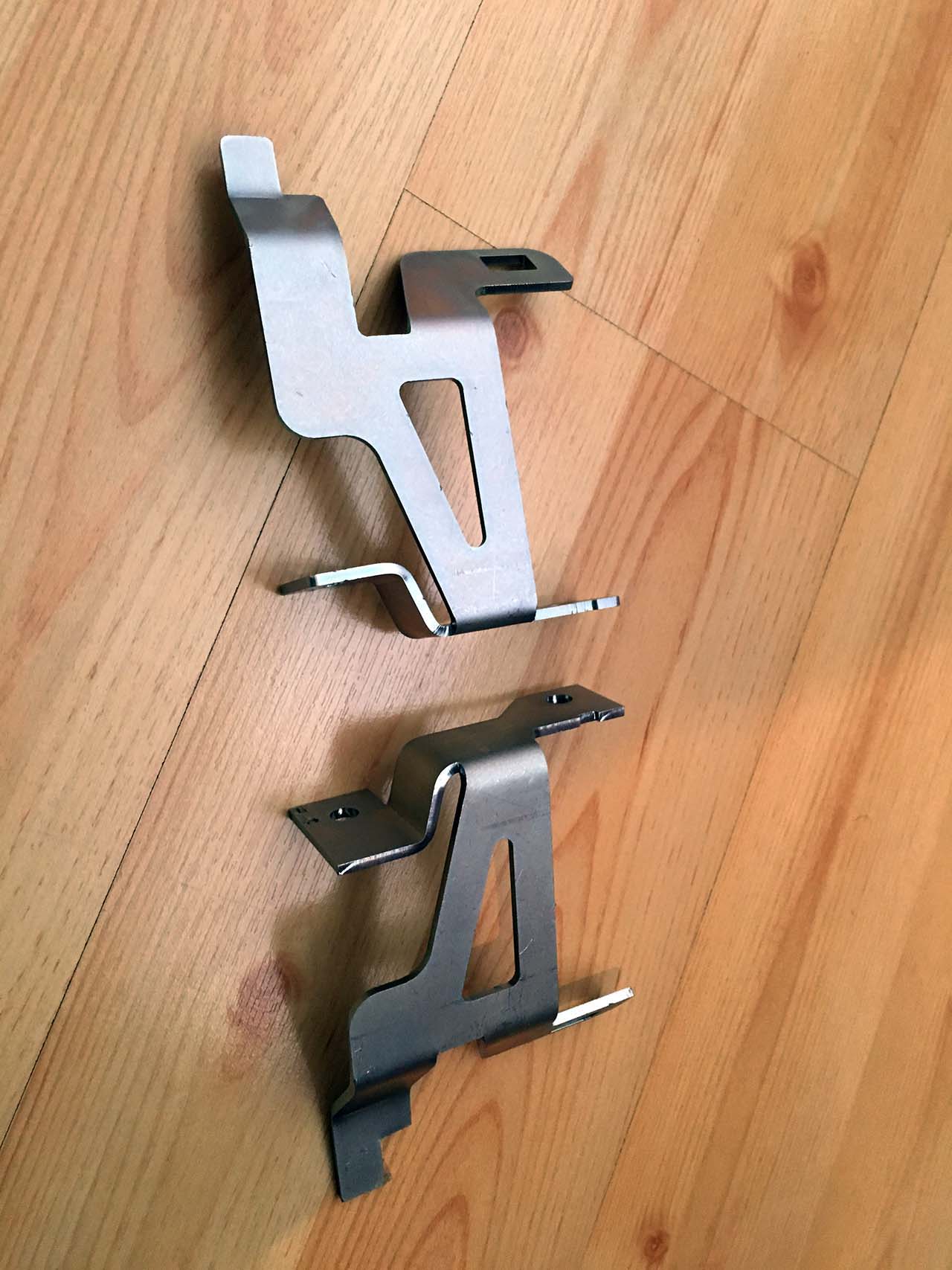

Brackets

Brackets

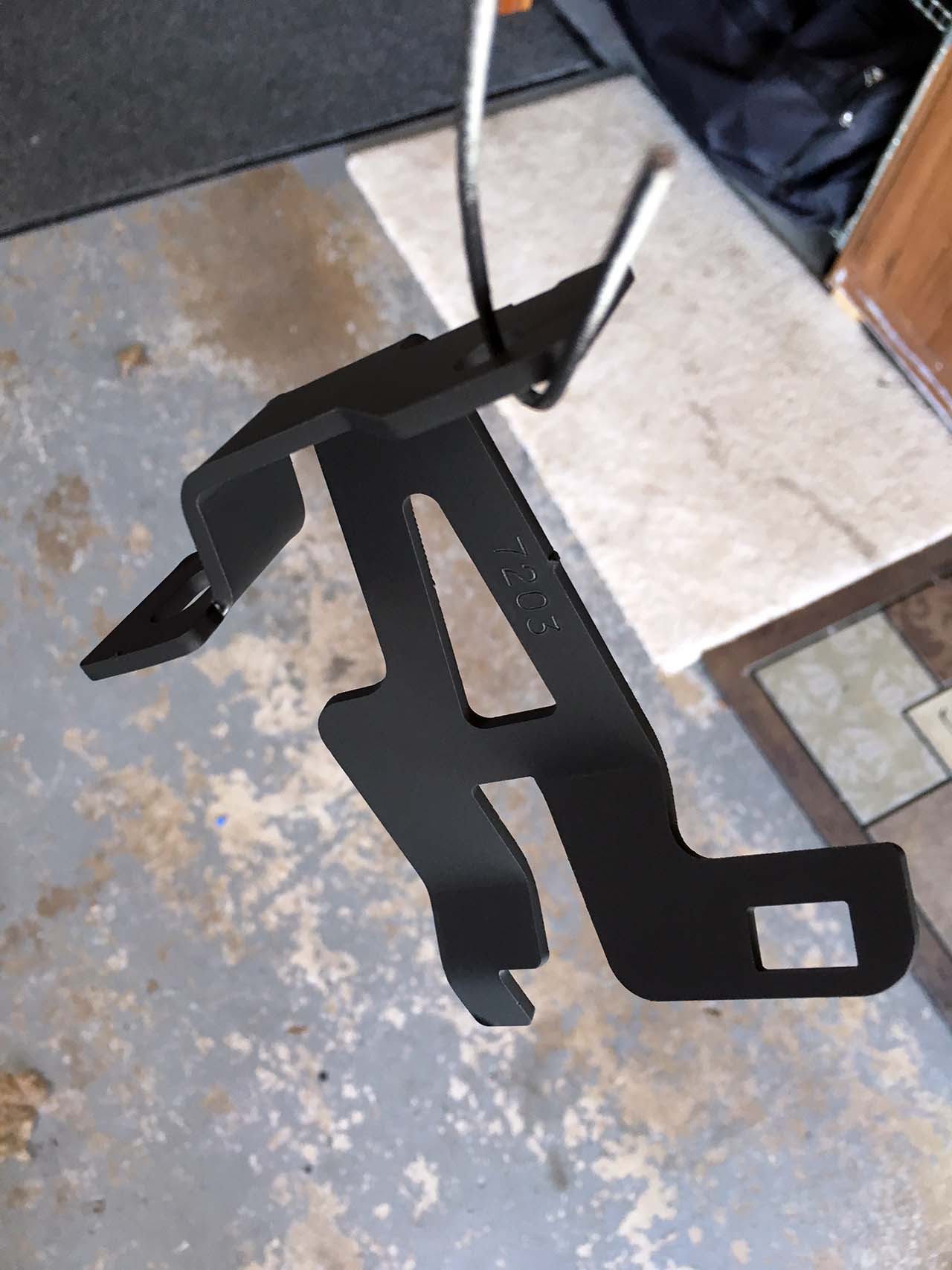

A Little Paint

A Little Paint

Stock Bracket Location

Stock Bracket Location

JK-Brake-Brackets-106

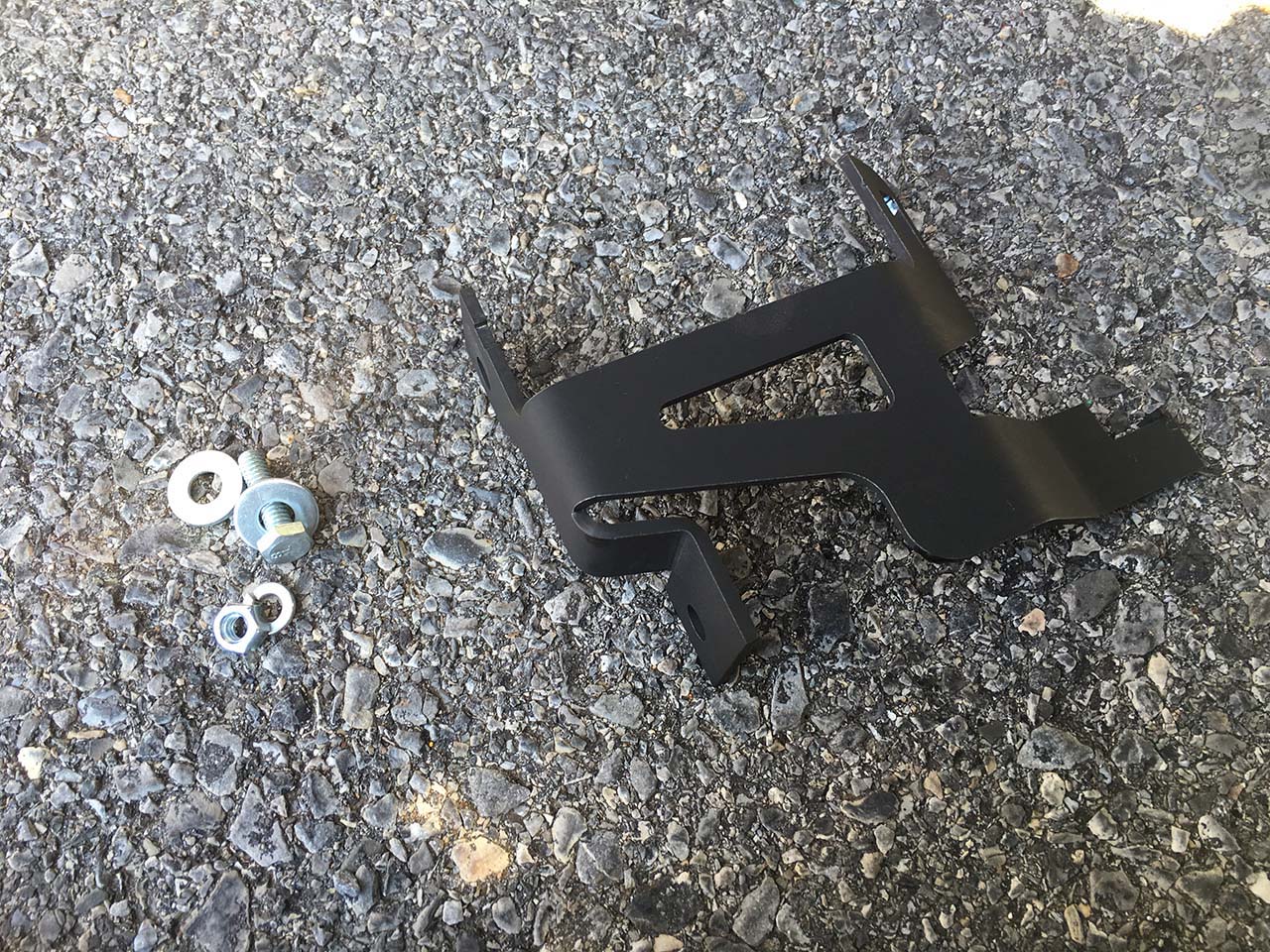

Bracket Parts

JK-Brake-Brackets-107

OEM Bracket Loose

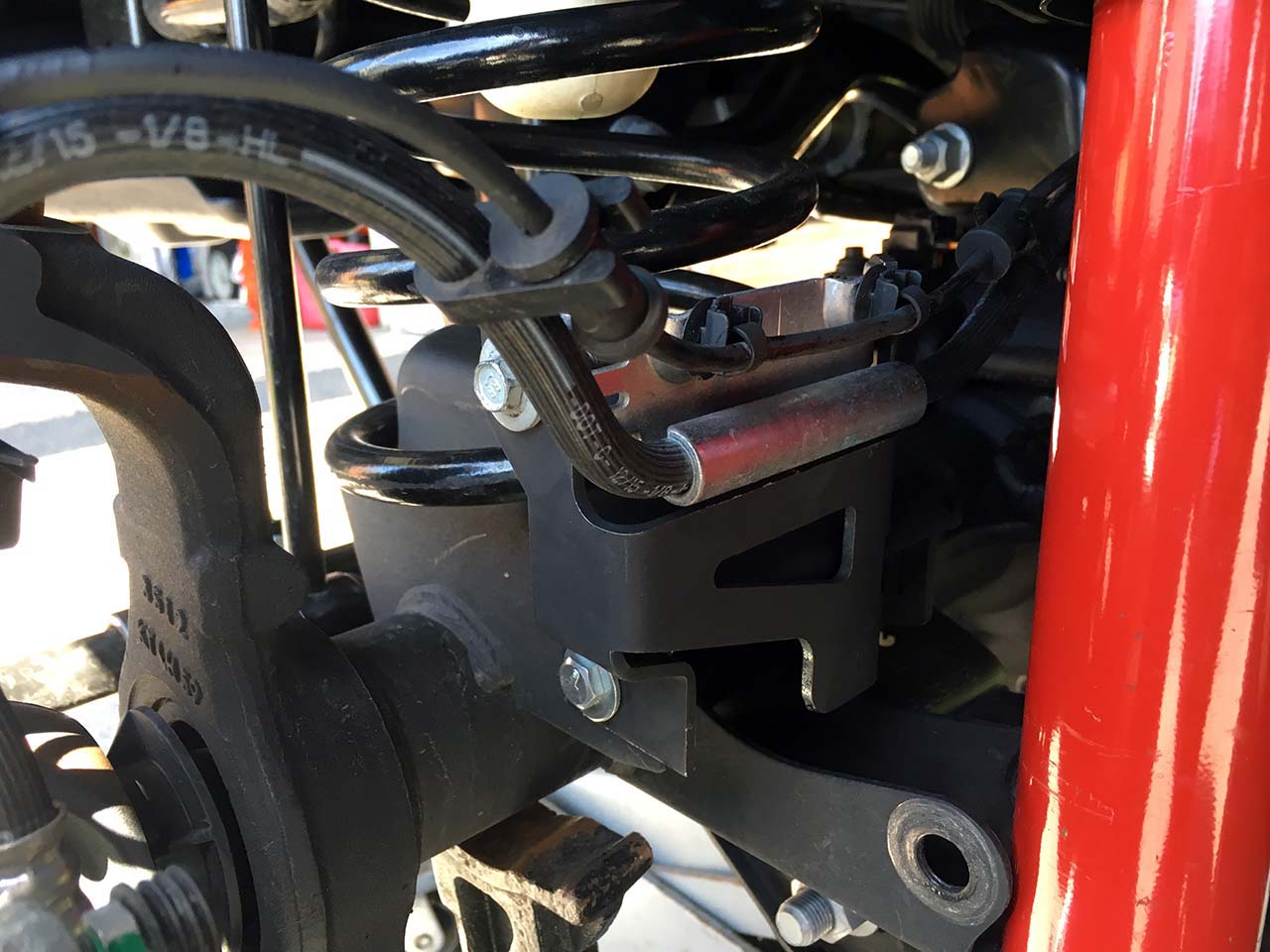

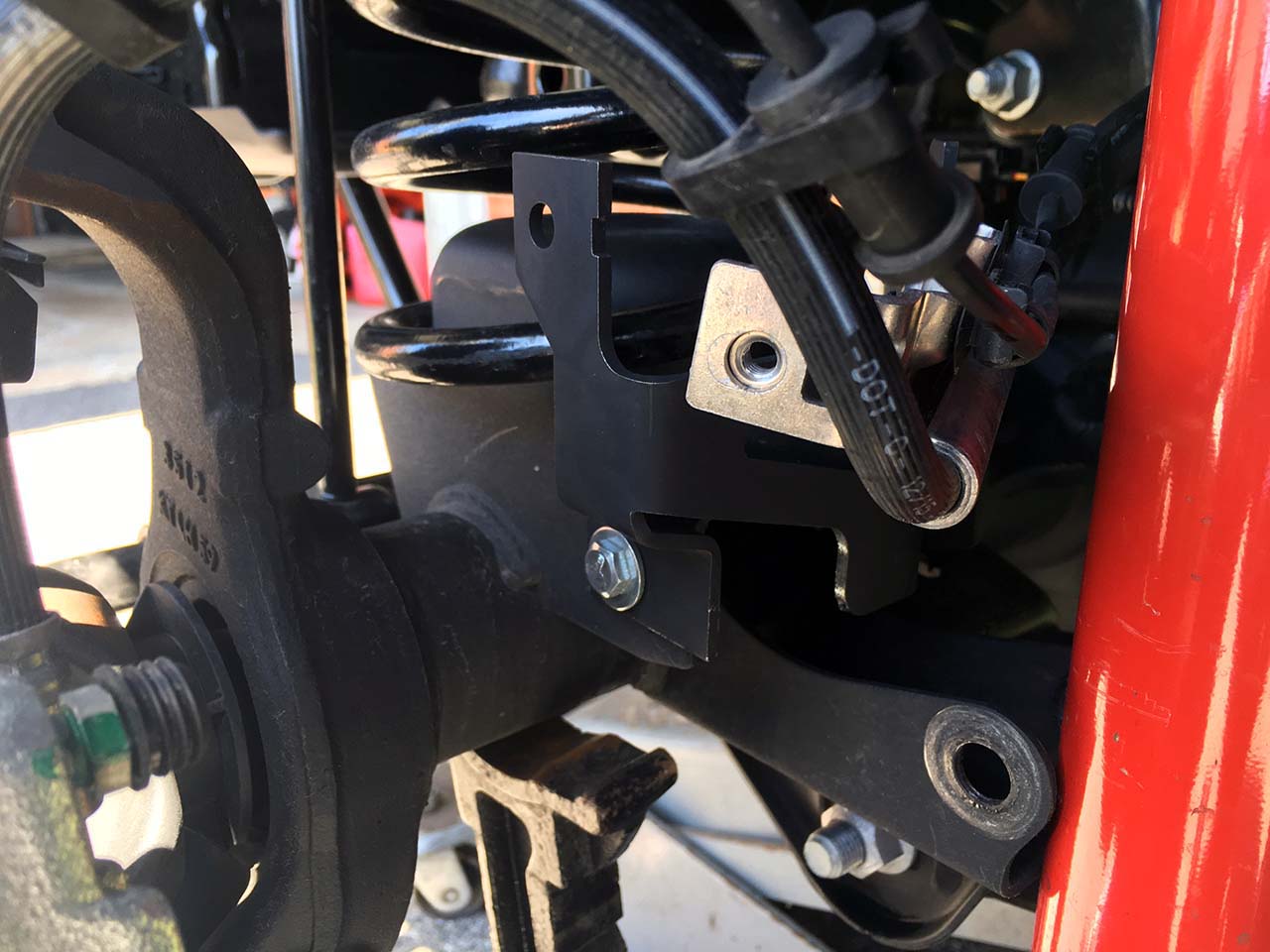

Bracket Installed

Bracket Installed

Shock Replaced

Shock Replaced

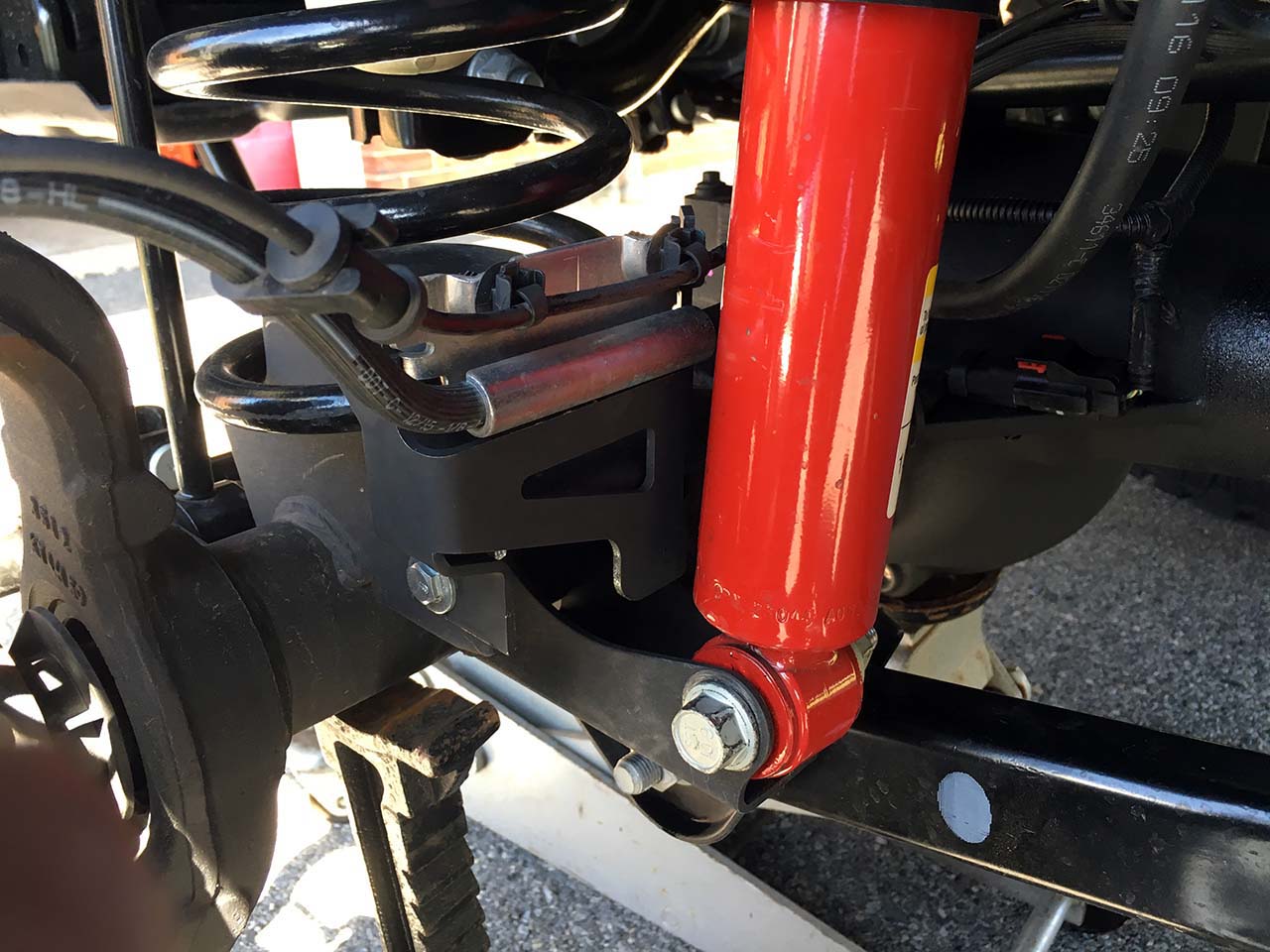

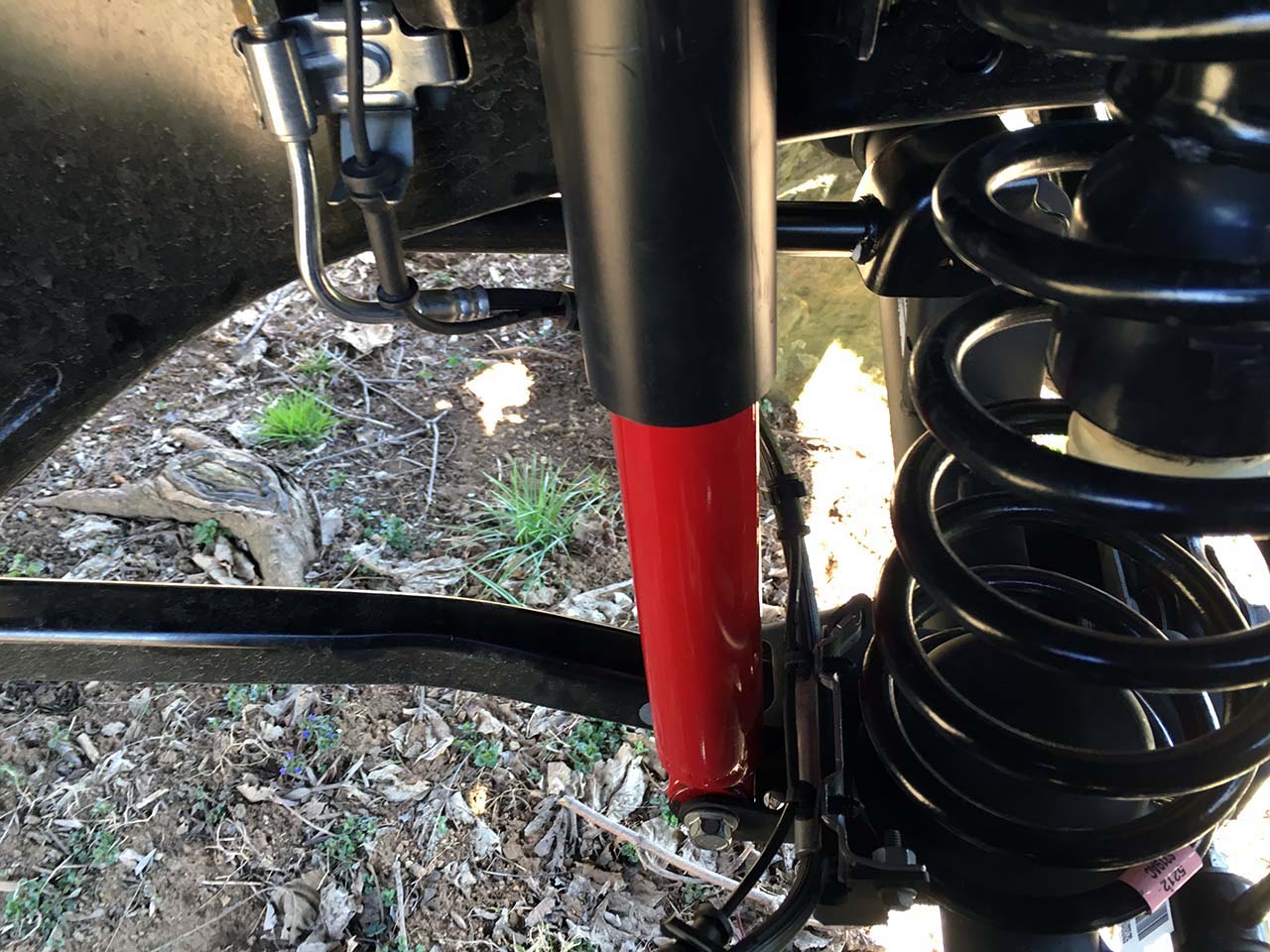

Suspension Extended

Suspension Extended

Install the new bracket into the original mount location.  A 1/4″ bolt with a nut will be required for each side.  Install the original bracket into the new bracket.  Install the original bolt.  Reinstall the bottom shock mount.  That’s it.
