TeraFlex
Low 231 HD 4:1 Transfer Case
Some information
provided by
TeraFlex

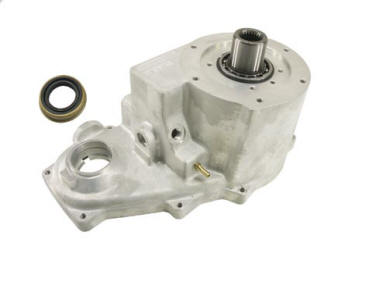

The Tera Low231 conversion
kit is the solution for providing Wranglers, Cherokees, and
Comanches with low crawl ratios. This kit provides
rock-crawling performance without affecting high range gears
for daily drivers, or the trip to and from the back country.
It provides a true 4.0:1 reduction through a 5 gear HD
planetary system. Every part in this kit is new, with no
core charges. Shift linkage and driveshaft length changes
are not necessary. The Tera Low231's high input torque
rating will handle extreme torque applications. Each Low231
is covered with our exclusive two-year warranty.
The Tera Low231 is compatible
with the 2WD Low-Range Shift kit (Part #2LOW231), the
TeraLow Extreme Short Shaft kit (Part #231ESS), and the
Short Shaft kit (Part #231SS). Note: Some Cherokees require
one-quarter inch to be removed from the end of the input
shaft in order to function properly. Please specify when
ordering. 241/242 t-cases: Call us for details on using our
low-range gearing in 241 and 242 transfer cases. Note:
Because these low-range gear sets increase torque by up to
50 percent, some large or high-performance engines may
contribute to premature drive train failure.
Part# LOW231fits 6cyl. manual
wranglers.
Part# LOW231A fits 4 & 6cyl. auto Wranglers 87-02.
Part# LOW231-21fits 4 cyl. Manual Wranglers & Cherokees.
Part# LOW231-23XJA fits XJ Cherokee 23 spline Automatics.
Part# LOW231-03+ fits 6cyl. auto Wranglers 2003+.
|
